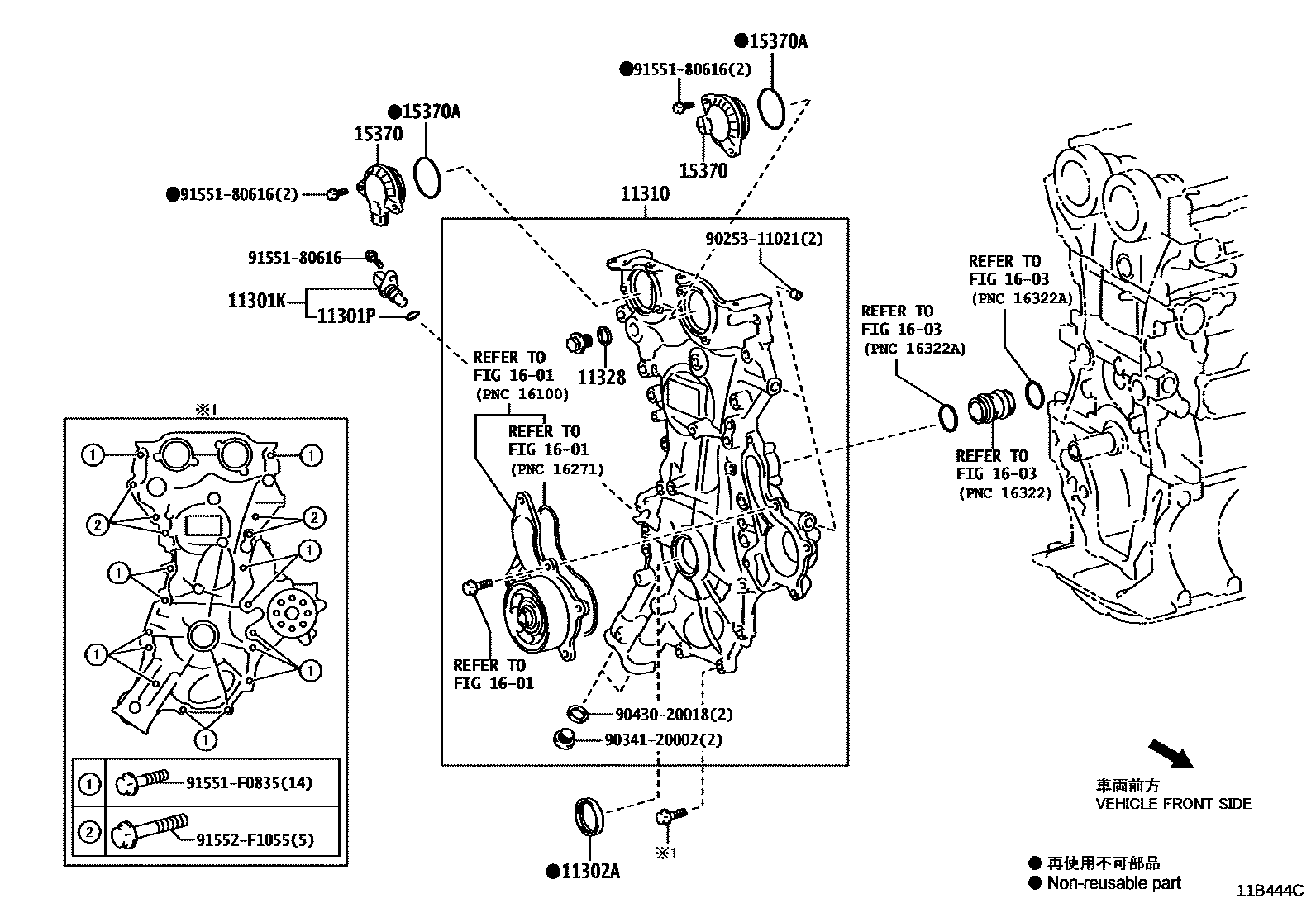

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301KSENSOR, CRANK POSITION

main90919-05079i8NRFTS..NGX10,50201610-201909

11301PO RING, CRANK POSITION SENSOR

main90301-14016i8NRFTS..NGX10,50201610-201909

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37090i2ZRFXE..ZYX10201909

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-36007i8NRFTS..NGX10,50201610-201909

main90311-38096i2ZRFXE..ZYX10201909

11310COVER ASSY, TIMING CHAIN

main11310-47081i8NRFTS..NGX10,50201610-201909

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-47010i8NRFTS..NGX10,50201610-201909

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-47010×2i8NRFTS..NGX10,50201610-201909

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-50003×2i8NRFTS..NGX10,50201610-201909

1601

1603

9025311021

main90253-11021

9034120002

main90341-20002

9043020018

main90430-20018

9155180616

main91551-80616

91551F0835

main91551-F0835

91552F1055

main91552-F1055

16 parts on this diagram · 2 diagrams in section
