Toyota 528220 — MIRROR

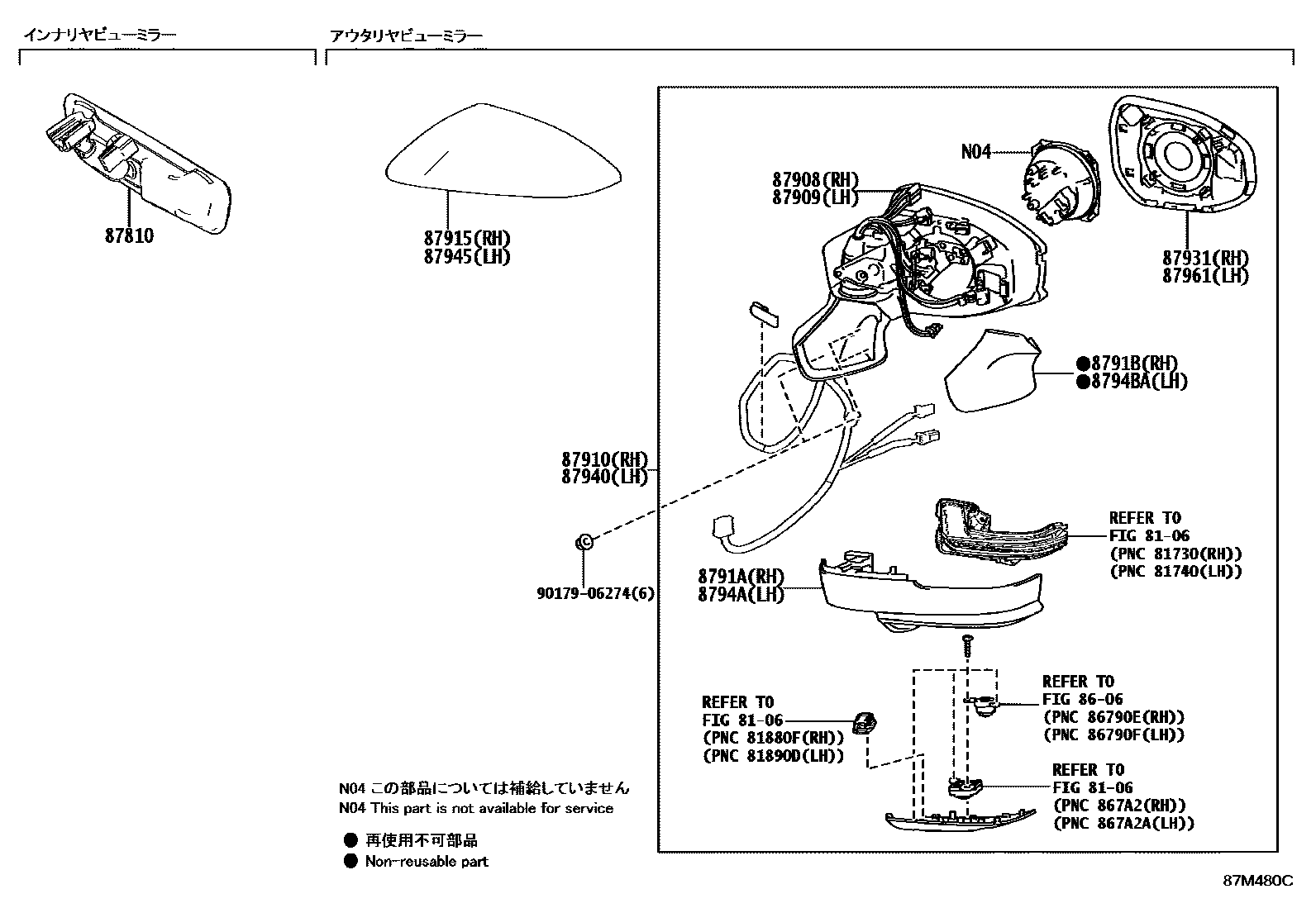

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

87908ACTUATOR ASSY, OUTER MIRROR, RH

87909ACTUATOR ASSY, OUTER MIRROR, LH

87910MIRROR ASSY, OUTER REAR VIEW, RH

87915COVER, OUTER MIRROR, RH

8791ACOVER, OUTER MIRROR, RH NO.2

8791BHANGER SUB-ASSY, OUTER MIRROR, RH

87931OUTER MIRROR, RH

87940MIRROR ASSY, OUTER REAR VIEW, LH

87945COVER, OUTER MIRROR, LH

8794ACOVER, OUTER MIRROR, LH NO.2

8794BACOVER, OUTER MIRROR, LH NO.3

87961MIRROR OUTER, LH

9017906274

16 parts on this diagram · 1 diagram in section

MIRROR for Toyota 528220

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota 528220. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
