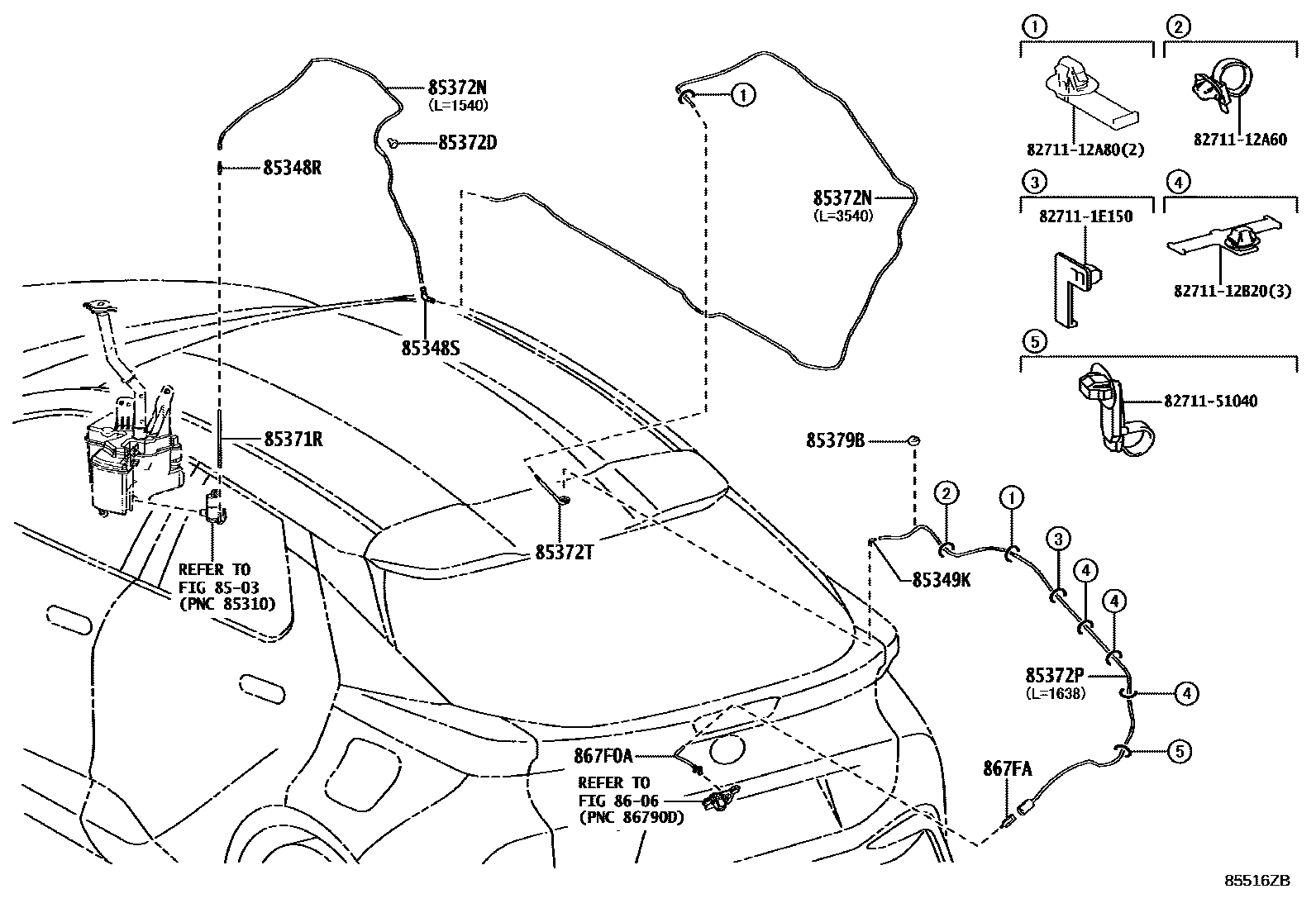

REAR WASHER

8503

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85349KJOINT, REAR WASHER ELBOW, NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372TGROMMET, WASHER

85379BGROMMET, WASHER, A

8606

867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1

867FAFILTER, CLEANER HOSE

8271112A60WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271151040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

18 parts on this diagram · 3 diagrams in section
