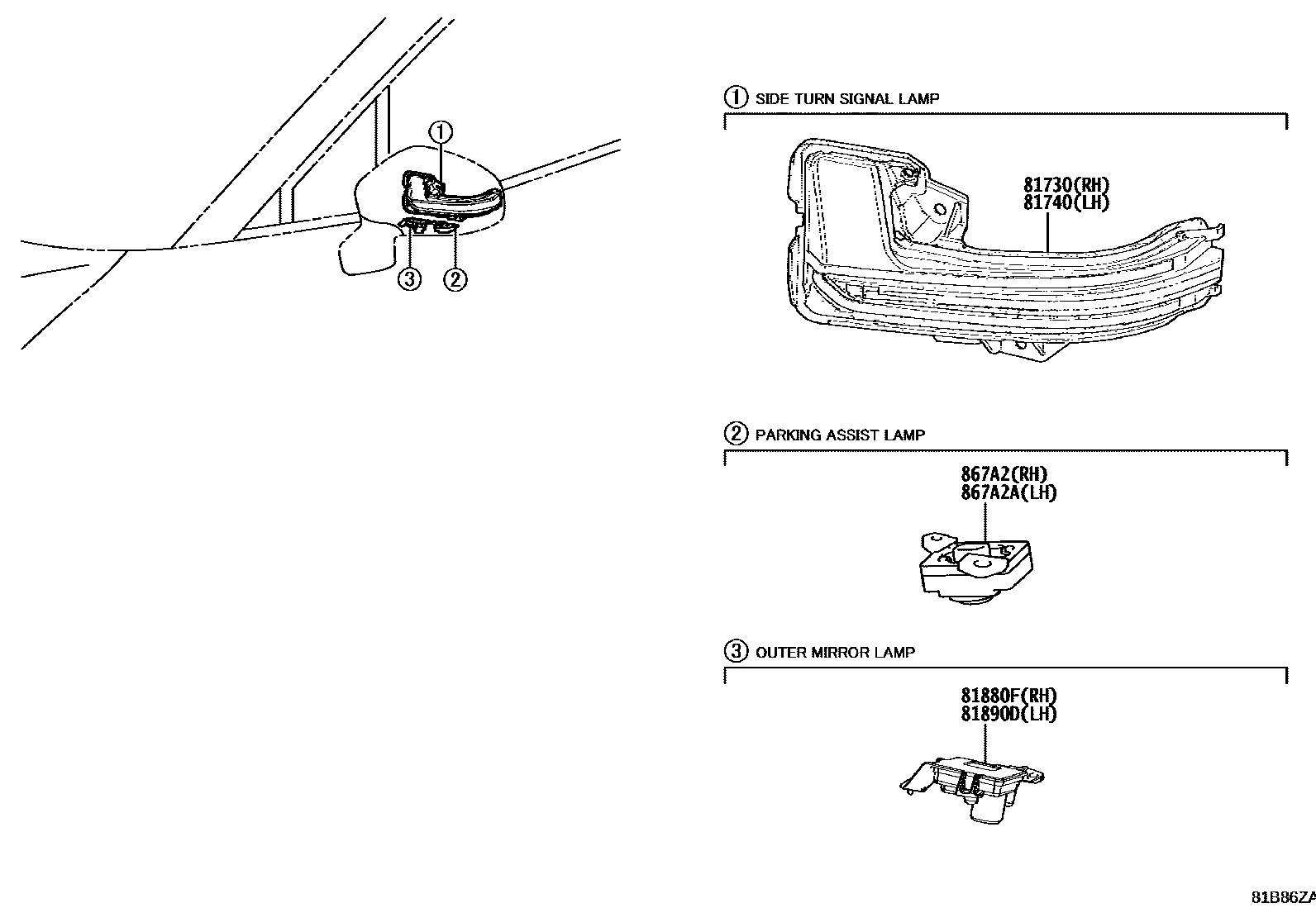

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-F4020iMAXH2#,ZYX20202310

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-F4020iMAXH2#,ZYX20202310

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-F4040iMAXH2#,ZYX20..LHD..(E,G,K); ZYX20..LHD..N202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

main81880-F4050iZYX20..N..ARL;MAXH2#,ZYX20..RHD..(E,G,K); ZYX20..RHD..N..EUR202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

81890DLAMP ASSY, OUTER MIRROR, LH

main81890-F4040iMAXH2#,ZYX20..LHD..(E,G,K); ZYX20..LHD..N202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

main81890-F4050iZYX20..N..ARL;MAXH2#,ZYX20..RHD..(E,G,K); ZYX20..RHD..N..EUR202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

867A2LIGHT, PARKING ASSIST, RH

main867A2-47010iMAXH2#,ZYX20..(E,G,K)..(EUR,TUR); MAXH20,25,ZYX20..ARL202310

PERIPHERAL MONITOR CAMERA-WITH(*PVM)

867A2ALIGHT, PARKING ASSIST, LH

main867A2-47020iMAXH2#,ZYX20..(E,G,K)..(EUR,TUR); MAXH20,25,ZYX20..ARL202310

PERIPHERAL MONITOR CAMERA-WITH(*PVM)

6 parts on this diagram · 1 diagram in section
