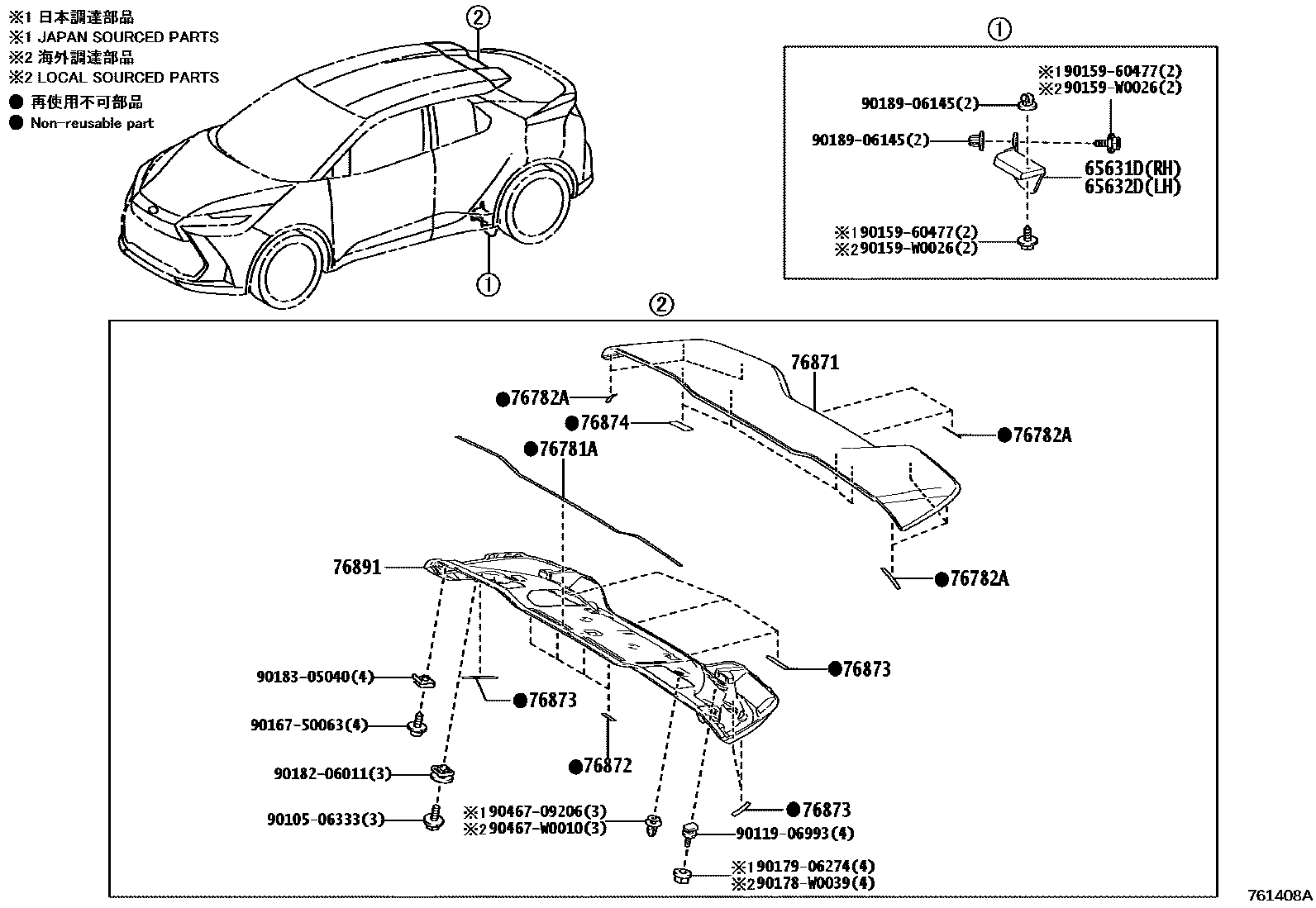

Toyota 528220 — MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76781ATAPE, REAR SPOILER, UPPER NO.1
76782ATAPE, REAR SPOILER, UPPER NO.2
76871SPOILER, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76891SPOILER, REAR NO.1
9010506333
9011906993
9015960477
90159W0026
9016750063
90178W0039
9017906274
9018206011
9018305040
9018906145
9046709206
90467W0010
21 parts on this diagram · 1 diagram in section
MUDGUARD & SPOILER for Toyota 528220
This section contains 21 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota 528220. Key components include: PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, TAPE, REAR SPOILER, UPPER NO.1, TAPE, REAR SPOILER, UPPER NO.2, SPOILER, REAR.
