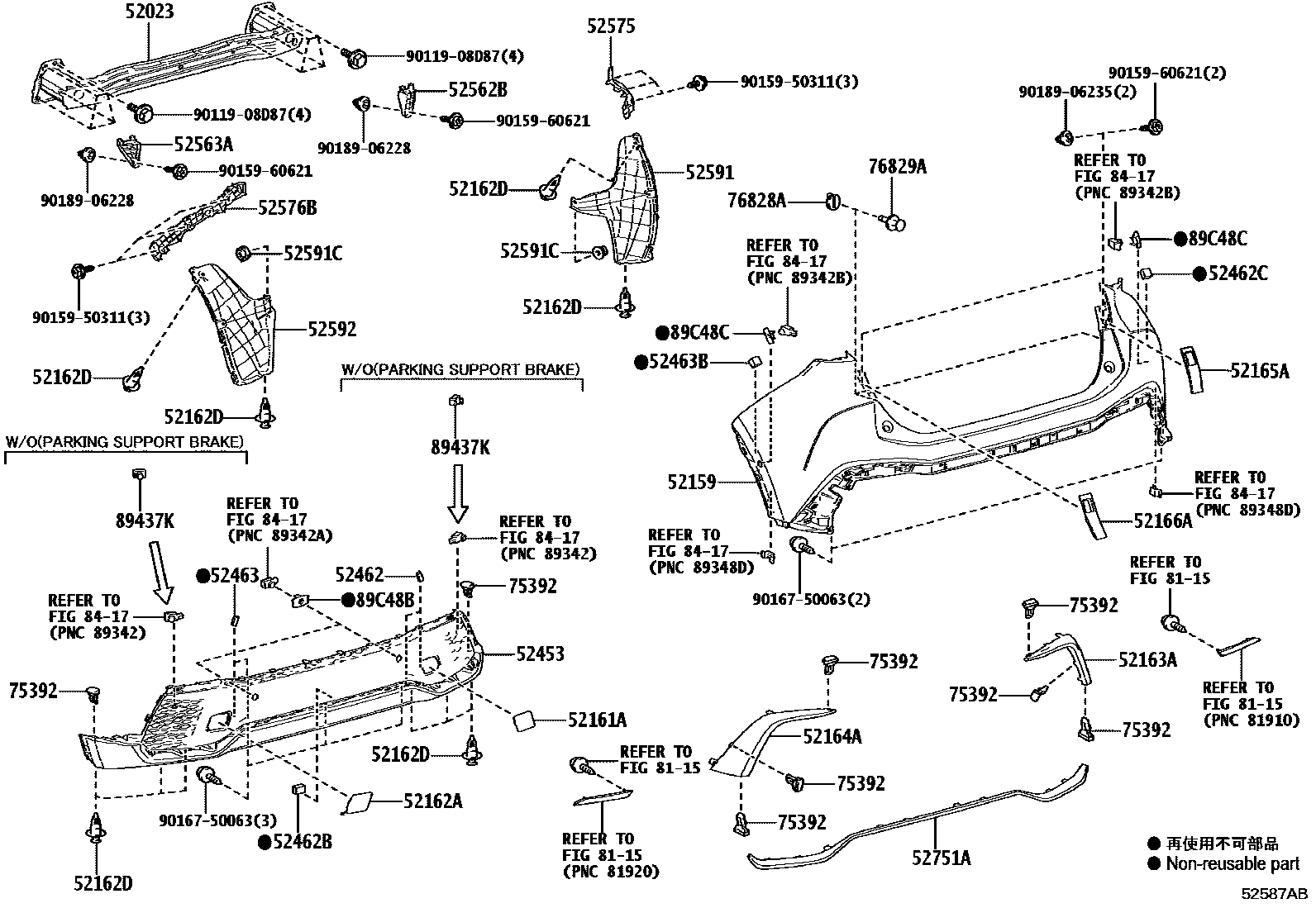

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52162DPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
52453GUARD, REAR BUMPER, CENTER
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52462BPAD, REAR BUMPER
52462CPAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52463BPAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576BRETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
52592SEAL, REAR BUMPER SIDE, LH
52751AMOULDING, REAR BUMPER, CENTER
75392RETAINER, OUTSIDE MOULDING
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115
8417
89437KCOVER, SENSOR
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SUPER WHITE 2,040 ,2MQ,LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089 ,2VP,LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&ADVANCED PARK-WITH,GRAY ME.,1G3 ,2NB,LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM),ASH GRAY ME.,2VF,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),SILVER ME.,1L0 ,2VU,LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM),PRECIOUS SILVER,2MR,LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM),BLACK,2MR ,2NB ,2TB ,2VF ,2VP ,2VU ,2XE ,2XX,2YB ,2YT ,2ZE ,M35,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),BLACK MC.,209,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),EMOTIONAL RED 2,2TB ,3U5,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM),METAL OXIDE CS.,M35,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),SULFUR ME.,2YT,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),DK. TEAL M.M.,2YB ,785,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION),DEEP AMETHYST M.M.,2XE ,9AH,LH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM),SUPER WHITE 2,040 ,2MQ,RH
PLATINUM WHITE PEARL MC.,089,RH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&ADVANCED PARK-WITH,GRAY ME.,1G3 ,2NB,RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&ADVANCED PARK-WITH,ASH GRAY ME.,2VF,RH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM),SILVER ME.,1L0 ,2VU,RH
PRECIOUS SILVER,2MR,RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK,2MR ,2NB ,2TB ,2VF ,2VP ,2VU ,2XE ,2XX ,2YB ,2YT ,2ZE ,M35,RH
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM),BLACK MC.,209,RH
EMOTIONAL RED 2,2TB ,3U5,RH
METAL OXIDE CS.,M35,RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM),SULFUR ME.,2YT,RH
DK. TEAL M.M.,2YB ,785,RH
DEEP AMETHYST M.M.,9AH,RH
9011908D87
main90119-08D87
9015950311
main90159-50311
9015960621
main90159-60621
9016750063
main90167-50063
9018906228
main90189-06228
9018906235
main90189-06235
37 parts on this diagram · 1 diagram in section
