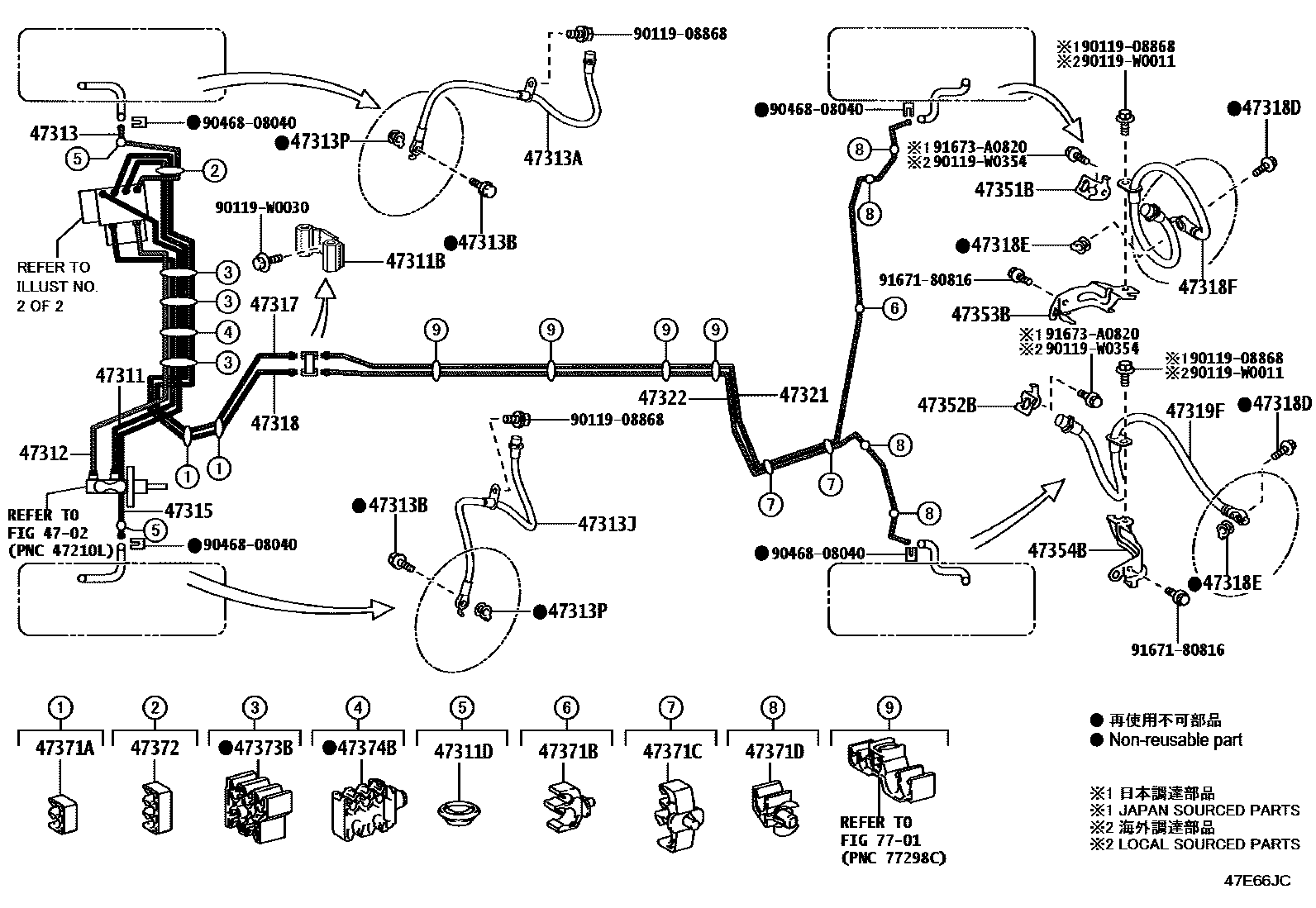

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02G30iMAXH2#,ZYX20..LHD202310

main47311-02G50iMAXH2#,ZYX20..RHD202310

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMAXH2#,ZYX20202310

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iMAXH2#,ZYX20202310

47312TUBE, FRONT BRAKE, NO.2

main47312-02E90iMAXH2#,ZYX20..LHD202310

main47312-02F10iMAXH2#,ZYX20..RHD202310

47313TUBE, FRONT BRAKE, NO.3

main47313-02G10iMAXH2#,ZYX20..LHD202310

main47313-02G90iMAXH2#,ZYX20..RHD202310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2066iMAXH2#,ZYX20202310

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iMAXH2#,ZYX20202310

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2067iMAXH2#,ZYX20202310

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iMAXH2#,ZYX20202310

47315TUBE, FRONT BRAKE, NO.5

main47315-02680iMAXH2#,ZYX20..LHD202310

main47315-02690iMAXH2#,ZYX20..RHD202310

47317TUBE, FRONT BRAKE, NO.7

main47317-02F80iMAXH2#,ZYX20..LHD202310

main47317-02F90iMAXH2#,ZYX20..RHD202310

47318TUBE, FRONT BRAKE, NO.8

main47318-02G00iMAXH2#,ZYX20..LHD202310

main47318-02G10iMAXH2#,ZYX20..RHD202310

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMAXH2#,ZYX20202310

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iMAXH2#,ZYX20202310

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2068iMAXH2#,ZYX20202310

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2069iMAXH2#,ZYX20202310

47321TUBE, REAR BRAKE, NO.1

main47321-F4011iMAXH20,25,ZYX20202310

main47321-F4070iMAXH21202401

47322TUBE, REAR BRAKE, NO.2

main47322-F4011iMAXH20,25,ZYX20202310

main47322-F4070iMAXH21202401

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-F4020iMAXH2#,ZYX20202310

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-F4020iMAXH2#,ZYX20202310

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-F4010iMAXH2#,ZYX20202310

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-F4010iMAXH2#,ZYX20202310

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91iMAXH2#,ZYX20202310

47371BCLAMP, BRAKE TUBE, NO.6

main77285-47110iMAXH20,25,ZYX20202310

main90464-00904iMAXH21202401

47371CCLAMP, BRAKE TUBE, NO.7

main77286-47050iMAXH20,25,ZYX20202310

main90949-01E10iMAXH21202401

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E10iMAXH20,25,ZYX20202310

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D92iMAXH2#,ZYX20..LHD202310

main90949-01E43iMAXH2#,ZYX20..RHD202310

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E40iMAXH2#,ZYX20..RHD202310

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E79iMAXH2#,ZYX20..LHD202310

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119W0011

main90119-W0011

90119W0030

main90119-W0030

90119W0354

main90119-W0354

9046808040

main90468-08040

9167180816

main91671-80816

91673A0820

main91673-A0820

38 parts on this diagram · 6 diagrams in section
