FUEL INJECTION SYSTEM

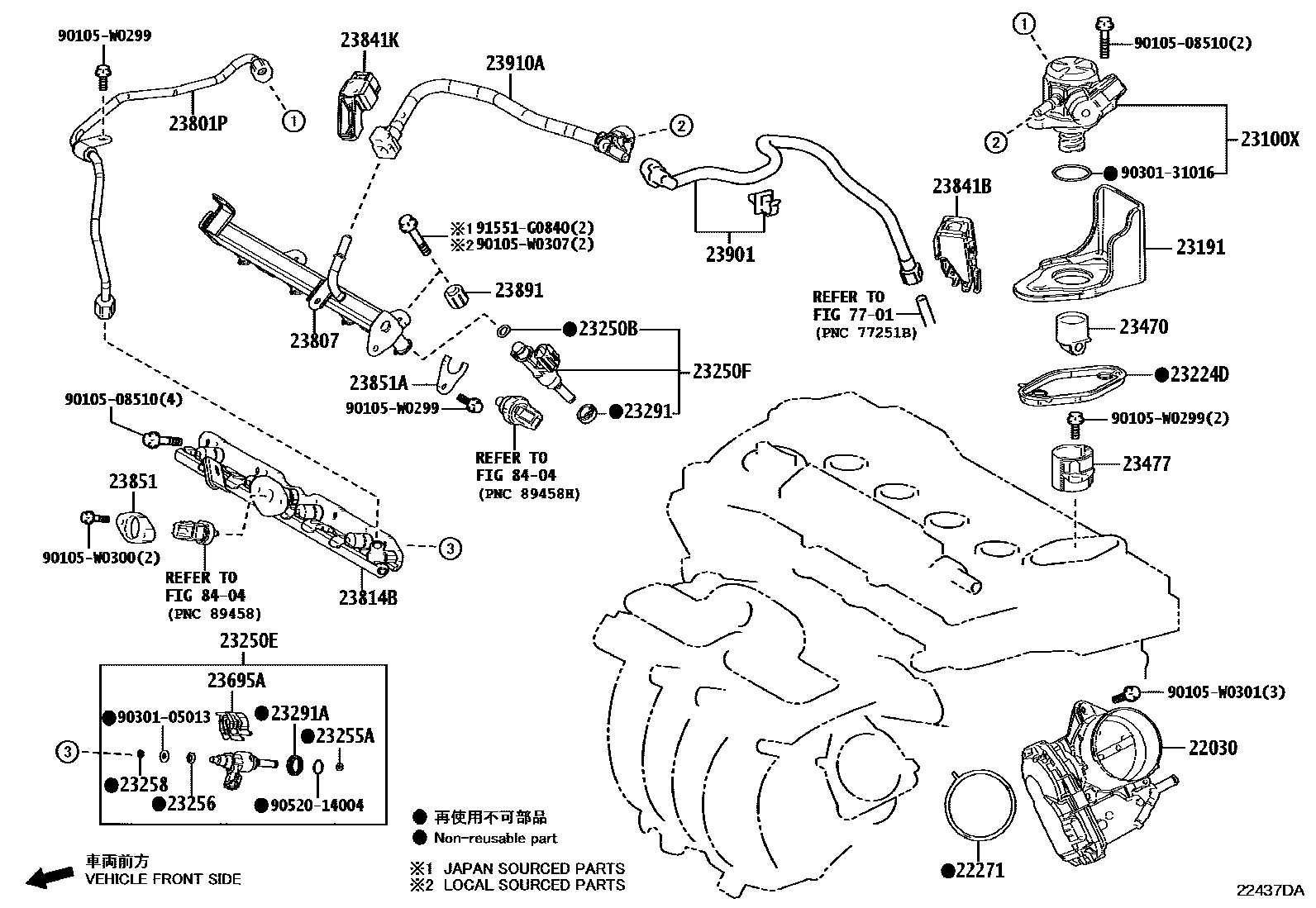

Parts diagram

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-F2040i202310

22271GASKET, THROTTLE BODY

main22271-24020i202310

main22271-37020i202310

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F2010i202310

23191FLANGE, FUEL PUMP

main23214-F2020i202310

23224DGASKET, FUEL PUMP SPACER

main23224-25011i202310

23250INJECTOR ASSY, FUEL

main23209-09370×4i202310

(L)

main23209-39295×4i202310

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202310

(J)

main90301-A0036×4i202310

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i202310

MARK 1,(J),REFER R/M

main23209-24010-02×4i202310

MARK 2,(J),REFER R/M

main23209-24010-03×4i202310

MARK 3,(J),REFER R/M

main23209-24010-04×4i202310

MARK 4,(J),REFER R/M

main23209-24010-05×4i202310

MARK 5,(J),REFER R/M

main23209-24010-06×4i202310

MARK 6,(J),REFER R/M

main23209-24010-07×4i202310

MARK 7,(J),REFER R/M

main23209-24010-08×4i202310

MARK 8,(J),REFER R/M

main23209-24010-09×4i202310

MARK 9,(J),REFER R/M

main23209-F2050-01×4i202310

MARK 1,(L),REFER R/M

main23209-F2050-02×4i202310

MARK 2,(L),REFER R/M

main23209-F2050-03×4i202310

MARK 3,(L),REFER R/M

main23209-F2050-04×4i202310

MARK 4,(L),REFER R/M

main23209-F2050-05×4i202310

MARK 5,(L),REFER R/M

main23209-F2050-06×4i202310

MARK 6,(L),REFER R/M

main23209-F2050-07×4i202310

MARK 7,(L),REFER R/M

main23209-F2050-08×4i202310

MARK 8,(L),REFER R/M

main23209-F2050-09×4i202310

MARK 9,(L),REFER R/M

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29185×4i202310

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202310

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202310

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-47010×4i202310

LIGHT BLUE

main23258-47030×4i202310

ORANGE

23291INSULATOR, INJECTOR VIBRATION

main23291-0D020×4i202310

main23291-23010×4i202310

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202310

23470LIFTER ASSY, FUEL PUMP

main23470-F2010i202310

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202310

(J)

main23477-F2060i202310

(L)

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202310

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202310

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i202310

main23814-37100i202310

23814BPIPE, FUEL DELIVERY

main23814-24011i202310

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37160i202310

23841KCLAMP, FUEL PIPE

main23841-25040i202310

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202310

(J)

main23851-F2050i202310

(L)

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202310

(J)

main23851-F2030i202310

(L)

23891SPACER, FUEL DELIVERY

main23891-24010×2i202310

23901TUBE SUB-ASSY, FUEL

main23901-37350i202310

main23901-F2120i202310

23910ATUBE SUB-ASSY, FUEL

main23901-24081i202310

(J)

main23901-F2130i202310

(L)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010508510

main90105-08510

90105W0299

main90105-W0299

90105W0300

main90105-W0300

90105W0301

main90105-W0301

90105W0307

main90105-W0307

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

38 parts on this diagram · 2 diagrams in section
