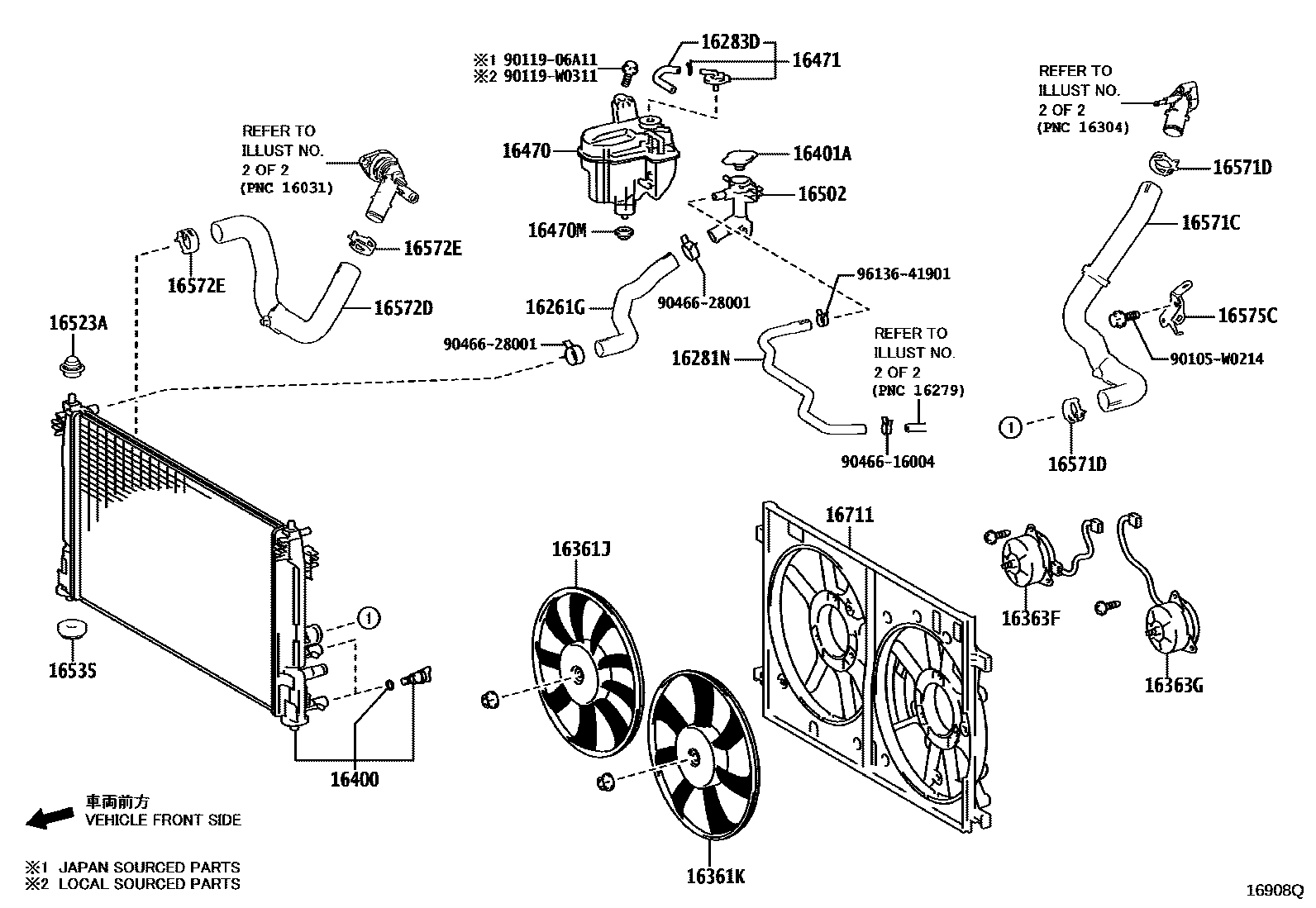

RADIATOR & WATER OUTLET
16281HOSE, WATER BY-PASS, NO.4
16281NHOSE, WATER BY-PASS, NO.4
(L)
(J)
16283HOSE, WATER BY-PASS, NO.6
(L)
(J)
16283DHOSE, WATER BY-PASS, NO.6
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16711SHROUD, FAN
90105W0214
main90105-W0214
9011906A11
main90119-06A11
90119W0311
main90119-W0311
9046616004
main90466-16004
9046628001
main90466-28001
9613641901
main96136-41901
32 parts on this diagram · 5 diagrams in section
