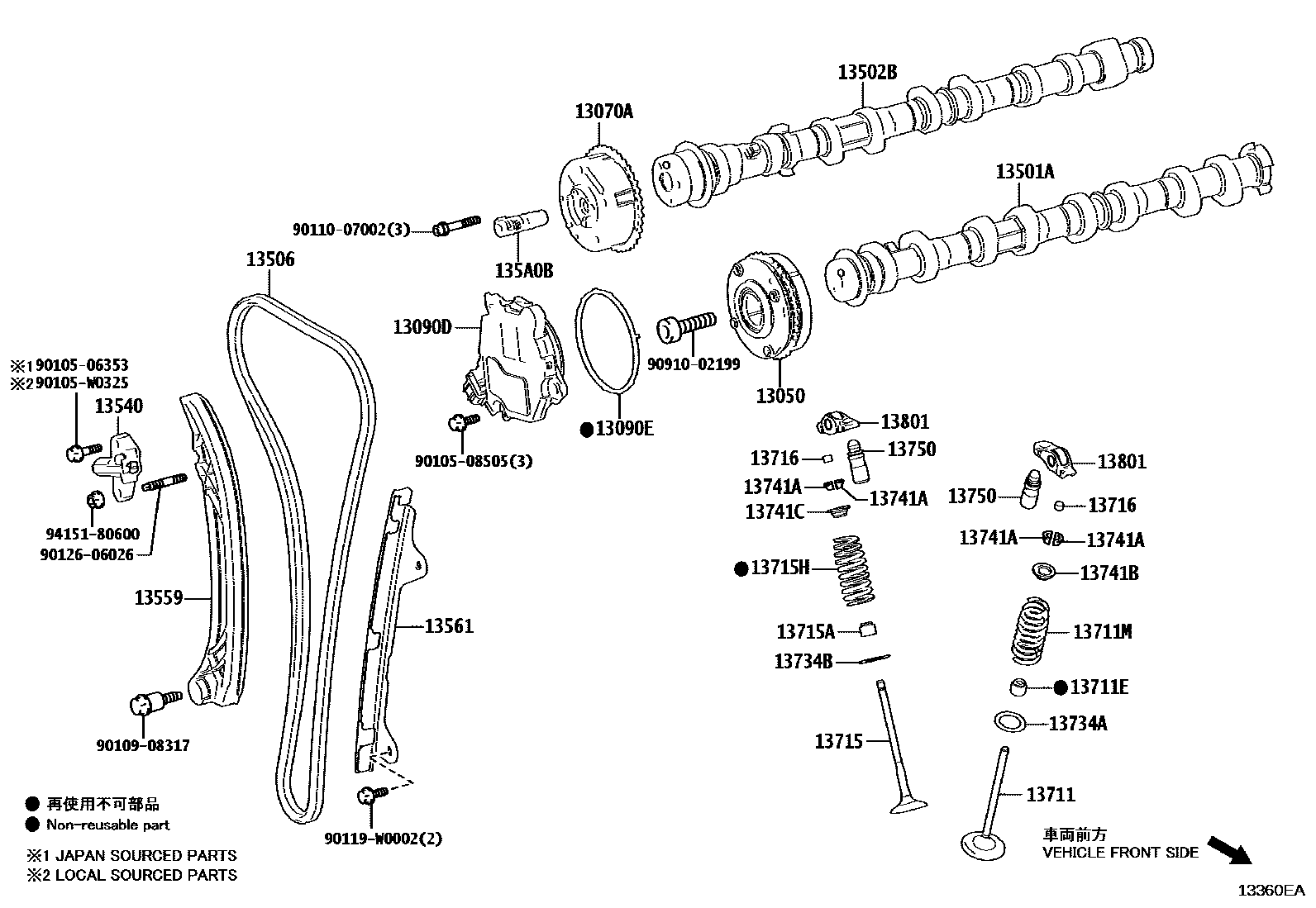

CAMSHAFT & VALVE
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(J)
(L)
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13506CHAIN SUB-ASSY
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
MARK=UK
NO MARK
135A0BVALVE ASSY, CAMSHAFT TIMING
13711VALVE, INTAKE
(L)
(J)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
(L)
(J)
(J)
(L)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
(L)
(J)
(J)
(L)
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9010506353
main90105-06353
9010508505
main90105-08505
90105W0325
main90105-W0325
9010908317
main90109-08317
9011007002
main90110-07002
90119W0002
main90119-W0002
9012606026
main90126-06026
9091002199
main90910-02199
9415180600
main94151-80600
36 parts on this diagram · 2 diagrams in section
