NAVIGATION & FRONT MONITOR DISPLAY

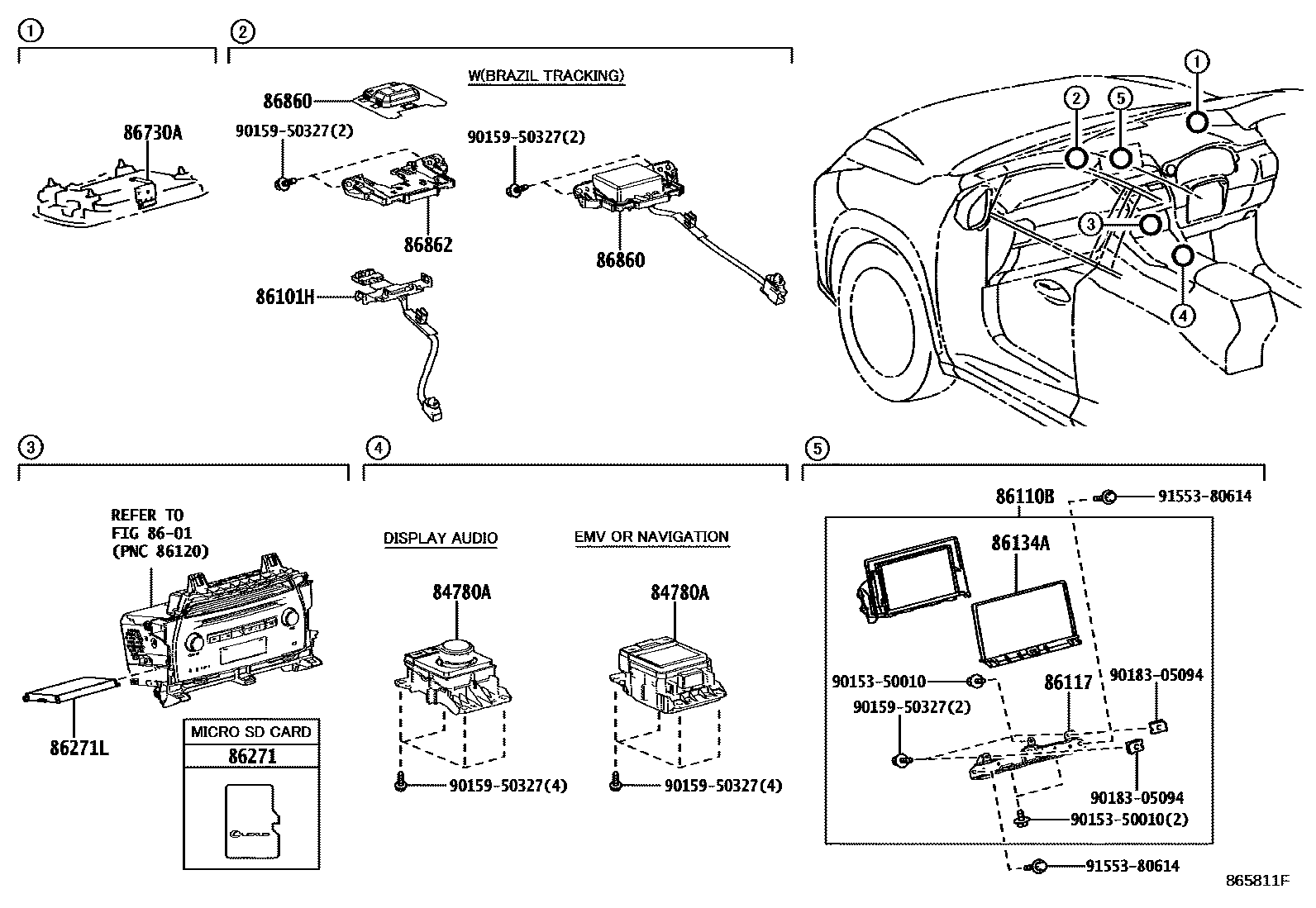

Parts diagram
84780ACONTROLLER ASSY, REMOTE OPERATION
main84780-78060i201407-201505
main84780-78061i201506-201709
main84780-78110supersedes 84780-78120i201709
AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER
main84780-78010i201509-201709
DOMINICA SPEC&NAVIGATION SYSTEM-WITHOUT(EMV ONLY)
main84780-78040supersedes 84780-78120i201407-201709
NAVIGATION SYSTEM-WITH(SD NAVIGATION)
8601
86101HCORD SUB-ASSY, ANTENNA
main86101-78550i201410-201709
main86101-78G70i201910
86110BMULTI-DISPLAY ASSY
main86110-78020i201407-201607
PIONEER
sub86110-78060
main86110-78021i201607-201702
PIONEER
main86110-78022i201703-201709
PIONEER
main86110-78050supersedes 86110-78041i201709
PANASONIC,AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
main86117-78010i201407-201709
main86117-78050supersedes 86117-78040i201709
AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER
86134APARTS, MULTI-DISPLAY
main86134-78020i201407-201607
main86134-78021i201607-201709
86271DISC, DISC PLAYER
main86807-11042i201910-202009
INDONESIA SPEC&AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER,DVD
sub86807-11043
main86271-76040i201407-201408
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-76041supersedes 86807-11043i201409-201509
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-76042supersedes 86807-11043i201509-201609
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-76045
main86271-76043supersedes 86807-11043i201609-201709
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-76044
main86271-78041i201412-201507
BRAZIL SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SDCARD
main86271-78042i201507-201607
BRAZIL SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SDCARD
sub86271-48354
main86271-78043i201608-201707
BRAZIL SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SDCARD
main86271-78044i201708-201709
BRAZIL SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SDCARD
sub86271-48353
main86271-78061i201407-201507
PHILIPPINE SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICROSD CARD
main86271-78062i201507-201607
PHILIPPINE SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICROSD CARD
sub86271-48374
main86271-78063i201608-201707
PHILIPPINE SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICROSD CARD
main86271-78064i201708-201709
BRUNEI SPEC&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-48373
main86271-78071i201407-201507
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-78072i201507-201607
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-48333
main86271-78073i201608-201707
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-78074i201708-201709
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-48333
main86271-78081i201407-201507
SOUTH AFRICA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-78082i201507-201607
SOUTH AFRICA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-48394
main86271-78083i201607-201707
SOUTH AFRICA SPEC&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86271-78084i201708-201709
SOUTH AFRICA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86271-48393
main86807-0W260i201709-201804
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W261i201805-201809
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W262i201810-201904
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W263i201905-201909
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W264i201910-202004
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W265i202005-202009
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W266i202010-202104
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
main86807-0W267i202105
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&MAP DISC(DOP)-WITH,DVD
sub86807-0W268
main86807-11010i201709-201807
MALAYSIA SPEC,DVD
main86807-11011i201808-201909
MALAYSIA SPEC,DVD
main86807-11012i201910-202006
MALAYSIA SPEC,DVD
main86807-11013i202007-202106
MALAYSIA SPEC,DVD
main86807-11014i202107
MALAYSIA SPEC,DVD
sub86807-11015
main86807-11030i201709-201801
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11031i201801-201807
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11032i201808-201907
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11033i201908-202006
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11034i202007-202106
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11035i202107
NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
sub86807-11036
main86807-11050i201709-201809
HONG KONG SPEC,DVD
main86807-11051i201810-201909
HONG KONG SPEC,DVD
main86807-11052i201910-202009
HONG KONG SPEC,DVD
main86807-11053i202010
HONG KONG SPEC,DVD
sub86807-11055
main86807-11060i201709-201712
SOUTH AFRICA SPEC,DVD
main86807-11061i201801-201807
SOUTH AFRICA SPEC,DVD
main86807-11062i201808-201907
SOUTH AFRICA SPEC,DVD
main86807-11063i201908-202006
SOUTH AFRICA SPEC,DVD
main86807-11064i202007-202106
SOUTH AFRICA SPEC,DVD
main86807-11065i202107
SOUTH AFRICA SPEC,DVD
sub86807-11066
main86807-11070i201805-201807
BRAZIL SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11071i201808-201907
BRAZIL SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11072i201908-202006
PARAGUAY SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11073i202007-202106
BRAZIL SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
main86807-11074i202107
BRAZIL SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY),DVD
sub86807-11075
main86845-0W020i201512-201604
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W021i201605-201609
NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
main86845-0W022i201610-201704
NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86845-0W024
main86845-0W023i201705-201709
NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD
sub86845-0W024
main86845-0W052i201410-201411
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W053i201412-201509
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W054i201510-201512
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W055i201605-201609
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W056i201610-201704
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
main86845-0W057i201705-201709
NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAP DISC(DOP)-WITH,MICRO SD CARD
sub86845-0W058
86271LHARD DISC
main86271-53360i201410-201709
AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)
86730AMICROPHONE ASSY, TELEPHONE
main86730-53070i201407-201709
main86730-53080i201407-201709
86860ANTENNA ASSY, NAVIGATION
main86860-78010i201410-201709
main86880-52020i201910
main86880-0W090i201412-201709
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(HORN & BRAZIL TRACKING)&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)
86862BRACKET, NAVIGATION ANTENNA
main86862-76050i201810
main86862-78010i201410-201709
9015350010
main90153-50010
9015950327
main90159-50327
9018305094
main90183-05094
9155380614
main91553-80614

15 parts on this diagram · 2 diagrams in section
