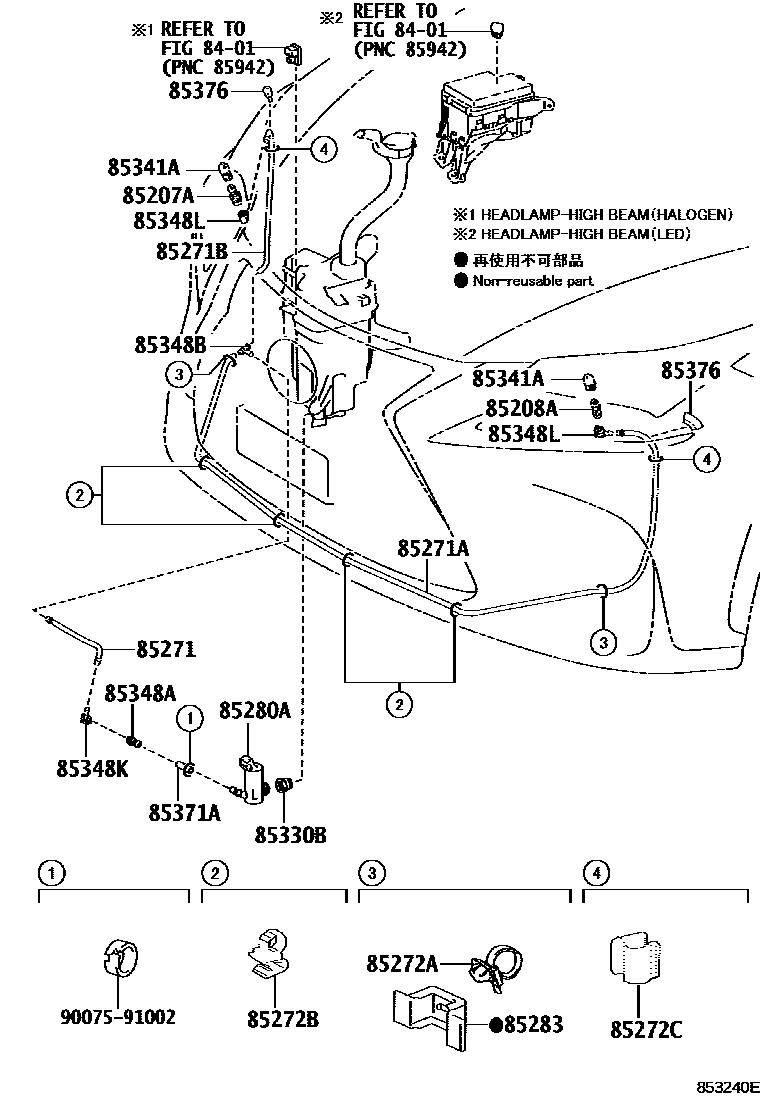

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=120,HEADLAMP CLEANER-WITH
L=180,HEADLAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=2150,HEADLAMP CLEANER-WITH
L=1800,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=280,HEADLAMP CLEANER-WITH
L=400,HEADLAMP CLEANER-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85272CCLAMP, HEADLAMP CLEANER, NO.3
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
MALAYSIA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH
SOUTH AFRICA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH
85283BRACKET, HEADLAMP CLEANER WASHER
F SPORT*(F)&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)&CLEARANCE & BACK SONAR-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
SOUTH AFRICA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,RH
HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083,RH
HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH
HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,RH
HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH
HEADLAMP CLEANER-WITH,BLACK,212,RH
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,RH
HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,RH
HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,RH
HEADLAMP CLEANER-WITH,FIRE AGATE M.M.,4V3,RH
HEADLAMP CLEANER-WITH,AMBER CS.,4X2,RH
HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,4W7,RH
HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,RH
HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,RH
HEADLAMP CLEANER-WITH,BLUE ME.,8U1,RH
HEADLAMP CLEANER-WITH,METEOR BLUE M.M.,8W3,RH
HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,RH
HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,8X1,RH
HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,RH
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,LH
HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083,LH
HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH
HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH
HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,LH
HEADLAMP CLEANER-WITH,BLACK,212,LH
HEADLAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,LH
HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,LH
HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,LH
HEADLAMP CLEANER-WITH,FIRE AGATE M.M.,4V3,LH
HEADLAMP CLEANER-WITH,AMBER CS.,4X2,LH
HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,4W7,LH
HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,LH
HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,LH
HEADLAMP CLEANER-WITH,BLUE ME.,8U1,LH
HEADLAMP CLEANER-WITH,METEOR BLUE M.M.,8W3,LH
HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,LH
HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,8X1,LH
HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
SOUTH AFRICA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,MACAO SPEC&HEADLAMP CLEANER-WITH
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
9007591002
main90075-91002
20 parts on this diagram · 2 diagrams in section
