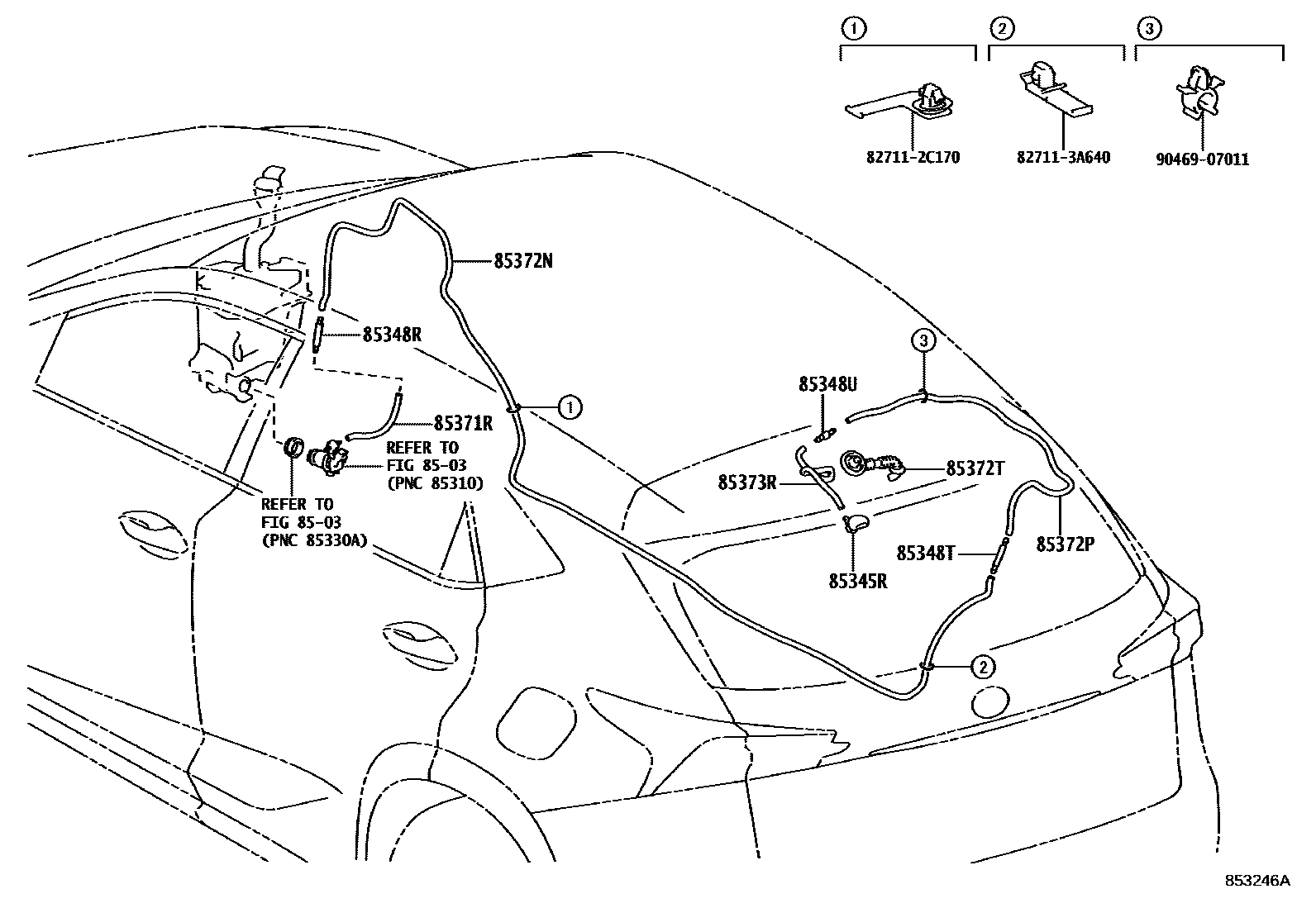

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

sub85391-42030

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iAGZ1#,AYZ1#,ZGZ1#201407-201709

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150iAGZ1#,AYZ1#,ZGZ1#201407-201709

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iAGZ1#,AYZ1#,ZGZ1#201407-201709

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAGZ1#,AYZ1#..ARL201407-201709

L=1450(*H,L=200),PHILIPPINE SPEC

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62130iAGZ1#,AYZ1#,ZGZ1#201407-201709

L=3583

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62131iAGZ1#,AYZ1#,ZGZ1#201407-201709

L=1397

85372TGROMMET, WASHER

main85373-44010iAGZ1#,AYZ1#,ZGZ1#201407-201709

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAGZ1#,AYZ1#,ZGZ1#201407-201709

L=1450(*H,L=460)

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

9046907011

main90469-07011

13 parts on this diagram · 1 diagram in section
