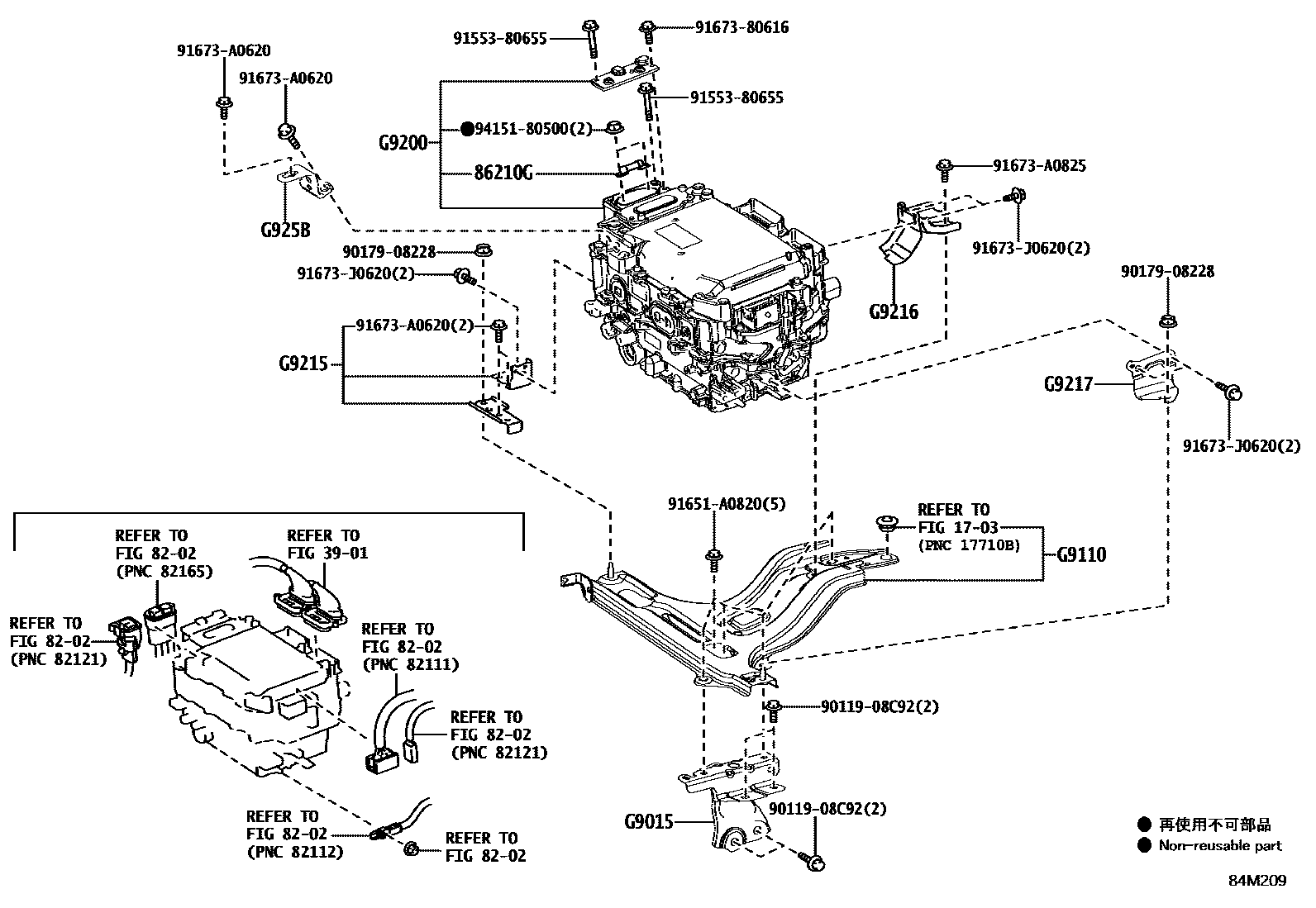

HEV INVERTER

0001 1 0002 1

1703

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iAYZ1#201407-201709

G9015BRACKET SUB-ASSY, INVERTER, NO.2

mainG901578010iAYZ1#201407-201709

G9110BRACKET ASSY, INVERTER

mainG911048020iAYZ1#201407-201709

G9200INVERTER ASSY, W/CONVERTER

mainG92A042040iAYZ10201709

mainG92A042050iAYZ15201709

mainG92A058020iAYZ15201411-201504

mainG92A078020iAYZ10201407-201504

mainG92A078030iAYZ15201407-201410

G9215BRACKET, INVERTER, NO.2

mainG921548060iAYZ1#201407-201709

G9216BRACKET, INVERTER, NO.3

mainG921678010iAYZ1#201709

G9217BRACKET, INVERTER, NO.4

mainG921748150iAYZ1#201407-201709

G925BBRACKET, INVERTER, NO.6

mainG925B48040iAYZ10201709

mainG925B78010iAYZ15201709

9011908C92

main90119-08C92

9017908228

main90179-08228

9155380655

main91553-80655

91651A0820

main91651-A0820

9167380616

main91673-80616

91673A0620

main91673-A0620

91673A0825

main91673-A0825

91673J0620

main91673-J0620

9415180500

main94151-80500

20 parts on this diagram · 2 diagrams in section
