EPC Data

LOCK CYLINDER SET

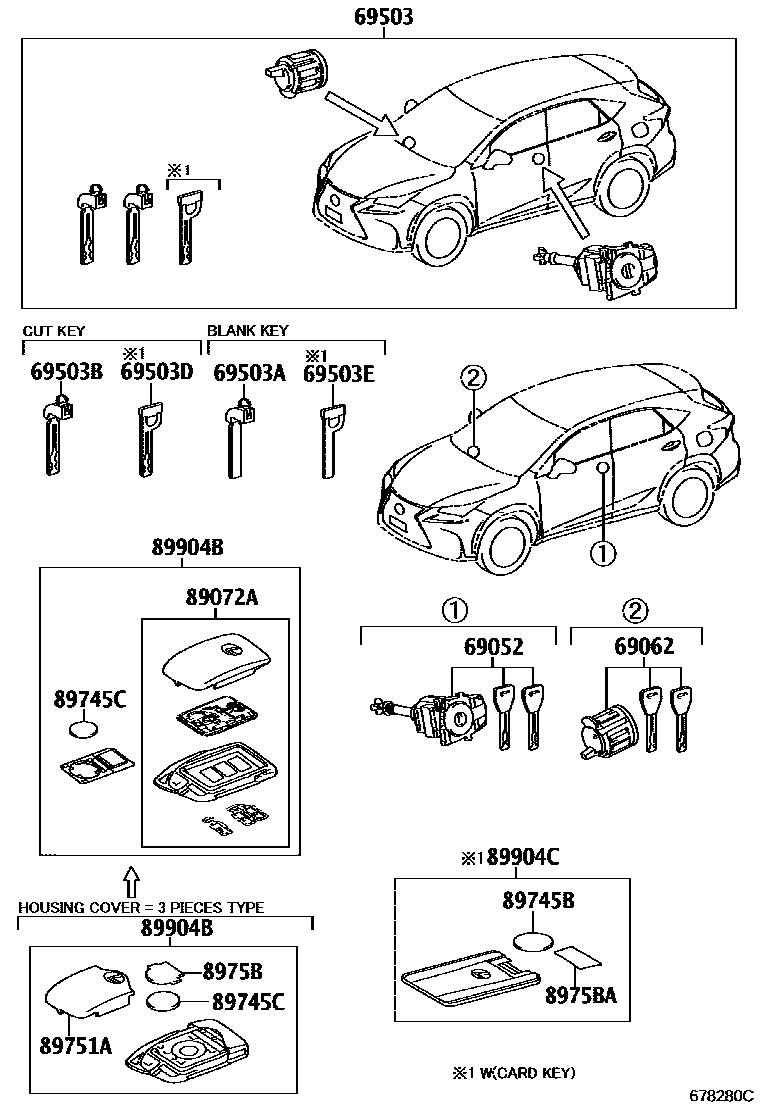

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-78010i201407-201411
main69052-78011i201412-201709
main69052-78012i201905
main69052-78020i201407-201411
main69052-78021i201412-201709
main69052-78022i201905-202004
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-50160i201709
69503CYLINDER SET, LOCK
main69005-78071i201412-201709
main69005-78072i201905
main69005-78040supersedes 69005-78030i201407-201411
CARD KEY-WITH
main69005-78041supersedes 69005-78031i201412-201709
CARD KEY-WITH
main69005-78042supersedes 69005-78032i201905
CARD KEY-WITH
main69005-78060supersedes 69005-78050i201407-201411
CARD KEY-WITH
main69005-78061supersedes 69005-78051i201412-201709
CARD KEY-WITH
main69005-78062supersedes 69005-78052i201905
CARD KEY-WITH
main69005-78080supersedes 69005-78070i201407-201411
CARD KEY-WITH
main69005-78081i201709-201905
CARD KEY-WITH
main69005-78082supersedes 69005-78072i201905-202004
CARD KEY-WITH
69503AKEY, BLANK
main69515-30380i201709-202004
MASTER KEY,W(*68)
69503BKEY, CUT
main69515-30370×2i201709-202004
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
main69515-30330i201709
MASTER KEY,CARD KEY-WITH
69503EKEY, BLANK(CARD KEY)
main69515-30350i201709
MASTER KEY
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-78050×2i201412-201509
main89072-78230×2i201509-201709
main89072-48B80×2supersedes 89072-78210i201509-201709
HONG KONG SPEC
main89072-48B90×2supersedes 89072-78210i201509-201709
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-48C70×2i201709
HONG KONG SPEC
main89072-48C80×2i201709
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89072-48F90×2supersedes 89072-78590i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-48G40×2supersedes 89072-48G50i202007
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
main89072-48G60×2supersedes 89072-48G70i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-48G80×2supersedes 89072-78590i202007
THAILAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-48J00×2i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-48J60×2supersedes 89072-78610i202007
BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89072-78040×2supersedes 89072-78030i201412-201509
BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78060×2i201412-201509
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
main89072-78070×2supersedes 89072-78030i201412-201509
HONG KONG SPEC
main89072-78080×2supersedes 89072-78030i201412-201509
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78100×2supersedes 89072-78090i201412-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78140×2supersedes 89072-78130i201407-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78160×2supersedes 89072-78150i201410-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78170×2supersedes 89072-78130i201407-201509
HONG KONG SPEC
main89072-78180×2supersedes 89072-78130i201407-201509
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78200×2supersedes 89072-78190i201407-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78220×2supersedes 89072-78210i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78240×2supersedes 89072-78230i201709-202004
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78270×2supersedes 89072-78260i201509-201709
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78290×2supersedes 89072-78280i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78310×2supersedes 89072-78300i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89072-78340×2supersedes 89072-78280i201709-202007
THAILAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
89745BBATTERY, TRANSMITTER(CARD KEY)
main89745-50030i201709
CR2412,THAILAND SPEC&CARD KEY-WITH
89745CBATTERY, TRANSMITTER
main89745-45010i201407-201709
CR2032
main89745-50020i201709
CR2032
89751ACOVER, TRANSMITTER HOUSING
main89751-48290×2i201709
BRUNEI SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89751-53150×2i201412-201509
main89751-48370×2i201709
BRUNEI SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89751-53080×2i201412-201509
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89751-53090×2i201407-201509
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89751-53101×2i201412-201509
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub89751-53102
main89751-53120×2i201412-201509
SOUTH AFRICA SPEC
main89751-53130×2i201407-201509
SOUTH AFRICA SPEC
main89751-78010×2i201407-201509
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
8975BCOVER, TRANSMITTER BATTERY HOUSING
main8975B-33010×2i201407-201709
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
main8975B-50020i201709-202007
INDONESIA SPEC&CARD KEY-WITH
main8975B-50030i202007
IRAQ SPEC&CARD KEY-WITH
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-78140×2i201412-201509
main89904-78480×2i201509-201709
main89904-48V80×2supersedes 89904-78G30i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-48W30×2supersedes 89904-48W40i202007
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
main89904-48W50×2supersedes 89904-48W60i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-48W70×2supersedes 89904-78G30i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-48W90×2supersedes 89904-48X00i202007
THAILAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-48X10×2i202007
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-48X20×2i202007
HONG KONG SPEC
main89904-48X30×2i202007
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-48X40×2i202007
HONG KONG SPEC
main89904-48Z40×2supersedes 89904-48X00i202007
BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-78070×2supersedes 89904-78180i201412-201509
BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78100×2supersedes 89904-78060i201412-201509
SOUTH AFRICA SPEC
main89904-78110×2supersedes 89904-78060i201412-201509
SOUTH AFRICA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78120×2supersedes 89904-78060i201412-201509
BRUNEI SPEC
main89904-78130×2i201412-201509
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78150×2i201412-201509
SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
main89904-78160×2supersedes 89904-78060i201412-201509
HONG KONG SPEC
main89904-78170×2supersedes 89904-78060i201412-201509
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78190×2supersedes 89904-78180i201412-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78200×2i201412-201509
JORDAN SPEC
main89904-78210×2i201412-201509
JORDAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78250×2supersedes 89904-78240i201407-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78280×2i201407-201509
SOUTH AFRICA SPEC
main89904-78290×2i201407-201509
SOUTH AFRICA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78300×2supersedes 89904-78360i201407-201509
BRUNEI SPEC
main89904-78310×2supersedes 89904-78360i201407-201509
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78330×2supersedes 89904-78320i201410-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78340×2supersedes 89904-78240i201407-201509
HONG KONG SPEC
main89904-78350×2supersedes 89904-78240i201407-201509
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78370×2supersedes 89904-78360i201407-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78390×2supersedes 89904-78380i201407-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78410×2supersedes 89904-78400i201412-201509
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78420×2i201412-201509
MALAYSIA SPEC
main89904-78430×2i201412-201509
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78440×2i201407-201509
MALAYSIA SPEC
main89904-78450×2i201407-201509
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78470×2i201709-201805
BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-78490×2supersedes 89904-78480i201509-201709
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78520×2i201709-202007
HONG KONG SPEC
main89904-78530×2i201709-202007
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-78550×2supersedes 89904-78540i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78560×2i201709-201808
IRAN SPEC
main89904-78561×2i201809-202007
IRAN SPEC
sub89904-78562
main89904-78570×2supersedes 89904-78540i201709-201808
BRUNEI SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78571×2i201809-202007
EGYPT SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub89904-78572
main89904-78580×2supersedes 89904-78460i201509-201709
MALAYSIA SPEC
main89904-78590×2supersedes 89904-78460i201509-201706
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78591×2supersedes 89904-78460i201709-202007
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78620×2i201709-202007
JORDAN SPEC
main89904-78630×2i201709-202007
JORDAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78650×2supersedes 89904-78640i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78670×2supersedes 89904-78660i201509-201709
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78690×2supersedes 89904-78680i201709-202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78720×2supersedes 89904-78660i201509-201709
HONG KONG SPEC
main89904-78730×2i201709-202007
HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78750×2supersedes 89904-78740i201509-201709
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78760×2supersedes 89904-78820i201509-201709
BRUNEI SPEC
main89904-78761×2i201809-202007
BRUNEI SPEC
sub89904-78762
main89904-78770×2supersedes 89904-78740i201709-201808
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78771×2i201809-202007
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub89904-78772
main89904-78780×2i201509-201709
MALAYSIA SPEC
main89904-78781×2i201709-202007
MALAYSIA SPEC
main89904-78790×2i201509-201709
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78791×2i201709-202007
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78830×2supersedes 89904-78820i201509-201709
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78G70×2supersedes 89904-78J40i202007
BRUNEI SPEC
main89904-78G80×2supersedes 89904-48W80i202007
EGYPT SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78G90×2i202007
MALAYSIA SPEC
main89904-78J00×2i202007
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-78J20×2i202007
JORDAN SPEC
main89904-78J30×2i202007
JORDAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78J50×2supersedes 89904-78J40i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78J60×2i202007
BRUNEI SPEC
main89904-78J70×2supersedes 89904-48X00i202007
NEDERLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main89904-78J80×2i202007
MALAYSIA SPEC
main89904-78J90×2i202007
MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)
main89904-78K20×2supersedes 89904-78K10i202007
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
main89904-48X70i202007
CARD KEY-WITH
sub89904-48X71
main89904-48X80i202007
CARD KEY-WITH
main89904-48X90i202007
THAILAND SPEC&CARD KEY-WITH
main89904-48Y00i202007
THAILAND SPEC&CARD KEY-WITH
main89904-48Y10i202007
HONG KONG SPEC&CARD KEY-WITH
main89904-48Y20i202007
HONG KONG SPEC&CARD KEY-WITH
main89904-48Y70i202007
CARD KEY-WITH
main89904-53511i201709-201805
BRAZIL SPEC&CARD KEY-WITH
main89904-53512i201807-202007
CARD KEY-WITH
main89904-53521i201407-201709
CARD KEY-WITH
main89904-53522i201808-202007
CARD KEY-WITH
main89904-53551i201709-202004
CARD KEY-WITH
main89904-53561i201412-201709
THAILAND SPEC&CARD KEY-WITH
main89904-53571i201709-202007
THAILAND SPEC&CARD KEY-WITH
main89904-53581i201407-201709
HONG KONG SPEC&CARD KEY-WITH
main89904-53591i201412-201706
INDONESIA SPEC&CARD KEY-WITH
main89904-53592i201707-201709
INDONESIA SPEC&CARD KEY-WITH
main89904-53593i201812-202007
INDONESIA SPEC&CARD KEY-WITH
sub89904-53594
main89904-53601i201407-201608
SINGAPORE SPEC&CARD KEY-WITH
main89904-53602i201609-201706
SINGAPORE SPEC&CARD KEY-WITH
main89904-53603i201709-201811
SINGAPORE SPEC&CARD KEY-WITH
sub89904-53605
main89904-53604i201812-202007
SINGAPORE SPEC&CARD KEY-WITH
sub89904-53605
main89904-53621i201412-201709
JORDAN SPEC&CARD KEY-WITH
main89904-53631i201709-202007
CARD KEY-WITH
main89904-53641i201709-202007
HONG KONG SPEC&CARD KEY-WITH
main89904-78020i201709-202007
CARD KEY-WITH
main89904-78030i201709-202007
CARD KEY-WITH
main89904-78860i202007
JORDAN SPEC&CARD KEY-WITH
main89904-78G00i202007
HONDURAS SPEC&CARD KEY-WITH
sub89904-78G01
main89904-78G10i202007
HONDURAS SPEC&CARD KEY-WITH
sub89904-78G11
main89904-78G20i202007
CARD KEY-WITH

15 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
