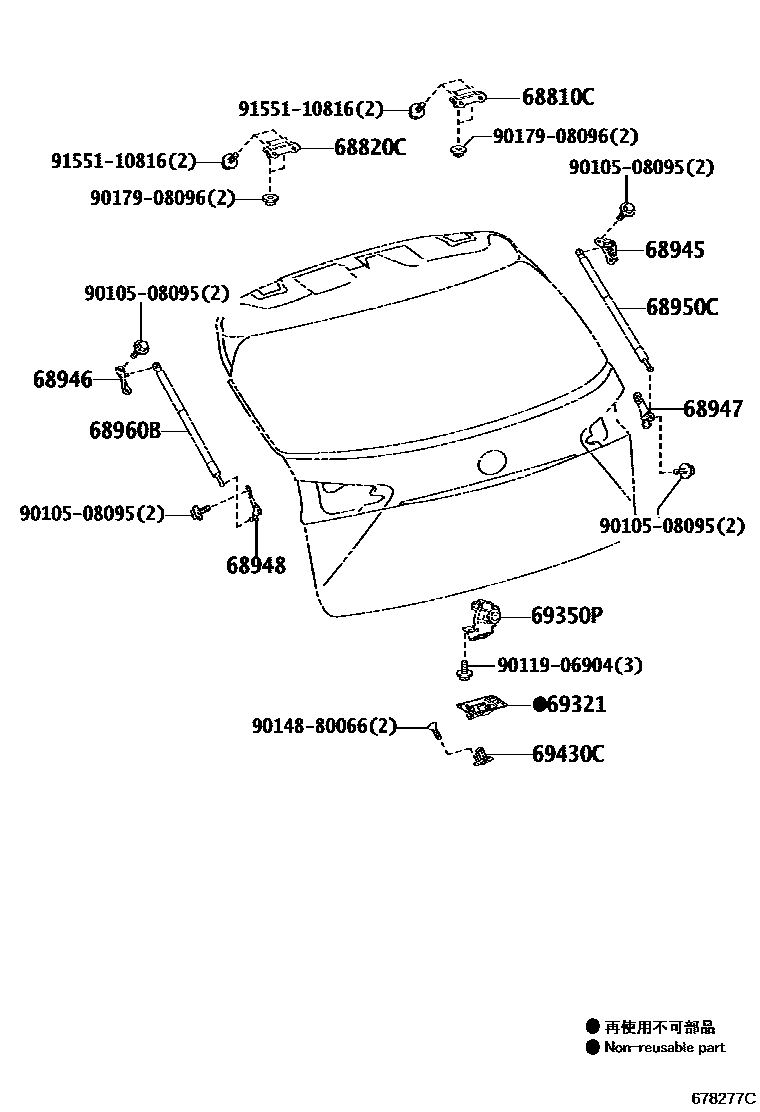

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&AUDIO-EMVN & 10SPEAKER
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&AUDIO-EMVN & 10SPEAKER
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&AUDIO-EMVN & 10SPEAKER
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&AUDIO-EMVN & 10SPEAKER
68950CSTAY ASSY, BACK DOOR, RH
AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER
68960BSTAY ASSY, BACK DOOR, LH
AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER
69321COVER, BACK DOOR LOCK
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
69430CSTRIKER ASSY, BACK DOOR LOCK
9010508095
main90105-08095
9011906904
main90119-06904
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
16 parts on this diagram · 2 diagrams in section
