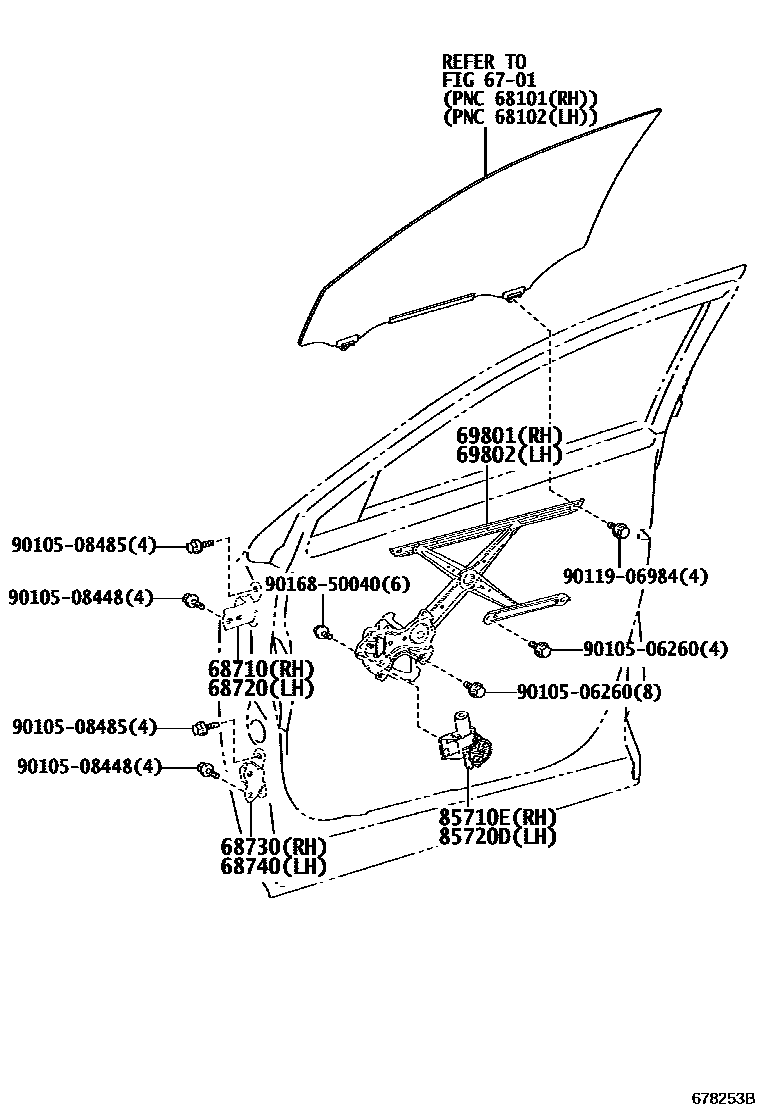

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAGZ1#,AYZ1#,ZGZ1#201407-201709

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAGZ1#,AYZ1#,ZGZ1#201407-201709

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAGZ1#,AYZ1#,ZGZ1#201407-201709

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAGZ1#,AYZ1#,ZGZ1#201407-201709

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-78010iAGZ1#,AYZ1#,ZGZ1#201407-201506

main85710-78011iAGZ1#,AYZ1#,ZGZ1#201507-201709

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-78010iAGZ1#,AYZ1#,ZGZ1#201407-201506

main85720-78011iAGZ1#,AYZ1#,ZGZ1#201507-201709

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
