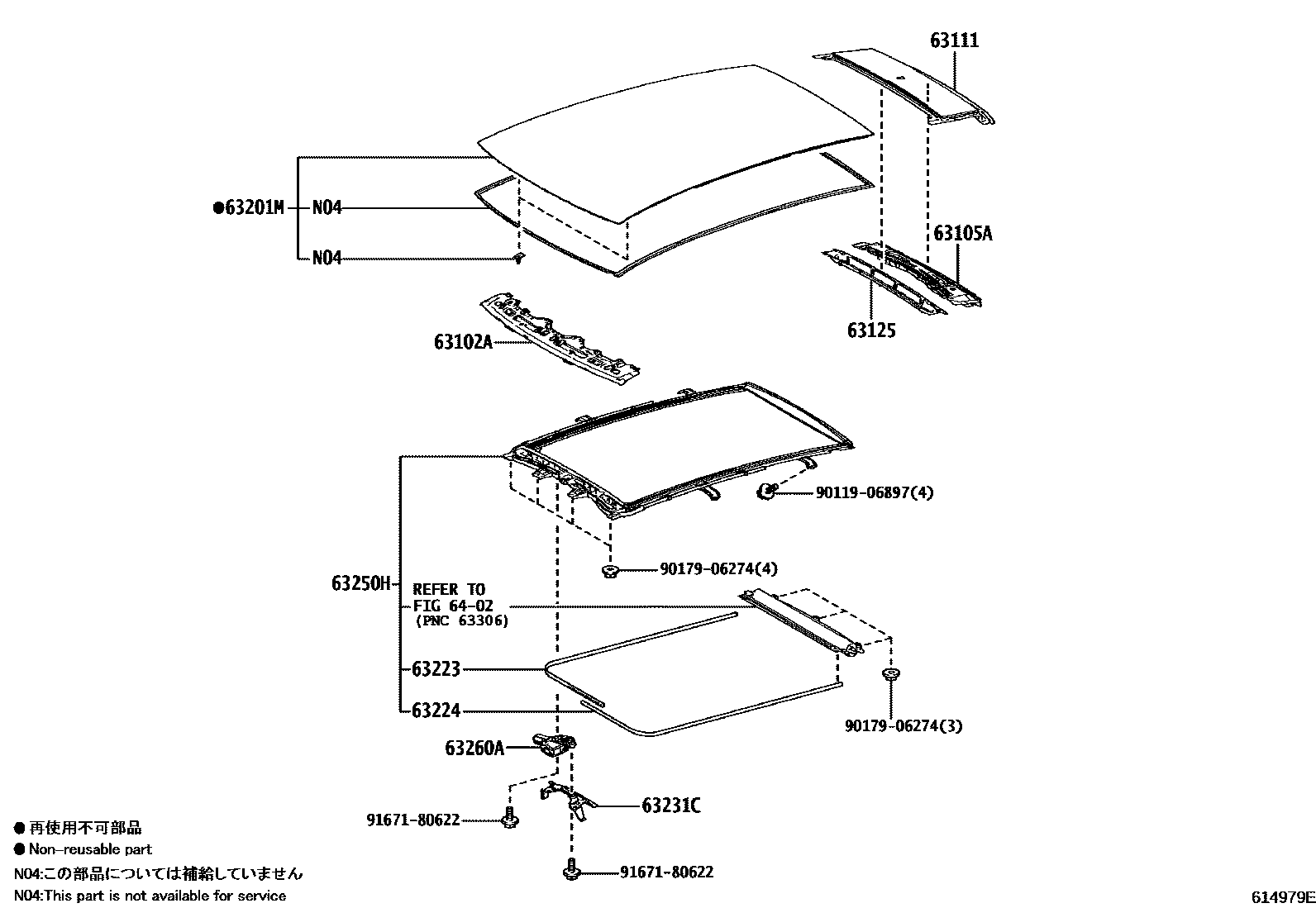

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
SOUTH AFRICA SPEC&ROOF PANEL-MOON ROOF
MALAYSIA SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
HONG KONG SPEC&ROOF RAIL-WITH
SOUTH AFRICA SPEC&ROOF RAIL-WITH
ROOF RAIL-WITH&ROOF PANEL-MOON ROOF
ROOF RAIL-WITH&ROOF PANEL-MOON ROOF
HONG KONG SPEC&ROOF PANEL-MOON ROOF
SOUTH AFRICA SPEC&ROOF PANEL-MOON ROOF
THAILAND SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
BRUNEI SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
63125REINFORCEMENT, ROOF PANEL, NO.2
MALAYSIA SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1
ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
sub63201-78012
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS)
63223CABLE, SLIDING ROOF DRIVE, RH
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS)
63224CABLE, SLIDING ROOF DRIVE, LH
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS)
63231CBRACKET, ROOM LAMP
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS)
63250HHOUSING ASSY, SUNSHADE
ROOF PANEL-PANORAMIC ROOF(FIX GLASS),ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS),BLACK,TRIM04,05,06,25,26,27,35,36,37,5#
63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE
ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
ROOF PANEL-PANORAMIC ROOF(HEAT BARRIER GLASS)
ROOF PANEL-MOON ROOF
ROOF PANEL-MOON ROOF
6402
9011906897
main90119-06897
9017906274
main90179-06274
9167180622
main91671-80622
14 parts on this diagram · 4 diagrams in section
