SPARE WHEEL CARRIER

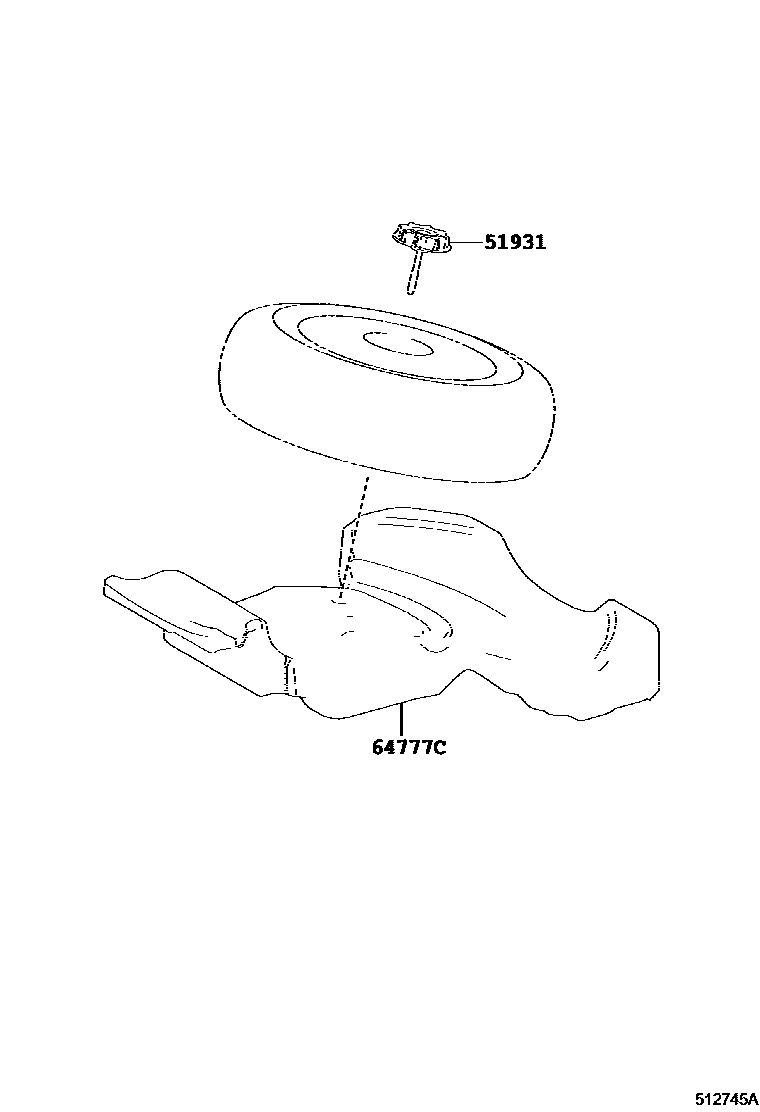

Parts diagram

51931CARRIER, SPARE WHEEL, NO.1

main51931-47020i201407-201709

main51931-48020i201407-201509

COSTARICA,GUATEMALA,HONDURAS,PANAMA SPEC; DOMINICA SPEC; NEDERLAND SPEC

64777CCUSHION, SPARE WHEEL

main64777-78020i201407-201707

main64777-78021i201707-201709

main64777-78010i201407-201509

COSTARICA,GUATEMALA,HONDURAS,PANAMA SPEC; DOMINICA SPEC; NEDERLAND SPEC

2 parts on this diagram · 1 diagram in section
