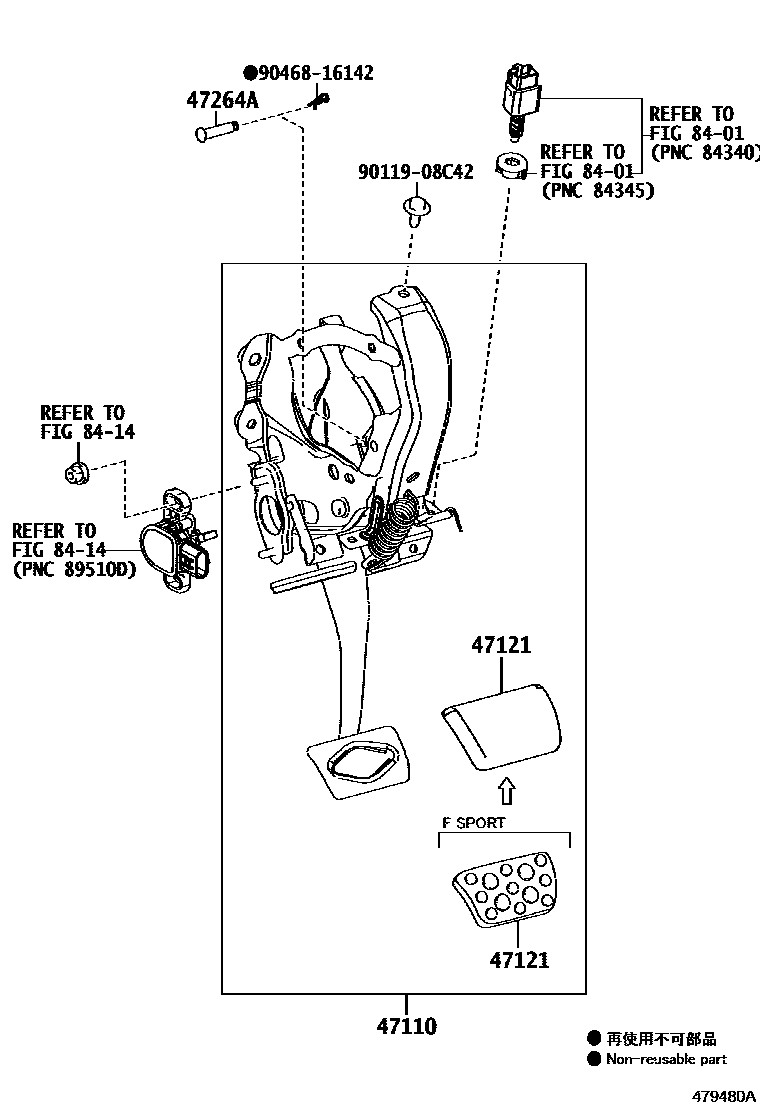

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42230iAGZ1#,ZGZ1#..LHD201412-201702

main47110-78030iAYZ1#..LHD201709

main47110-78060iZGZ1#;AGZ1#..GCC,GEN201709

main47110-78010supersedes 47110-42210iAGZ1#..ARL201709

F SPORT

main47110-78020iAGZ1#..LHD201412-201702

F SPORT*(F)

main47110-78040supersedes 47110-48260iAYZ1#..ARL201407-201709

F SPORT*(F)

main47110-78050iAYZ15..CHI201609-201709

F SPORT*(F)

main47110-78070supersedes 47110-78060iAGZ1#..GCC,GEN201709

F SPORT

47121PAD, BRAKE PEDAL

main47121-42010iAGZ1#,AYZ1#,ZGZ1#201407-201608

main47121-42020iAGZ1#,AYZ1#,ZGZ1#201609-201709

main47121-78010supersedes 47121-42020iAYZ15;AGZ1#,AYZ10..ARL,GCC,GEN201709

F SPORT

47264APIN(FOR PUSH ROD)

main90249-08256iAGZ1#,AYZ1#,ZGZ1#201407-201709

8401

8414

9011908C42

main90119-08C42

9046816142

main90468-16142

7 parts on this diagram · 4 diagrams in section
