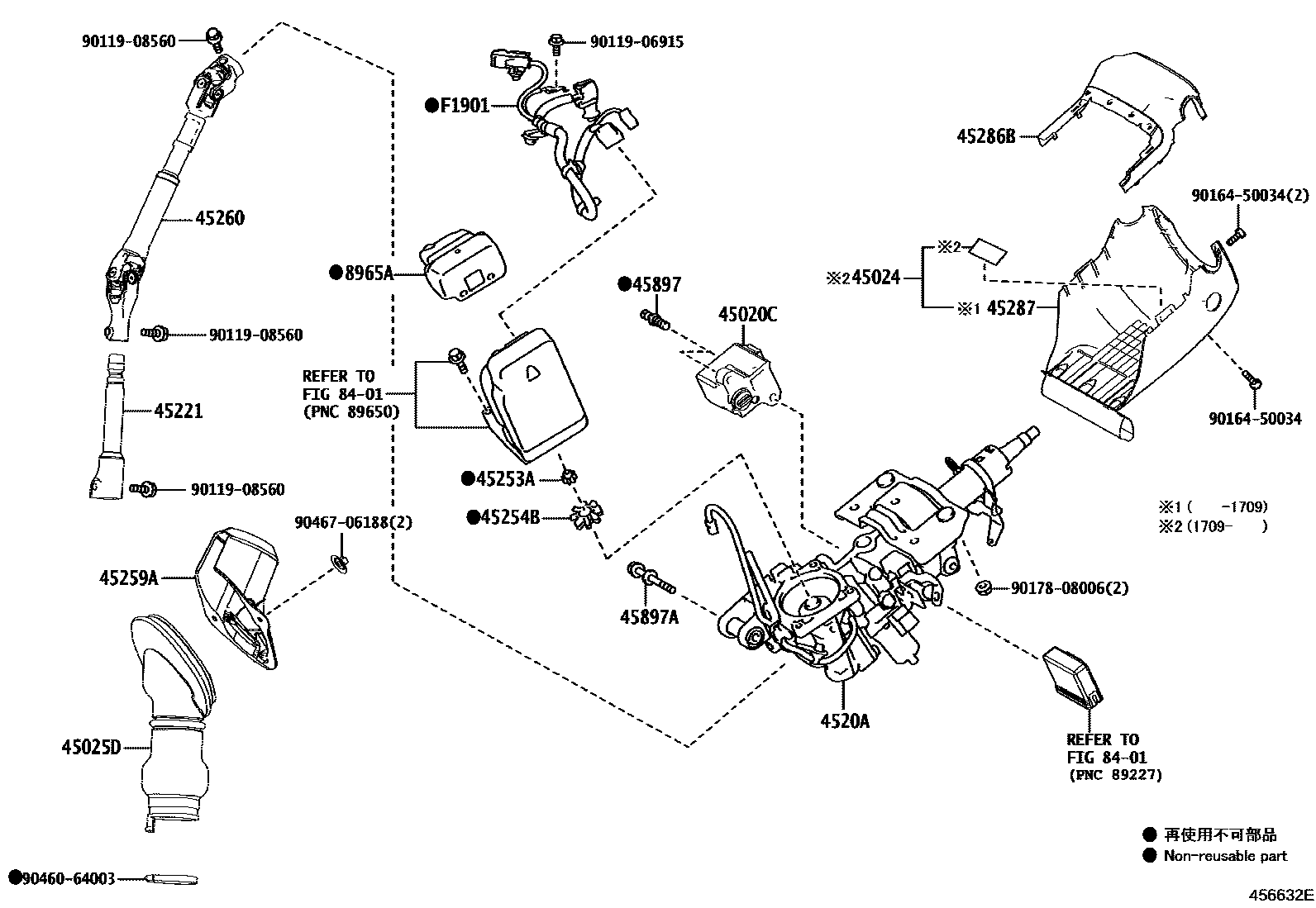

STEERING COLUMN & SHAFT

0001 1 0002 1POWER TILT & TELESCOPIC 0003 1MANUAL TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iAGZ1#,AYZ1#,ZGZ1#..LHD201709

main45020-48090iAGZ1#,AYZ1#,ZGZ15..LHD201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-78020-C0iAYZ15..LHD;AGZ1#..GCC,GEN201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main45024-78030-C0supersedes 45024-78020-C0iAYZ10,ZGZ15..CHI201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42070iAGZ1#,AYZ1#..ARL201407-201709

main45025-42080iAGZ1#..CHI201709-202004

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-48020iAGZ1#,AYZ1#..ARL201709

main4520A-78020iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

main4520A-78060supersedes 4520A-78020iAGZ1#,AYZ1#,ZGZ15..LHD201407-201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45221SHAFT, STEERING INTERMEDIATE

main45221-42090iAYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN201709

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iAGZ1#,AYZ1#,ZGZ15..LHD201407-201704

STEERING COLUMN-POWER(TILT & TELESCOPIC)

main45253-33110iAGZ1#,AYZ1#,ZGZ15..LHD201705-201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iAGZ1#,AYZ1#,ZGZ15..LHD201407-201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-42010iAGZ1#,AYZ1#..ARL201407-201709

main45259-42020iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201709

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42100iAGZ1#,AYZ1#..ARL201709

main45260-42110iAGZ1#,AYZ1#,ZGZ1#..LHD201709

45286BCOVER, STEERING COLUMN, UPR

main45286-78010-C0iAYZ15;AGZ1#,AYZ10..ARL,GCC,GEN201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

45287COVER, STEERING COLUMN, LWR

main45287-78010-C0iAGZ15,AYZ1#,ZGZ1#..CHI201410-201709

BLACK,TRIM0#,1#,2#,3#,5#

main45287-78020-C0iAGZ1#,AYZ1#..LHD201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

45897BOLT, STEERING LOCK SET

main45897-12020supersedes 45897-12020iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iAGZ1#,AYZ1#,ZGZ1#201407-201709

8401

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-33011iAGZ1#,AYZ1#..ARL201407-201709

main8965A-33030iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201709

NO.1:REFER ILLUST.

main8965A-33040iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

NO.2:REFER ILLUST.

main8965A-33021supersedes 8965A-33040iAGZ1#..CHI201709-202004

STEERING COLUMN-POWER(TILT & TELESCOPIC)

F1901WIRE SUB-ASSY, COMPUTER

mainF190142011iAGZ1#..GCC,GEN;AYZ1#,ZGZ1#..LHD201709

mainF190148080iAGZ1#,AYZ1#..ARL201709

mainF190178020supersedes F190142011iAGZ1#..GCC,GEN;AYZ1#,ZGZ15..LHD201709

STEERING COLUMN-POWER(TILT & TELESCOPIC)

9011906915

main90119-06915

9011908560

main90119-08560

9016450034

main90164-50034

9017808006

main90178-08006

9046064003

main90460-64003

9046706188

main90467-06188

22 parts on this diagram · 3 diagrams in section
