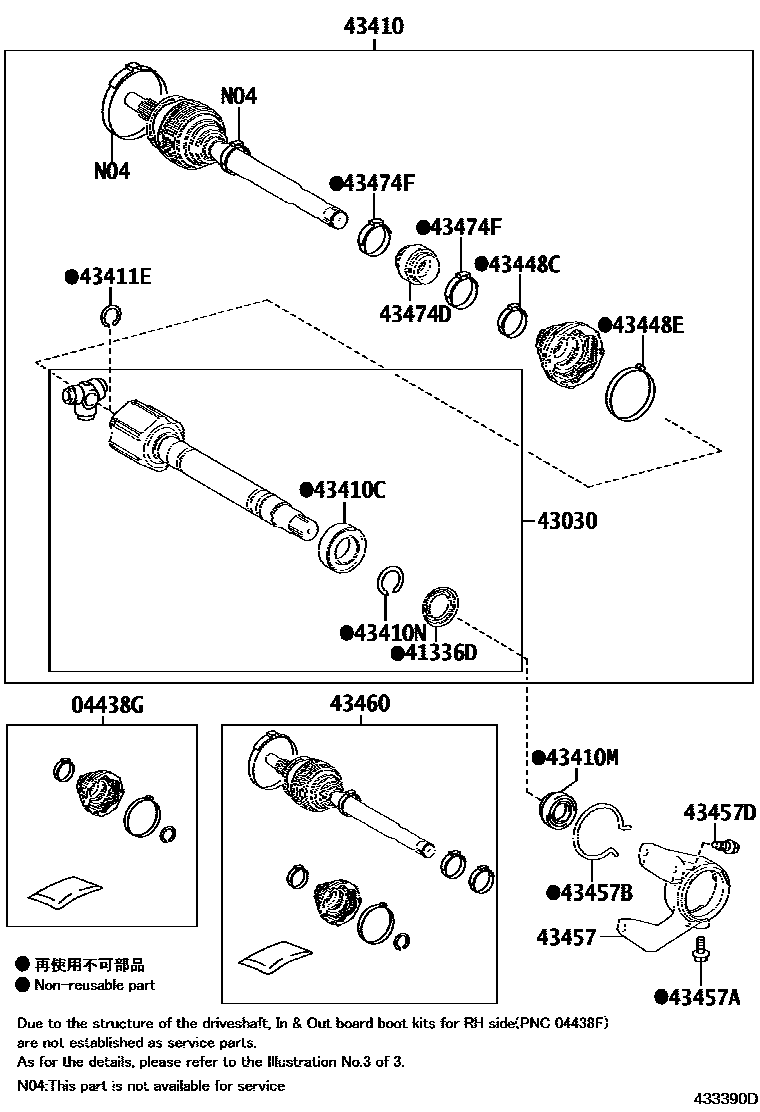

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1RH 0006 1LH 0007 1LH 0008 1LH 0009 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33090iZGZ1#201801

main04437-78010iAGZ1#,AYZ1#201407-201803

sub04437-78011

main04437-78011iAYZ1#;AGZ1#..ARL,GCC,GEN201804-202004

main04438-42180iZGZ1#201412-201801

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZGZ10201412-201709

main41336-52020iZGZ15201412-201709

main41336-78010iAYZ1#;AGZ10..ARL,GCC201407-202004

main41336-78020iAGZ15..ARL,GCC,GEN201412-202004

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28070iZGZ10201801-202109

main43030-42060iZGZ15201412-201801

main43030-44021iZGZ10201412-201801

main43030-48080iZGZ15201801-202109

main43030-58060iAGZ10,AYZ1#201602-202109

main43030-78010iAGZ10,AYZ1#201407-201602

main43030-78020iAGZ15201412-202109

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42220iZGZ10201412-201712

sub43410-42221

main43410-42221iZGZ10201801

main43410-42240iZGZ15201412-201712

sub43410-42241

main43410-42241iZGZ15201801

main43410-78010iAGZ10,AYZ1#201407-201704

main43410-78020iAGZ15201412-201704

main43410-78030iAGZ10..CHI201704-202004

main43410-78040iAGZ15..ARL,GCC,GEN201704-202004

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iZGZ15;AGZ15..ARL,GCC,GEN201412-202004

main90363-41003iAGZ10..CHI201407-202004

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iAGZ10201412-202109

main90311-40039iAYZ1#201407-202109

main90311-40041iZGZ10201412-202109

main90316-34001iAGZ15,ZGZ15201412-202109

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78010iAYZ1#;AGZ10..ARL,GCC201407-202004

main43425-78040iAGZ15..ARL,GCC,GEN201412-202004

main90520-33008iZGZ15201412-201709

main90520-38015iZGZ10201412-201709

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iZGZ1#201412-201709

main43425-78020iAGZ1#..CHI201407-202004

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33120iZGZ15201801

TYPE A:REFER ILLUST.

main42345-42010iZGZ1#201412-201801

TYPE A:REFER ILLUST.

main42345-78010iAGZ1#..CHI201407-202004

main90949-01559iZGZ1#201412-201801

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iZGZ1#201412-201801

main42345-33140iZGZ1#201801

main42345-78020iAGZ1#,AYZ1#201407-202004

43457BRACKET, DRIVE SHAFT BEARING

main43457-33040iAYZ1#201407-201709

main43457-42100iZGZ10201412-201709

main43457-42120iZGZ15201412-201709

main43457-42150iAGZ15..CHI201412-202004

main43457-48010iAGZ10201412-202004

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iZGZ10201412-201709

*10-1.25PX22-19.5

main90119-10461iAGZ1#..CHI201407-202004

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iAGZ15..CHI201412-202004

main90521-78002iAYZ1#;AGZ10..ARL,GCC201407-202004

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iAGZ1#..CHI201407-202004

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-49815iZGZ10201412-201801

main43470-49846iZGZ15201412-201801

main43470-79135iAGZ10,AYZ1#201407-201704

sub43470-79136

main43470-79145iAGZ15201412-201704

sub43470-79146

main43470-79195iAGZ10,AYZ1#201704-201804

sub43470-79196

main43470-79196iAGZ10,AYZ1#201804-202109

main43470-79205iAGZ15201704-201804

sub43470-79206

main43470-79206iAGZ15201804-202109

main43470-80460iZGZ1#201801-202109

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48090iZGZ15201412-201709

main43474-78010iAYZ1#;AGZ1#..ARL,GCC,GEN201407-202004

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iZGZ15201709

main42345-14010iZGZ15201412-201709

main42345-78030iAGZ1#,AYZ1#201407-202004

17 parts on this diagram · 9 diagrams in section
