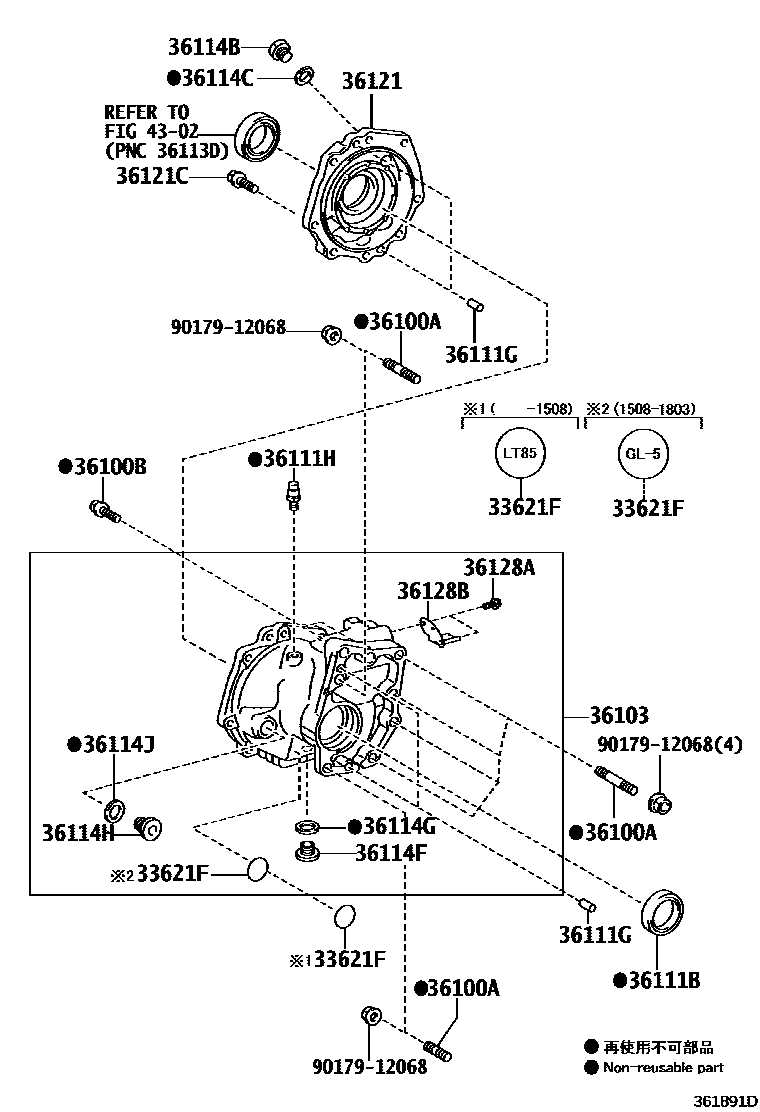

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42030iAGZ15,ZGZ15201412-201508

main33621-48020iAGZ15,ZGZ15201508-201709

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iAGZ15,ZGZ15201709

S=22 & 22,L=69

main90116-12034iAGZ15,ZGZ15201412-201709

S=19 & 19,L=47

main90116-12041×4iAGZ15,ZGZ15201709

S=30 & 22,L=64

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12298×2iAGZ15..CHI201709-202004

*12-1.25PX53-35

36103CASE SUB-ASSY, TRANSFER

main36103-42040iAGZ15,ZGZ15201412-201508

main36103-42041iAGZ15,ZGZ15201508-201709

main36103-42070iAGZ15,ZGZ15201809-202007

main36103-52030iAGZ15,ZGZ15202007

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iAGZ15,ZGZ15201412-201709

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iAGZ15,ZGZ15201412-201709

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iAGZ15,ZGZ15201709

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iAGZ15,ZGZ15201412-201709

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iAGZ15,ZGZ15201412-201709

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iAGZ15,ZGZ15201412-201709

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iAGZ15,ZGZ15201412-201709

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iAGZ15,ZGZ15201412-201709

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iAGZ15,ZGZ15201412-201709

36121COVER, TRANSFER CASE, NO.1

main36121-52020iAGZ15,ZGZ15201412-201709

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iAGZ15,ZGZ15201412-201709

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iAGZ15,ZGZ15201412-201709

36128BDEFLECTOR, BREATHER OIL

main36128-42010iAGZ15,ZGZ15201412-201709

4302

9017912068

main90179-12068

19 parts on this diagram · 1 diagram in section
