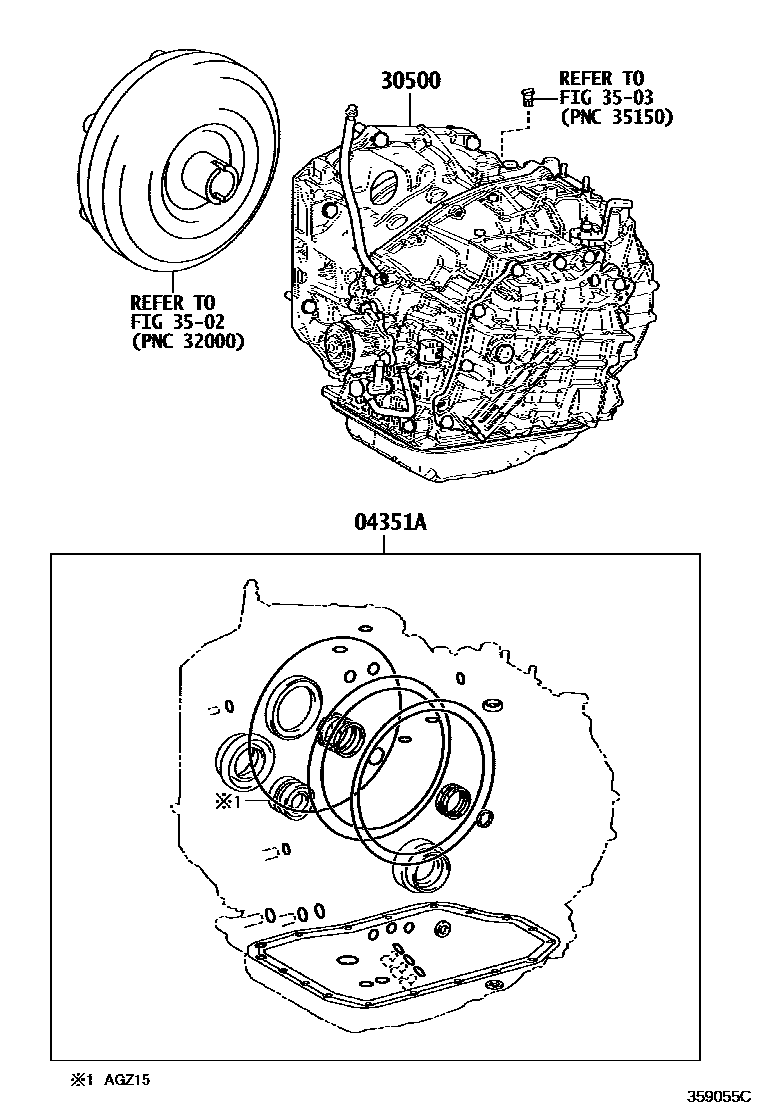

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48242iAGZ10..ARL,GCC201811

main04351-78010iAGZ10201412-201709

main04351-78020iAGZ15201412-201709

main04351-78021iAGZ15..CHI201811-202004

30500TRANSAXLE ASSY, AUTOMATIC

main30500-78010iAGZ10..CHI201709-202004

U661E

main30500-78020supersedes 30500-78010iAGZ10..GCC201412-201709

U661E

main30500-78030iAGZ15..ARL,CHI201412-201709

U661F

main30500-78040supersedes 30500-78030iAGZ15..ARL; AGZ15..GCC,GEN201412-201709

U661F; U661F,BRUNEI SPEC; U661F,INDONESIA SPEC; U661F,MALAYSIA SPEC

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 1 diagram in section
