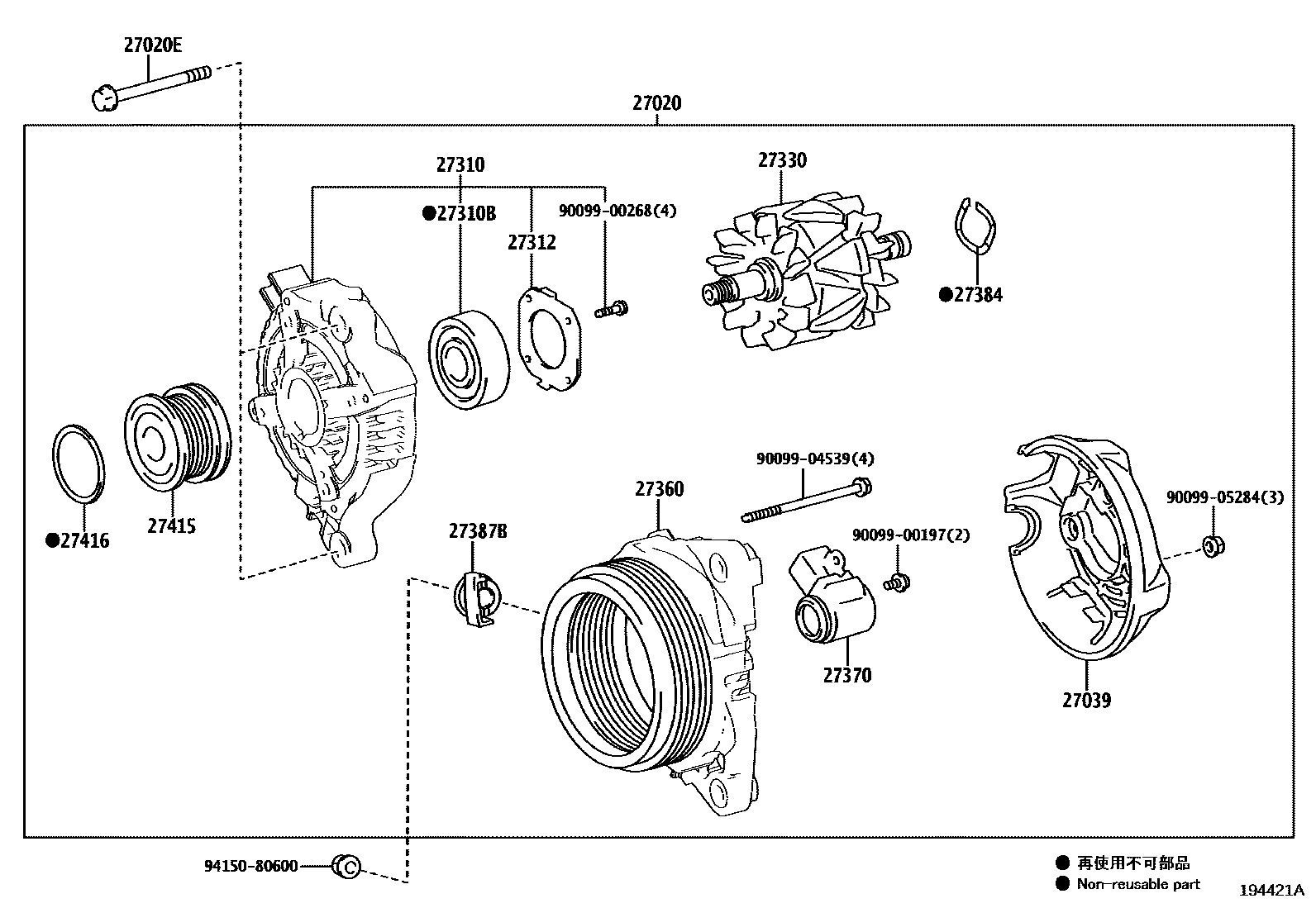

ALTERNATOR

0001 112V 150A 0002 112V 130A

27020ALTERNATOR ASSY

main27060-36100i8ARFTS..AGZ1#201709-201811

12V 150A

main27060-36101i8ARFTS..AGZ1#..CHI201812-202004

12V 150A

main27060-37190i3ZRFAE..ZGZ1#201412-201709

12V 130A

main27060-37191i3ZRFAE..ZGZ1#201812

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i3ZRFAE..ZGZ1#201709

main91552-81095×2i8ARFTS..AGZ1#..ARL,GCC,GEN201709

27039COVER, ALTERNATOR REAR END

main27039-31390i8ARFTS..AGZ1#201412-201709

main27039-37220i3ZRFAE..ZGZ1#201412-201709

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-36180i8ARFTS..AGZ1#..CHI201709-202004

main27310-37220i3ZRFAE..ZGZ1#201412-201709

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#201412-201709

27312PLATE, RETAINER

main27312-72100i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#201412-201709

27330ROTOR ASSY, ALTERNATOR

main27330-37220i3ZRFAE..ZGZ1#201412-201709

main27330-58460i8ARFTS..AGZ1#..CHI201709-202004

27360COIL ASSY, ALTERNATOR

main27360-36180i8ARFTS..AGZ1#201709-201812

main27360-36181i8ARFTS..AGZ1#..CHI201812-202004

main27360-37220i3ZRFAE..ZGZ1#201412-201709

main27360-37221i3ZRFAE..ZGZ1#201812

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i8ARFTS..AGZ1#201412-201709

main27370-31220i3ZRFAE..ZGZ1#201412-201709

27384WASHER

main27384-50030i8ARFTS..AGZ1#..ARL,GCC,GEN201709

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i8ARFTS..AGZ1#..CHI201709-202004

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i3ZRFAE..ZGZ1#201709

main27415-0W170i8ARFTS..AGZ1#..CHI201709-202004

27416CAP, ALTERNATOR PULLEY

main27416-0W050i8ARFTS,3ZRFAE..AGZ1#,ZGZ1#201412-201709

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600

18 parts on this diagram · 2 diagrams in section
