MANIFOLD

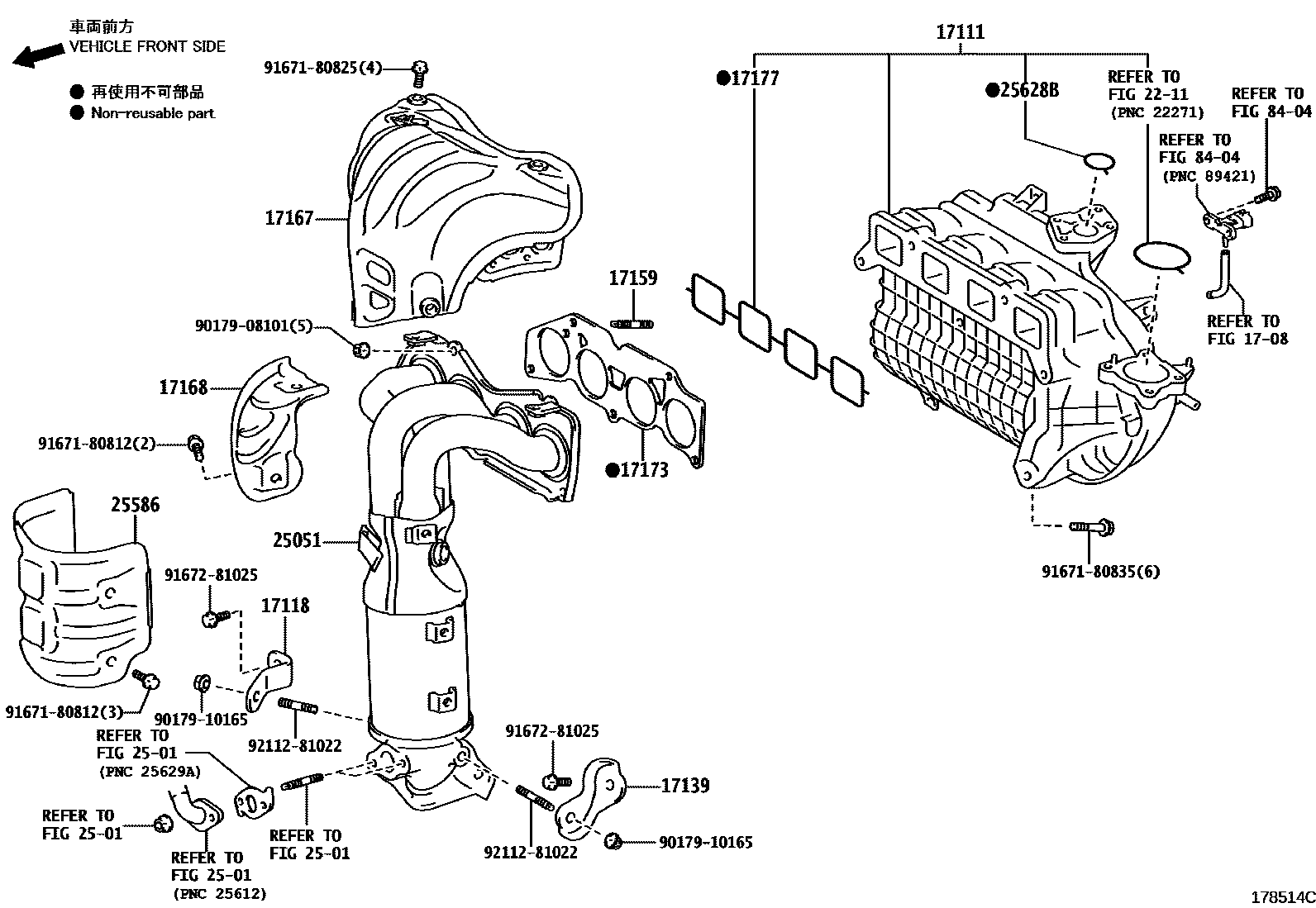

Parts diagram

1708

17111MANIFOLD, INTAKE

main17101-36081i201412-201505

main17101-36082i201505-202004

main17120-36050i201407-201709

main17120-37031i201412-201709

17118STAY, MANIFOLD

main17118-36020i201407-201709

main17118-36060i201412-202004

main17118-37070i201412-201709

17139STAY, MANIFOLD, NO.2

main17139-36040i201407-201709

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i201412-201709

NO.1

main90126-08037i201407-201709

main90126-08052i201412-201709

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-36011i201407-201709

main17167-36040i201412-201706

main17167-36041i201707-202004

main17167-37070i201412-201709

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-36010i201407-201709

main17168-36050i201412-202004

main17168-37090i201412-201709

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-36020i201407-201709

main17173-36040i201412-202004

main17173-37010i201412-201709

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36020i201407-201709

main17171-36040i201412-202004

main17177-37030i201412-201709

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36120i201407-201810

*114=TOYOTA/36120/Y

main25051-36140i201407-202004

*114=TOYOTA/36140/Y

main25051-36140i201407-201709

*114=TOYOTA/36140/Y,SOUTH AFRICA SPEC

main25051-36140i201407-201709

*114=TOYOTA/36140/Y,BRUNEI SPEC

main25051-36140i201407-201709

*114=TOYOTA/36140/Y,MACAO SPEC

main25051-36250i201412-202004

*114=TOYOTA/36250/Y

main25051-36410i201810

*114=TOYOTA/36410/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36020i201407-201709

25628BGASKET, EGR INLET

main25628-36010i201407-201709

8404

9017908101

main90179-08101

9017910165

main90179-10165

9167180812

main91671-80812

9167180825

main91671-80825

9167180835

main91671-80835

9167281025

main91672-81025

9211281022

main92112-81022

22 parts on this diagram · 5 diagrams in section
