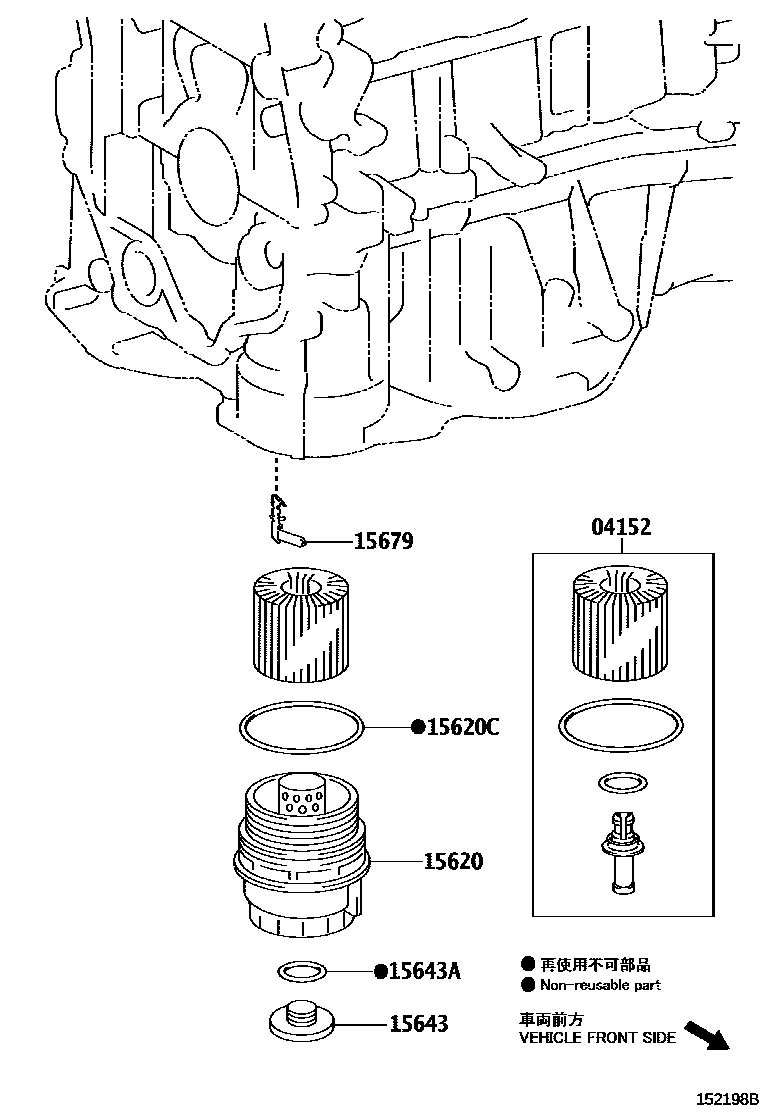

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

main04152-37010i3ZRFAE..ZGZ1#201412-201611

ELEMENT TYPE

15620CAP ASSY, OIL FILTER

main15620-31060i2ARFXE..AYZ1#202108

ALUMINUM

main15620-36020i2ARFXE..AYZ1#201709

PLASTIC

main15620-37010i3ZRFAE..ZGZ1#201412-201611

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFAE..ZGZ1#201412-201611

ELEMENT TYPE

main90301-79006i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

15643PLUG, OIL FILTER DRAIN

main15643-31050i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2ARFXE,8ARFTS..AGZ1#,AYZ1#201709

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ARFXE..AYZ1#201407-201408

main15679-37011i8ARFTS..AGZ1#..CHI201709-202004

6 parts on this diagram · 2 diagrams in section
