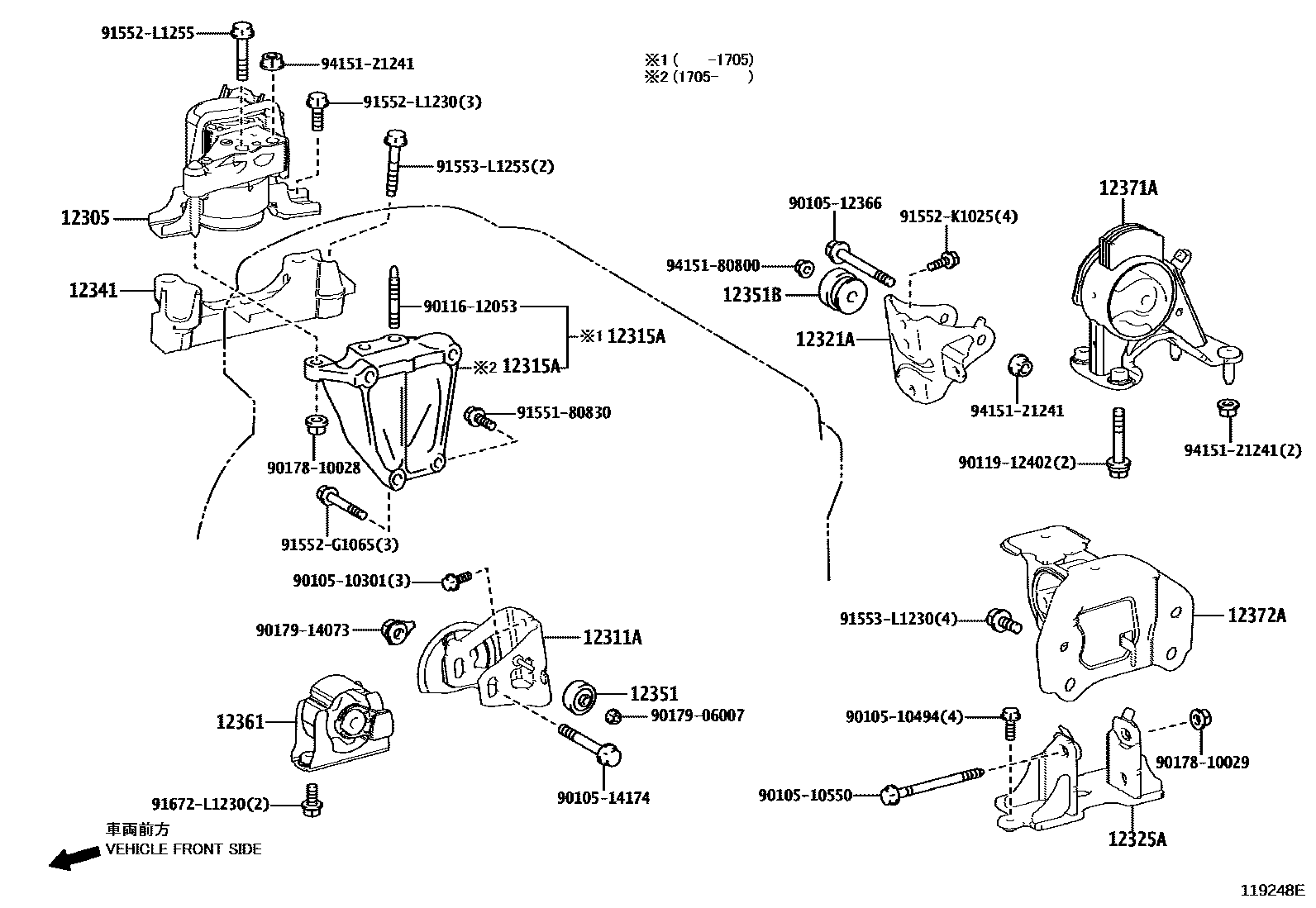

MOUNTING

0001 1 0002 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-36060i8ARFTS..AGZ1#..ARL,GCC,GEN201709

main12305-36090i2ARFXE..AYZ1#201407-201709

main12305-37350i3ZRFAE..ZGZ1#201412-201509

main12305-37351i3ZRFAE..ZGZ1#201509-201709

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-36110i2ARFXE..AYZ1#201407-201709

main12311-36120i8ARFTS..AGZ1#..CHI201709-202004

main12311-37200i3ZRFAE..ZGZ1#201412-201709

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-36010i2ARFXE..AYZ1#201407-201705

sub90116-12053

main12315-36011i2ARFXE..AYZ1#201709

main12315-36030i8ARFTS..AGZ1#201412-201709

main12315-37030i3ZRFAE..ZGZ1#201412-201709

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-36100i8ARFTS..AGZ10..CHI201709-202004

main12321-36110i8ARFTS..AGZ15..CHI201709-202004

main12321-36120i2ARFXE..AYZ1#201709

main12321-37250i3ZRFAE..ZGZ10201412-201709

main12321-37260i3ZRFAE..ZGZ15201412-201709

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-36070i2ARFXE..AYZ1#201709

main12325-36080i8ARFTS..AGZ1#..CHI201709-202004

main12325-37200i3ZRFAE..ZGZ1#201412-201709

12341SPACER, ENGINE MOUNTING

main12341-26011i2ARFXE..AYZ1#;8ARFTS..AGZ1#..ARL,GCC,GEN201709

12351DAMPER, ENGINE MOUNTING

main12351-23010i8ARFTS..AGZ1#..ARL,GCC,GEN201709

main12351-28110i2ARFXE..AYZ1#201407-201709

12351BDAMPER, ENGINE MOUNTING

main12351-23040i2ARFXE..AYZ1#201709

main12351-37020i3ZRFAE..ZGZ10201412-201709

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-36100i8ARFTS..AGZ1#201412-201709

main12361-36150i2ARFXE..AYZ1#201709

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-36120i8ARFTS..AGZ10201412-201709

main12371-36130i8ARFTS..AGZ15..CHI201709-202004

main12371-36180i2ARFXE..AYZ15..GEN201407-201709

SINGAPORE SPEC

main12371-36190i2ARFXE..AYZ1#..ARL,CHI,GEN201407-201709

main12371-37330i3ZRFAE..ZGZ10201709

main12371-37340i3ZRFAE..ZGZ15201709

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-36070i2ARFXE..AYZ1#201407-201709

main12372-36080i8ARFTS..AGZ1#..CHI201709-202004

main12372-37270i3ZRFAE..ZGZ1#201709

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512366

main90105-12366

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017906007

main90179-06007

9017914073

main90179-14073

9155180830

main91551-80830

91552G1065

main91552-G1065

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

32 parts on this diagram · 3 diagrams in section
