ENGINE OVERHAUL GASKET KIT

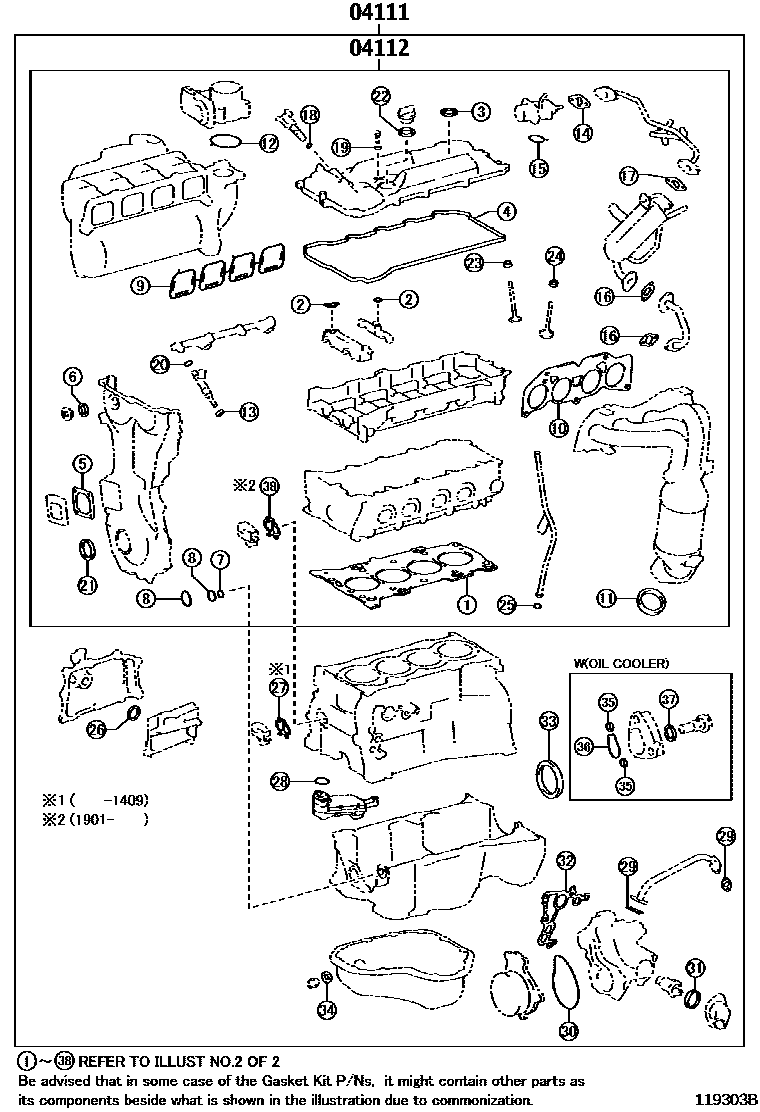

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-36200i201407-201409
TOWING PACKAGE-1000KG
main04111-36201supersedes 04111-36191i201709-202004
main04111-36231i201412-201506
main04111-36273i201810-202004
main04111-36300i201506-201602
main04111-36301i201602-201704
main04111-36302i201704-201709
main04111-36303i201710-202004
main04111-36370i202004
main04111-36390i202004
main04111-36410i202004
INDONESIA SPEC
main04111-37480i201412-201502
main04111-37481i201709-202109
sub04111-37482
main04111-36311i201905-202004
HONG KONG SPEC
main04111-36420i202004
HONG KONG SPEC
04112GASKET KIT, ENGINE VALVE GRIND
main04112-36092i201407-201409
main04112-36093i201409-201709
main04112-36094i201901
main04112-36180i201412-201506
main04112-36222i201810-202004
main04112-36250i201506-201704
main04112-36251i201704-201709
main04112-36252i201710-201810
main04112-36321i202004
main04112-36340i202004
main04112-36360i202004
INDONESIA SPEC
main04112-37203i201412-201502
main04112-37204i201502-201709
sub04112-37205
main04112-36261i201905-202004
HONG KONG SPEC
main04112-36370i202004
HONG KONG SPEC

2 parts on this diagram · 6 diagrams in section
