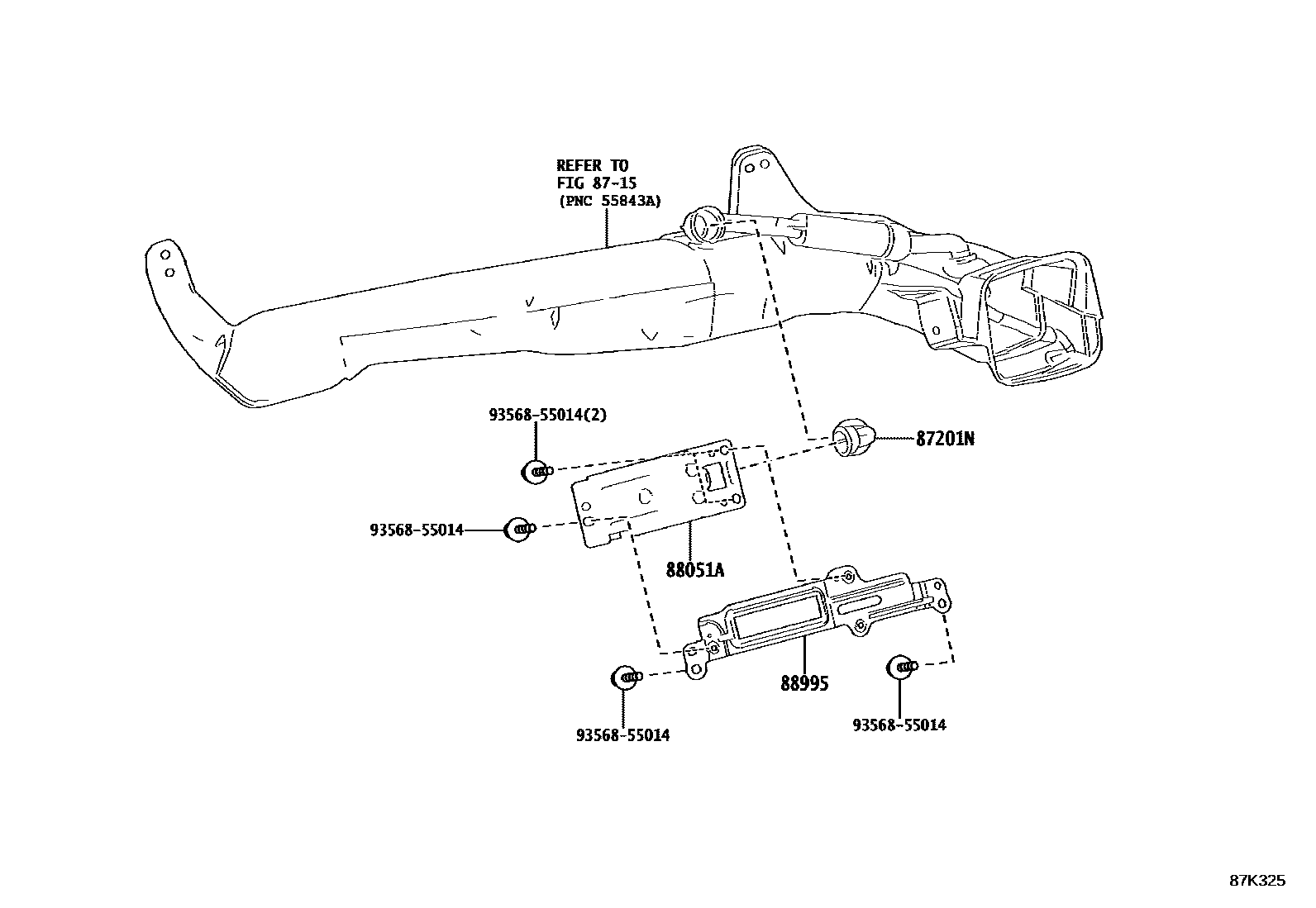

AIR PURIFIER OR ION GENERATOR
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87201NDUCT SUB-ASSY, AIR
SOUTH AFRICA SPEC
main87201-78120iAAZA25,AAZH25,TAZA25..LHD..GEN; AAZA25,TAZA25..LHD..GEN; AAZH20,25..CHI;AAZA20,AAZH21,MAZA20..LHD202111-202403
CAMBODIA SPEC; PHILIPPINE SPEC
88051AGENERATOR SUB-ASSY,ION
main88051-46010iAAZA25,AAZH25,TAZA25..LHD..GEN; AAZA25,AAZH25,TAZA25..RHD..GEN; AAZA25,TAZA25..LHD..GEN; AAZH25..CHI;AAZH20..CHI,GEN;AAZA20,AAZH21,MAZA20;AAZA25,AAZH25,TAZA25..RHD..GEN202211-202308
CAMBODIA SPEC; PHILIPPINE SPEC; SOUTH AFRICA SPEC
CAMBODIA SPEC
main88051-48010iAAZA25,AAZH25,TAZA25..LHD..GEN; AAZA25,AAZH25,TAZA25..RHD..GEN; AAZA25,TAZA25..LHD..GEN; AAZH20,26,TAZA25..LHD..EUR; AAZH25,TAZA25..LHD..EUR; AAZH25..CHI;AAZH20..CHI,GEN;AAZA20,AAZH21,MAZA20;AAZA25,AAZH25,TAZA25..RHD..GEN; AAZH25..RHD..EUR; AAZH26..GEN202203-202210
AUSTRALIA SPEC; CAMBODIA SPEC; INDIA SPEC; NEW ZEALAND SPEC; PHILIPPINE SPEC; SINGAPOLE SPEC; SOUTH AFRICA SPEC; TAIWAN SPEC; THAILAND SPEC; VIETNAM SPEC
main88051-78010iAAZA20,AAZH20..GEN; AAZA25,AAZH25,TAZA25..LHD..GEN; AAZA25,AAZH25,TAZA25..RHD..GEN; AAZA25,TAZA25..LHD..GEN; AAZH20,26,TAZA25..LHD..EUR; AAZH25,TAZA25..LHD..EUR; AAZH25..CHI;AAZH20..CHI,GEN;AAZA20,AAZH21,MAZA20;AAZA25,AAZH25,TAZA25..RHD..GEN; AAZH25..RHD..EUR; AAZH26..GEN202111-202202
AUSTRALIA SPEC; CAMBODIA SPEC; HONG KONG SPEC; INDIA SPEC; MACAU SPEC; NEW ZEALAND SPEC; PHILIPPINE SPEC; SINGAPOLE SPEC; SOUTH AFRICA SPEC; TAIWAN SPEC; THAILAND SPEC; VIETNAM SPEC
88995BRACKET,ION GENERATOR, NO.1
SOUTH AFRICA SPEC
main88995-78020iAAZA25,AAZH25,TAZA25..LHD..GEN; AAZA25,TAZA25..LHD..GEN; AAZH20,25..CHI;AAZA20,AAZH21,MAZA20..LHD202111-202403
CAMBODIA SPEC; PHILIPPINE SPEC
9356855014
main93568-55014
5 parts on this diagram · 2 diagrams in section
