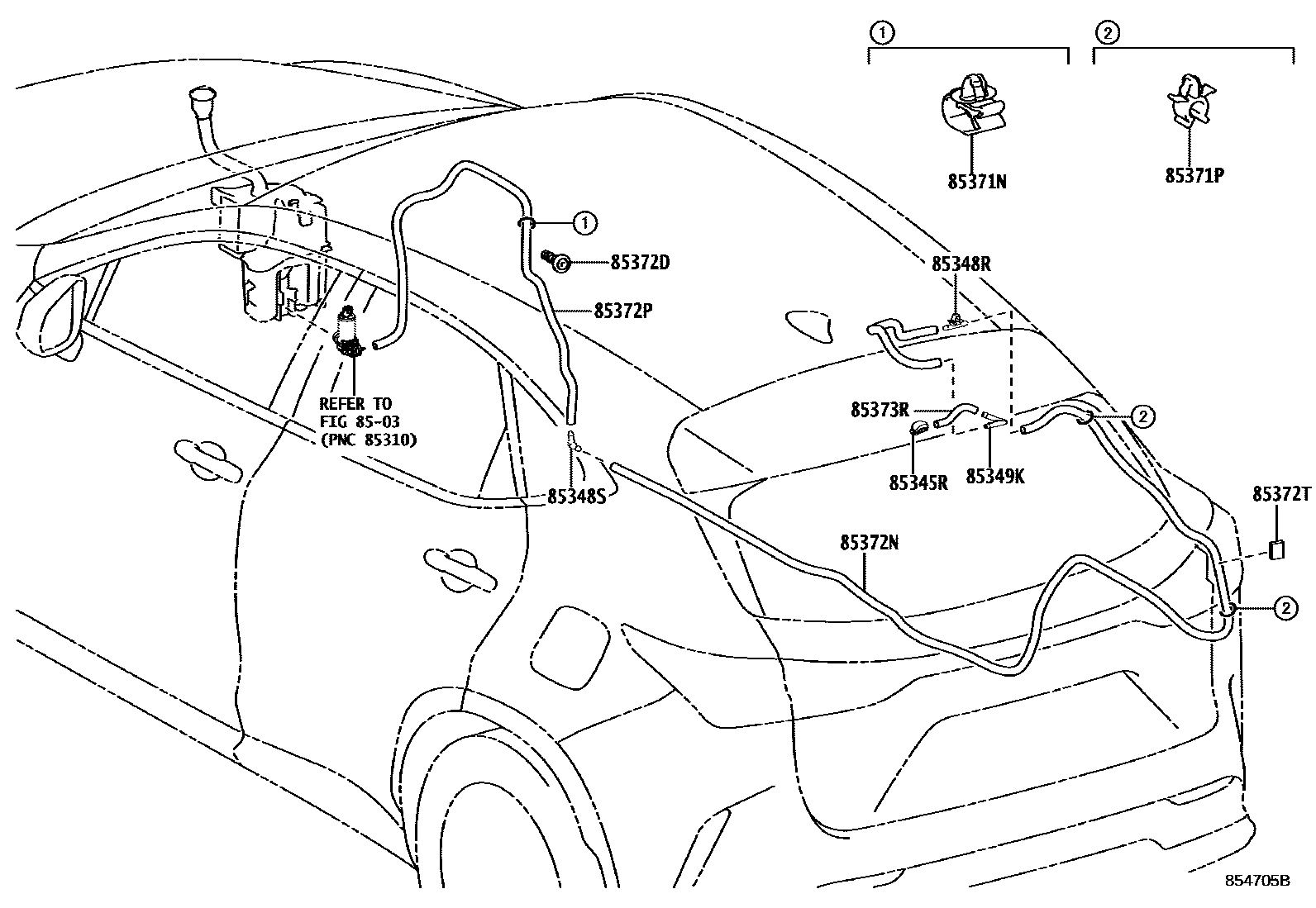

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
main85355-12360iAAZA25,TAZA25..EUR; AAZH21; AAZH25..CHI; AAZH25..EUR,GEN;AAZA25,TAZA25..GEN;AAZA20,AAZH20,26,MAZA20202111-202403
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT); CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST); CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST); WITHOUT(COLD AREA SPEC)
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90099-62186iAAZA2#; AAZA20..CHI; AAZA20;AAZA25..GEN; AAZA25..EUR; AAZA25..LHD..GEN; AAZA25..RHD202403-202506
L=600; L=600,BOLIVIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACKMONITOR-WITH(PANORAMIC VIEW MONITOR); L=600,CAMBODIA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE); L=600,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=600,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=600,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); L=600,COLD AREA SPEC-COLD AREA SPEC; L=600,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=600,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=600,COLD AREA SPEC-WITHOUT(COLD AREA SPEC); L=600,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=600,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=600,MONGOL SPEC; L=600,NICARAGUA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
main90099-62256iAAZA2#; AAZA20..CHI; AAZA20;AAZA25..GEN; AAZA25..EUR; AAZA25..LHD..GEN; AAZA25..RHD202403-202506
L=1710; L=1710,BOLIVIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); L=1710,CAMBODIA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE); L=1710,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=1710,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=1710,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); L=1710,COLD AREA SPEC-COLD AREA SPEC; L=1710,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=1710,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=1710,COLD AREA SPEC-WITHOUT(COLD AREA SPEC); L=1710,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *PVM); L=1710,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *RCTB *PVM); L=1710,MONGOL SPEC; L=1710,NICARAGUA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
main90099-62102iAAZA2#; AAZA20..CHI; AAZA20;AAZA25..GEN; AAZA25..EUR; AAZA25..LHD..GEN; AAZA25..RHD202403-202506
L=150; L=150,BOLIVIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACKMONITOR-WITH(PANORAMIC VIEW MONITOR); L=150,CAMBODIA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE); L=150,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=150,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=150,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); L=150,COLD AREA SPEC-COLD AREA SPEC; L=150,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=150,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=150,COLD AREA SPEC-WITHOUT(COLD AREA SPEC); L=150,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM); L=150,COLD AREA SPEC-WITHOUT(COLD AREA SPEC)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=150,MONGOL SPEC; L=150,NICARAGUA SPEC&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
12 parts on this diagram · 2 diagrams in section
