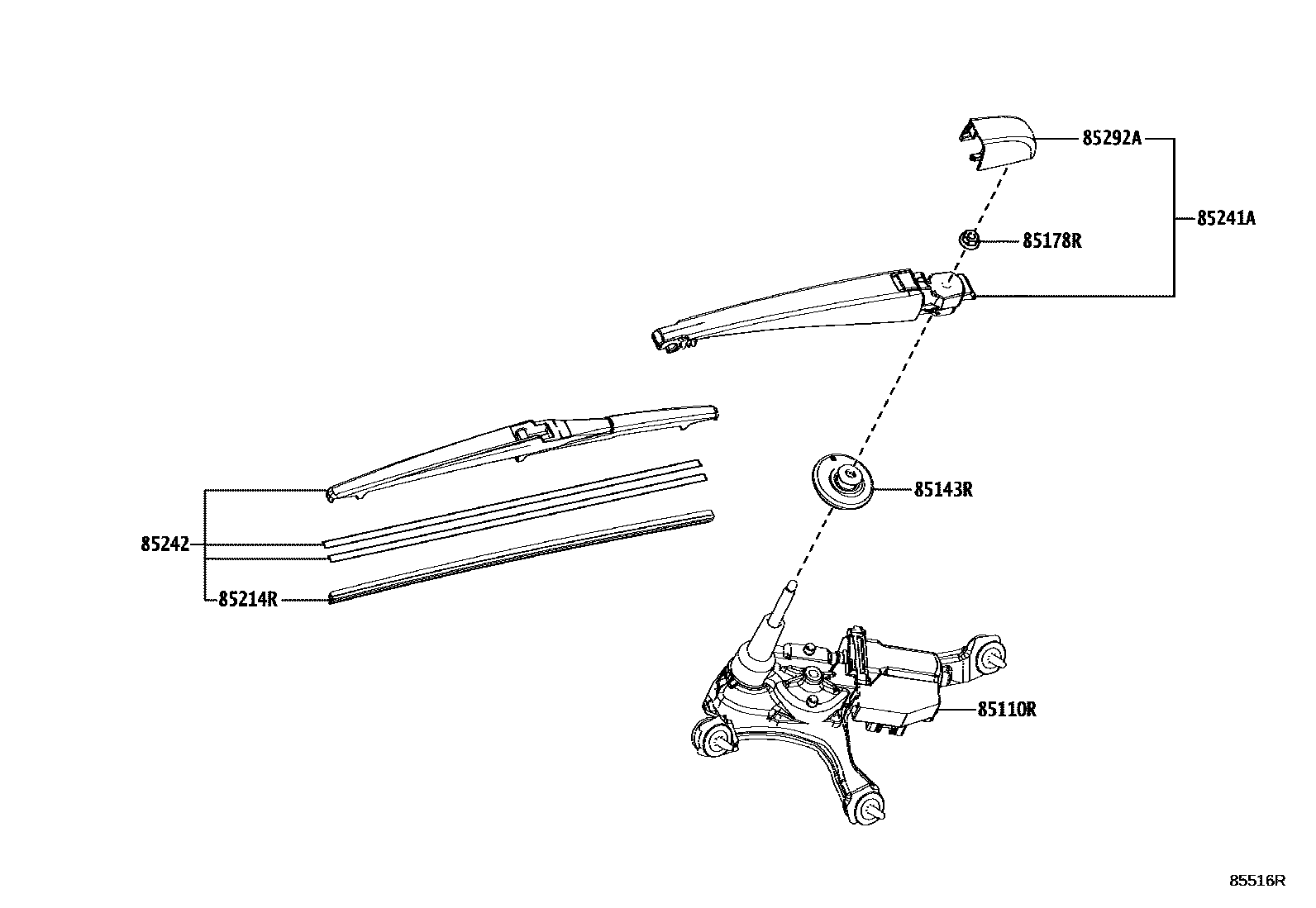

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-78030iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202301

main85130-78031iAAZA2#202403-202506

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iAAZH2#,MAZA20,TAZA25202403

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAAZA2#202403-202506

85214RRUBBER, REAR WIPER

main85214-42040iAAZH2#,MAZA20,TAZA25202403

85241AARM, REAR WIPER

main85241-78060iAAZA2#202403-202506

85242BLADE, RR WIPER

main85242-78010iAAZA2#202403-202506

85292ACAP, REAR WIPER ARM HEAD

main85292-78040iAAZA2#202403-202506

7 parts on this diagram · 2 diagrams in section
