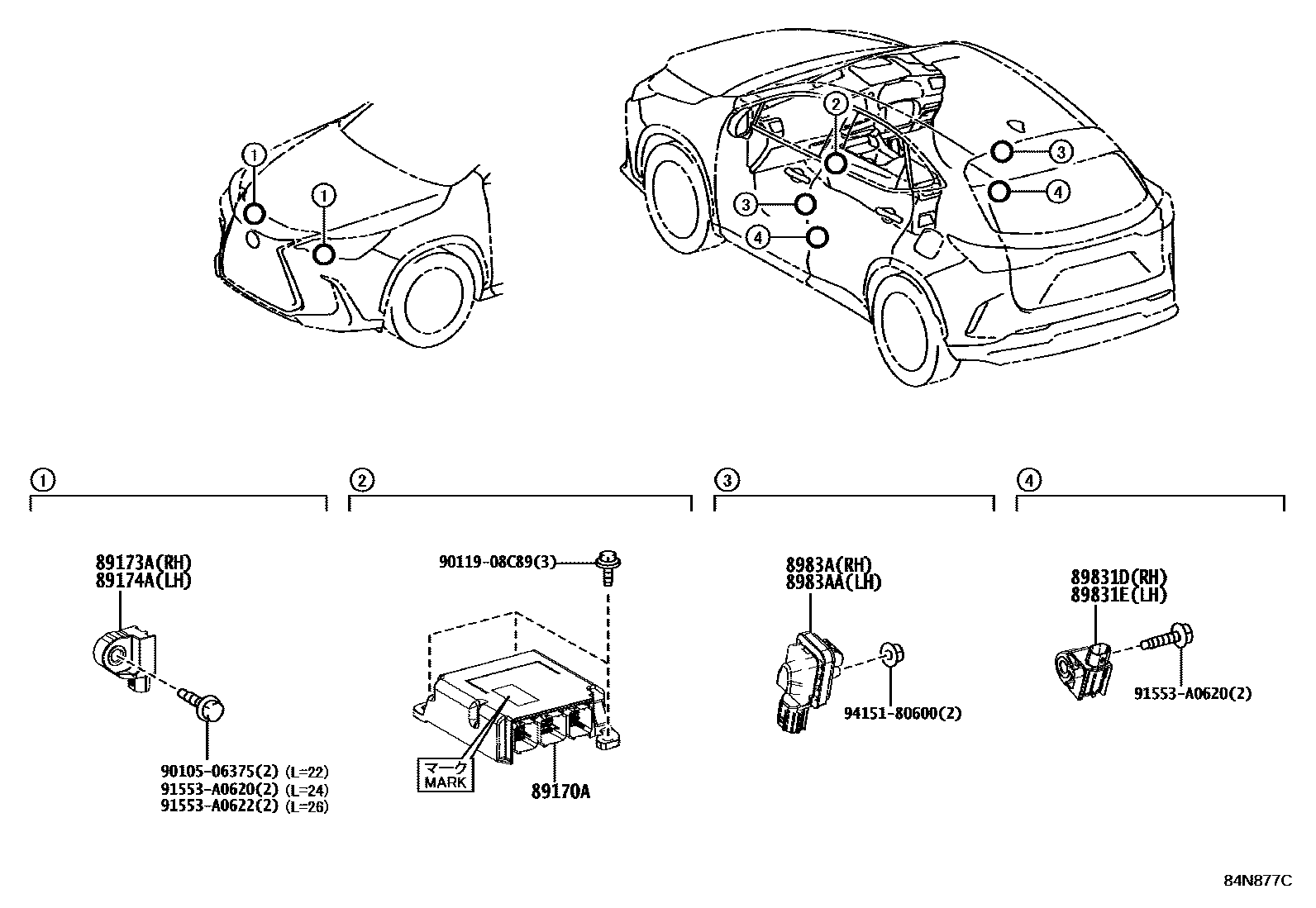

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
*614; ARMENIA SPEC,*614; BELARUS SPEC,*614; KAZAKHSTAN SPEC,*614; RUSSIA SPEC,*614
main89170-78150supersedes 89170-78130iAAZA20,AAZH20,21,25..CHI; AAZA25,TAZA25..EUR; AAZA25,TAZA25..GCC,GEN;AAZA20,AAZH20,25,26,MAZA20..EUR,GCC,GEN; AAZA25..EUR; TAZA25..EUR202111-202303
*614; *614,MARK89170-78150; AZB,GRZ SPEC,*614; CHILE SPEC,*614; MOLDOVA SPEC,*614; TAIWAN SPEC,*614; UKRAINE SPEC,*614; VIETNAM SPEC,*614
*614,MARK89170-78151
*614,MARK89170-78360; AZB,GRZ SPEC,*614,MARK89170-78360; MOLDOVA SPEC,*614,MARK89170-78360; TAIWAN SPEC,*614,MARK89170-78360; UKRAINE SPEC,*614,MARK89170-78360; VIETNAM SPEC,*614,MARK89170-78360
main89170-78380iAAZH26..RHD;AAZH26..LHD..EUR;AAZA25,TAZA25..GCC,GEN;AAZA20,AAZH20,25,MAZA20..EUR,GCC,GEN202305-202405
*614,MARK89170-78380
ARMENIA SPEC,*614; BELARUS SPEC,*614; KAZAKHSTAN SPEC,*614; RUSSIA SPEC,*614
*614,MARK89170-78350; ARMENIA SPEC,*614,MARK89170-78350; BELARUS SPEC,*614,MARK89170-78350; KAZAKHSTAN SPEC,*614,MARK89170-78350; RUSSIA SPEC,*614,MARK89170-78350
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831DSENSOR, FLOOR SIDE AIRBAG, RH
89831ESENSOR, FLOOR SIDE AIRBAG, LH
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
9010506375
main90105-06375
9011908C89
main90119-08C89
91553A0620
main91553-A0620
91553A0622
main91553-A0622
9415180600
main94151-80600
12 parts on this diagram · 2 diagrams in section
