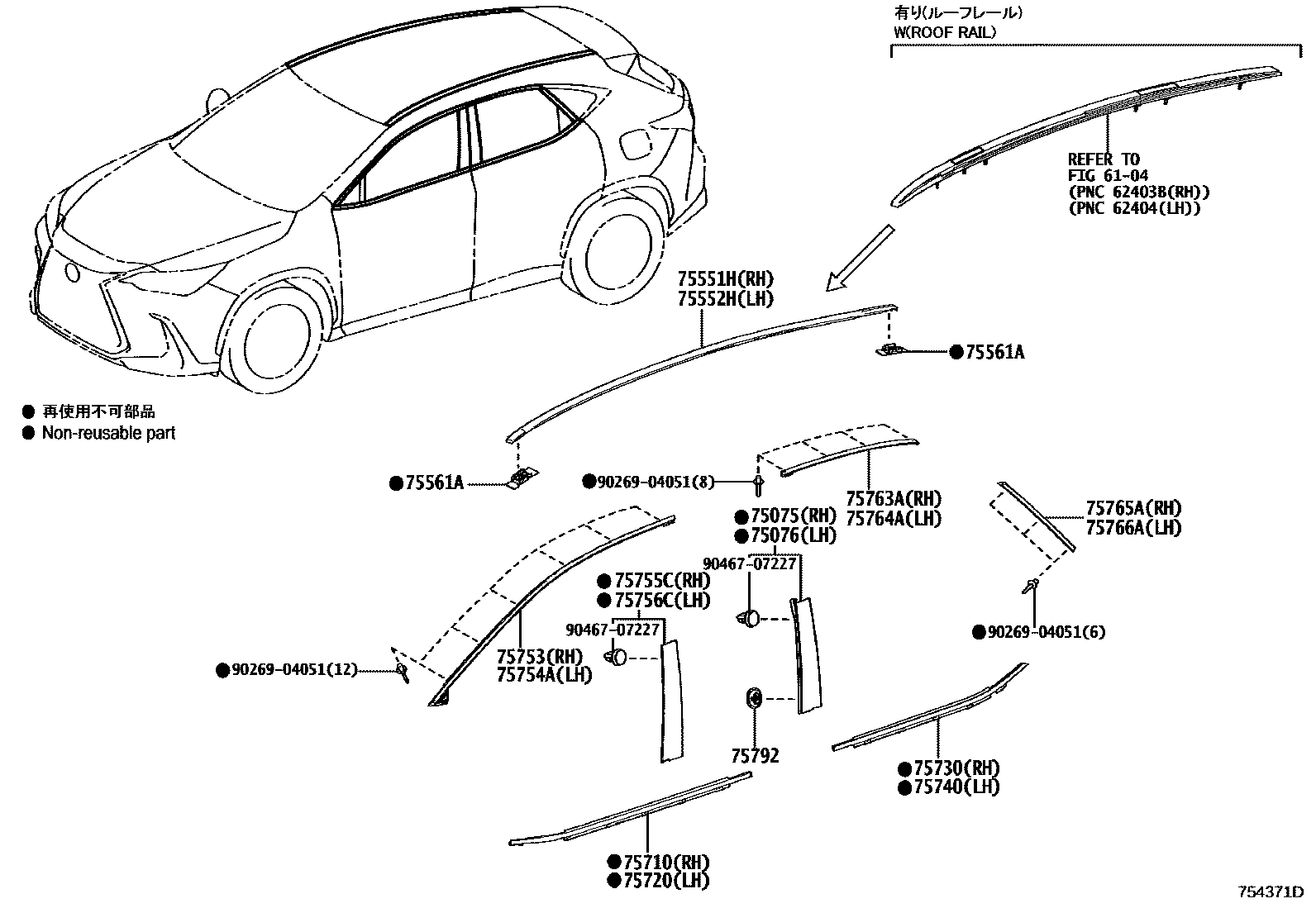

SIDE MOULDING

0001 1 0002 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-78020iAAZH25,TAZA25..GCC202111-202405

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-78020iAAZA2#202403-202506

75551HMOULDING, ROOF DRIP SIDE, RH

main75555-78020iAAZA2#202403-202404

ROOF RAIL-WITH

75552HMOULDING, ROOF DRIP SIDE, LH

main75556-78020iAAZH2#,MAZA20,TAZA25202403

ROOF RAIL-WITH

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020×4iAAZA2#202403-202404

ROOF RAIL-WITH

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-78020iAAZA2#202403-202506

main75710-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

DOOR FRAME MOULDING-WITH(BLACK)

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

main75720-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

DOOR FRAME MOULDING-WITH(BLACK)

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-78020iAAZH25,TAZA25..GCC202111-202405

main75730-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202111-202207

DOOR FRAME MOULDING-WITH(BLACK)

main75730-78041iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

DOOR FRAME MOULDING-WITH(BLACK)

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

main75740-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202111-202207

DOOR FRAME MOULDING-WITH(BLACK)

main75740-78041iAAZH20,25,26,TAZA25..CHI,EUR,GEN202207-202403

DOOR FRAME MOULDING-WITH(BLACK)

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

main75753-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

NO PAINT REQ.,DOOR FRAME MOULDING-WITH(BLACK)

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-78020iAAZH2#,MAZA20,TAZA25202403

NO PAINT REQ.

main75754-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

NO PAINT REQ.,DOOR FRAME MOULDING-WITH(BLACK)

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-78020iAAZH2#,MAZA20,TAZA25202403

NO PAINT REQ.

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-78020iAAZA2#202403-202506

NO PAINT REQ.

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-78020iAAZA2#202403-202506

main75763-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202111-202403

DOOR FRAME MOULDING-WITH(BLACK)

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-78020iAAZH2#,MAZA20,TAZA25202403

main75764-78040iAAZH20,25,26,TAZA25..CHI,EUR,GEN202403

DOOR FRAME MOULDING-WITH(BLACK)

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-78020iAAZH25,TAZA25..GCC202111-202405

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-78020iAAZH2#,MAZA20,TAZA25202403

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×2iAAZA2#202403-202506

9026904051

main90269-04051

9046707227

main90467-07227

21 parts on this diagram · 2 diagrams in section
