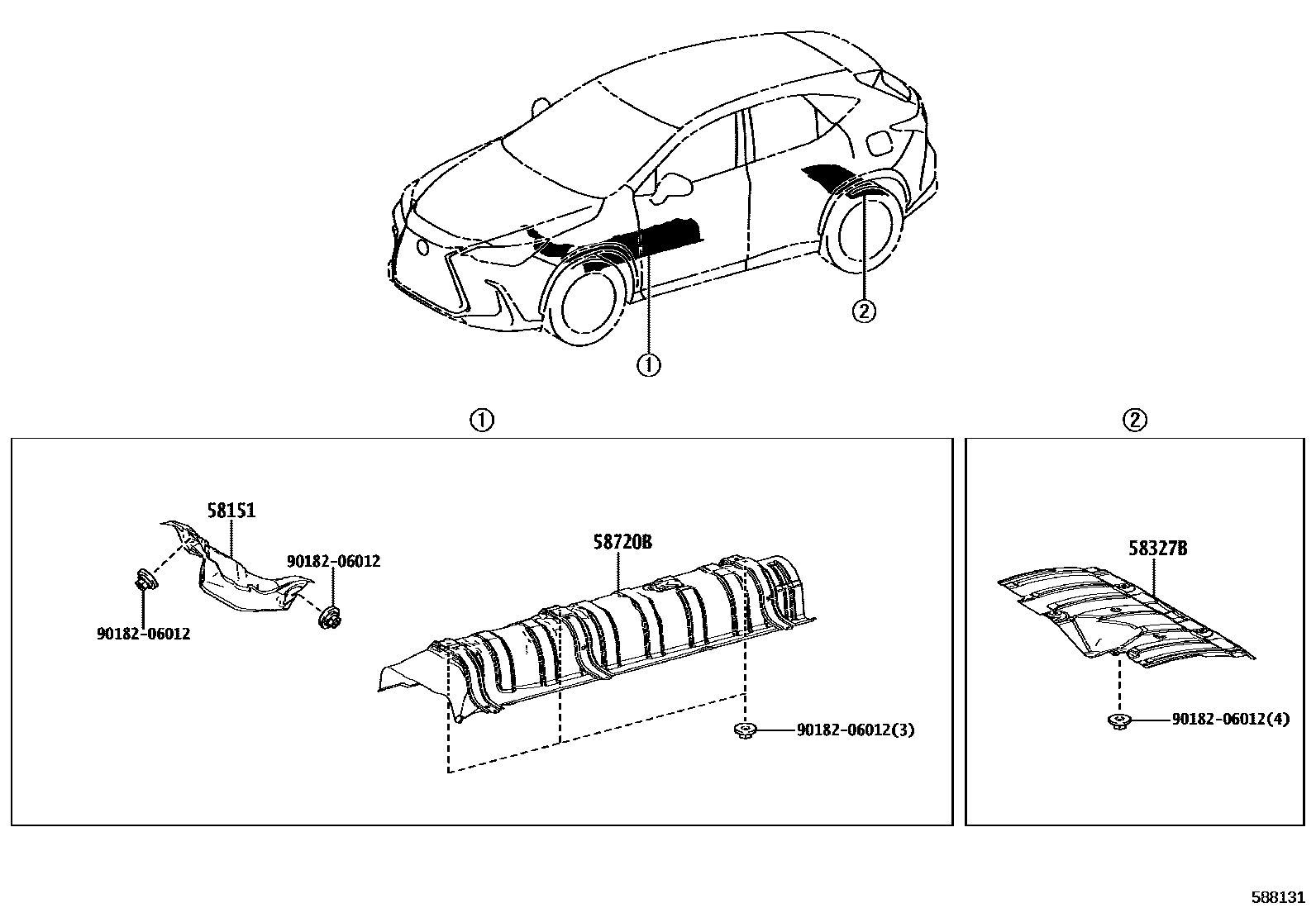

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42060iAAZH25..GCC202111-202405

main58151-42070iAAZH21,26202403

main58151-78010iTAZA25..GCC202111-202405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42040iAAZH21,26202111-202403

main58327-78070iAAZH25,TAZA25..GCC202111-202405

58720BCOVER ASSY, ENGINE SERVICE

main58720-42010iAAZA2#,MAZA20202111-202303

main58720-78010iTAZA25202403

main58720-78020iMAZA20202403

9018206012

main90182-06012

4 parts on this diagram · 4 diagrams in section
