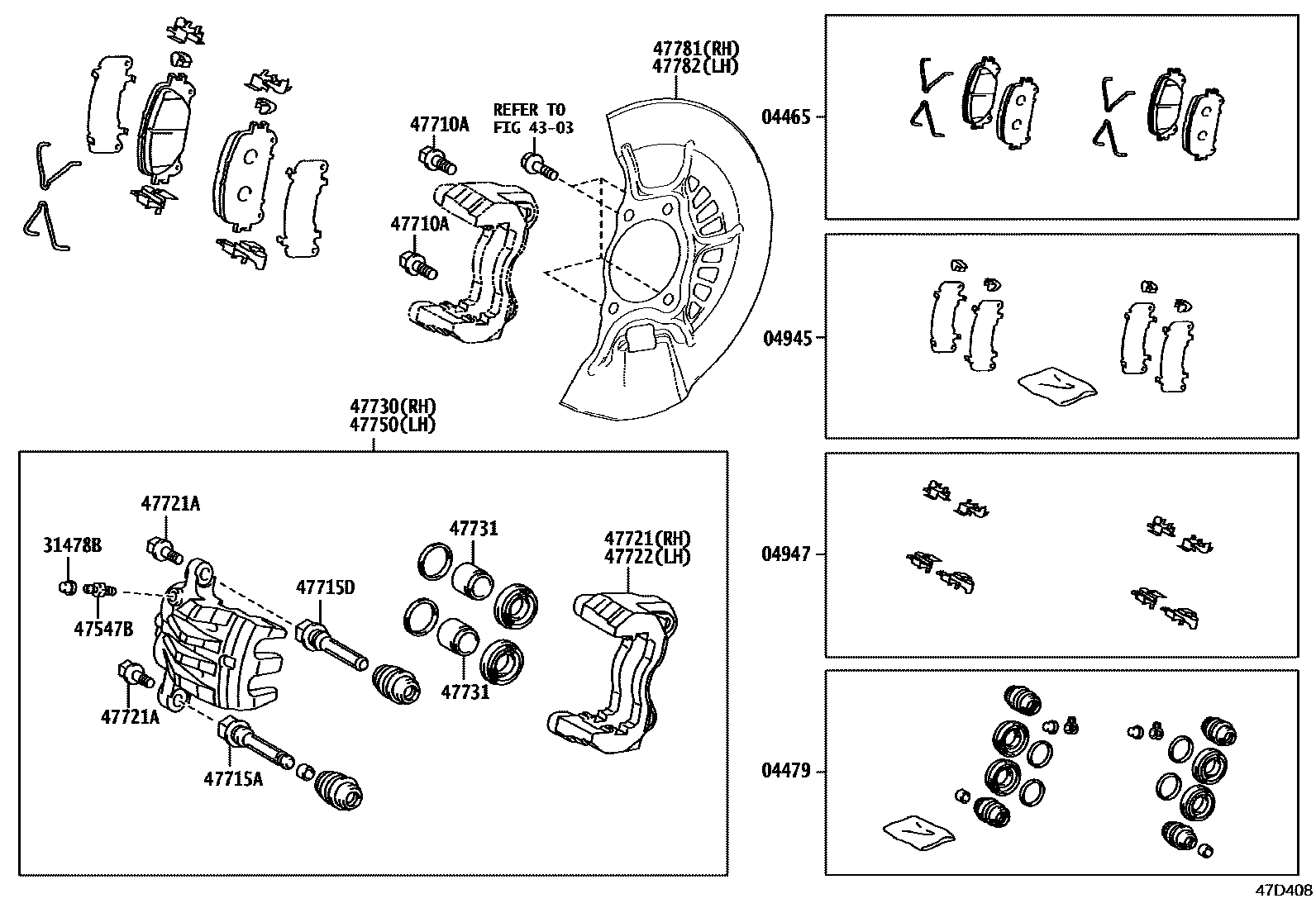

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1TYPE A 0002 1TYPE B 0003 1TYPE C 0004 1TYPE D

04465PAD KIT, DISC BRAKE, FRONT

main04465-48220iAAZH20,25..EUR202403

MARK AK NS380H,TYPE B:REFER ILLUST.

main04465-78010iMAZA20,TAZA25;AAZH20,25..CHI,GCC,GEN202403

MARK ADVICS VC084H,TYPE A:REFER ILLUST.

main04465-78020iAAZH26..LHD..EUR202403

MARK ADVICS VC084H,TYPE C:REFER ILLUST.

main04465-78030iAAZH26..EUR202403

MARK AKEBONO NS380H,TYPE D:REFER ILLUST.

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main04478-48200iAAZA2#202403-202506

TYPE A:REFER ILLUST.

main04478-48210iAAZH26..EUR202403

TYPE D:REFER ILLUST.

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42090iAAZH20,25..EUR202403

TYPE B:REFER ILLUST.

main04945-48150iMAZA20,TAZA25;AAZH20,25..CHI,GCC,GEN202403

TAIWAN SPEC,TYPE A:REFER ILLUST.

main04945-48190iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main04945-48200iAAZH26..EUR202111-202403

TYPE D:REFER ILLUST.

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAAZA2#202403-202506

TYPE A:REFER ILLUST.

main04947-48090iAAZH26..EUR202403

TYPE D:REFER ILLUST.

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iAAZA2#202403-202506

TYPE A:REFER ILLUST.

main47547-20010×2iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401×4iAAZH25,TAZA25..GCC202111-202405

*12-1.25PX35.5-30,TYPE A:REFER ILLUST.

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150×2iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main47715-48200×2iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48200×2iAAZH26..EUR202403

TYPE D:REFER ILLUST.

main47715-48150×2iAAZA2#202403-202506

TYPE A:REFER ILLUST.

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42130iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main47721-48150iMAZA20,TAZA25;AAZH20,25..CHI,GCC,GEN202403

TAIWAN SPEC,TYPE A:REFER ILLUST.

main47721-48200iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602×4iAAZH26..LHD..EUR202403

*8-1.00PX23-12.5,UKRAINE SPEC,TYPE C:REFER ILLUST.

main90015-AA605×4iAAZH26..EUR202111-202306

TYPE D:REFER ILLUST.

main90015-AA608×4iAAZH26..EUR202306-202403

*10-1.00PX23-9.4,TYPE D:REFER ILLUST.

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42130iAAZH20,25..EUR202111-202403

TYPE C:REFER ILLUST.

main47722-48140iAAZH25,TAZA25..GCC202111-202405

TYPE A:REFER ILLUST.

main47722-48170iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42130iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main47730-48150iAAZA2#202403-202506

TYPE A:REFER ILLUST.

main47730-48200iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47731PISTON, FRONT DISC BRAKE

main47731-48150×2iAAZH26..LHD..EUR202403

TAIWAN SPEC,TYPE A:REFER ILLUST.

main47731-48200×4iAAZH26..EUR202111-202403

TYPE D:REFER ILLUST.

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42130iAAZH26..LHD..EUR202403

TYPE C:REFER ILLUST.

main47750-48110iAAZA2#202403-202506

TYPE A:REFER ILLUST.

main47750-48170iAAZH26..EUR202403

TYPE D:REFER ILLUST.

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAAZH25,TAZA25..GCC202111-202405

17 parts on this diagram · 4 diagrams in section
