1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

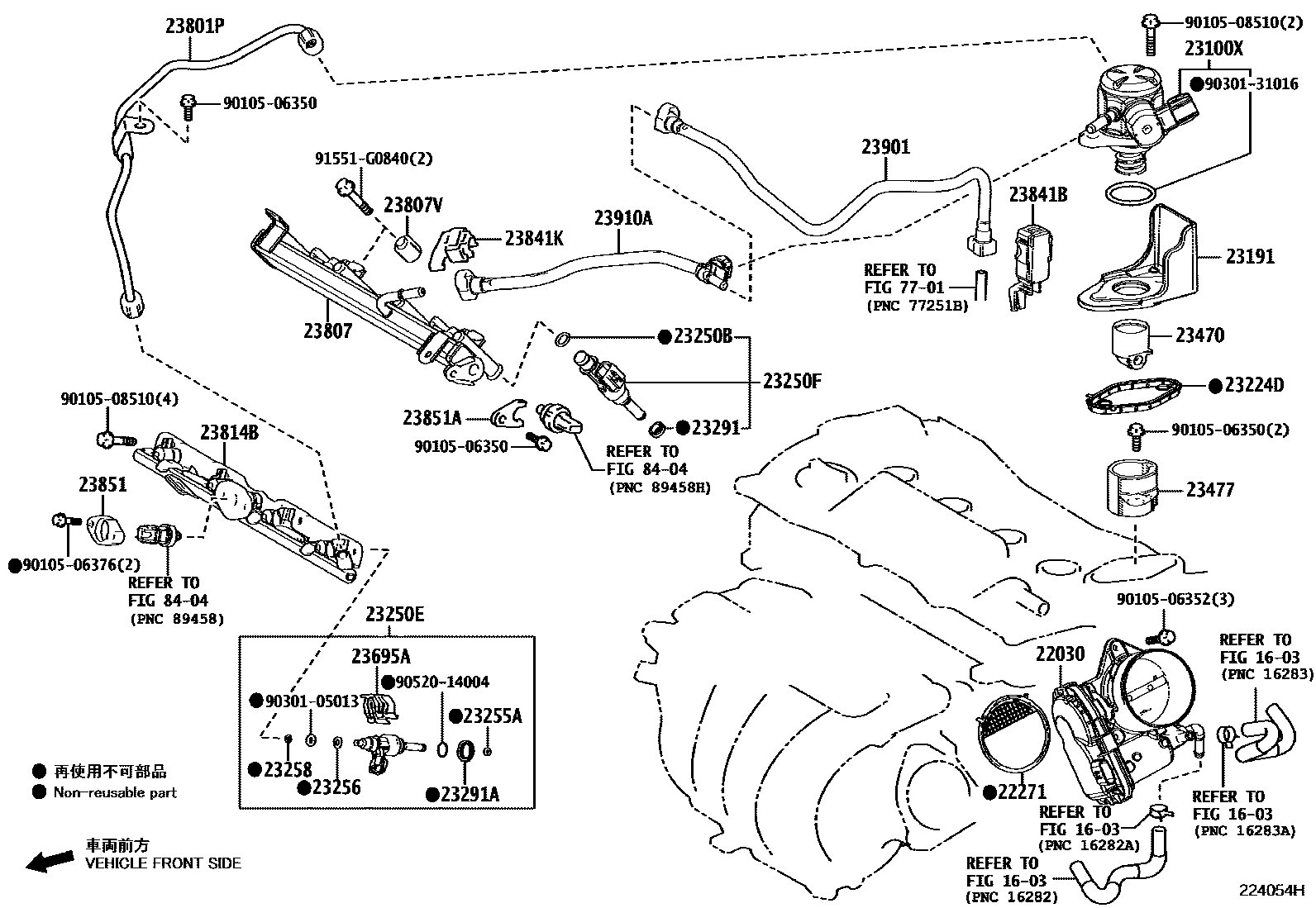

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i202403

main22030-25010i202111-202403

main22030-25020i202403

main22030-25030i202403

22271GASKET, THROTTLE BODY

main22271-24010i202201-202403

main22271-25010i202403-202506

main22271-25020i202111-202403

main22271-25030i202403

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202403-202506

main23101-25050i202403

23191FLANGE, FUEL PUMP

main23191-25050i202201-202403

main23191-25070i202403

23224DGASKET, FUEL PUMP SPACER

main23224-25011i202403

23250BRING, O(FOR FUEL INJECTOR)

main90301-04019×4i202111-202405

main90301-07037×4i202403

(J)

main90301-A0036×4i202111-202403

(L)

main90301-C0072×4i202111-202403

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i202201-202403

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×4i202403

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×4i202201-202403

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×4i202201-202403

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×4i202201-202403

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×4i202403

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×4i202403

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×4i202201-202403

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×4i202201-202403

MARK 9,REFER REPAIR MANUAL

main23209-25010-01×4i202403

MARK 1,REFER REPAIR MANUAL

main23209-25010-02×4i202111-202403

MARK 2,REFER REPAIR MANUAL

main23209-25010-03×4i202111-202405

MARK 3,REFER REPAIR MANUAL

main23209-25010-04×4i202403-202506

MARK 4,REFER REPAIR MANUAL

main23209-25010-05×4i202403-202506

MARK 5,REFER REPAIR MANUAL

main23209-25010-06×4i202111-202403

MARK 6,REFER REPAIR MANUAL

main23209-25010-07×4i202403-202506

MARK 7,REFER REPAIR MANUAL

main23209-25010-08×4i202111-202405

MARK 8,REFER REPAIR MANUAL

main23209-25010-09×4i202403

MARK 9,REFER REPAIR MANUAL

main23209-25070-01×4i202111-202403

MARK 1

main23209-25070-02×4i202111-202405

MARK 2

main23209-25070-03×4i202111-202405

MARK 3

main23209-25070-04×4i202403

MARK 4

main23209-25070-05×4i202403

MARK 5

main23209-25070-06×4i202111-202403

MARK 6

main23209-25070-07×4i202111-202405

MARK 7

main23209-25070-08×4i202403

MARK 8

main23209-25070-09×4i202403

MARK 9

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29165×4i202403

main23209-29175×4i202403-202506

main23209-29215×4i202111-202403

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202403

main23255-25020×4i202403

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202403-202506

main23256-25020×4i202111-202405

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-25020×4i202111-202403

main23258-31010×4i202111-202403

main23258-47010×4i202201-202403

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i202111-202403

23291AINSULATOR, INJECTOR VIBRATION

main23291-25020×4i202111-202403

main23291-31020×4i202403

23470LIFTER ASSY, FUEL PUMP

main23470-25010i202403

main23470-25020i202403

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202403

main23477-25020i202403

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202201-202403

main23695-25010×4i202403

main23695-25020×4i202403

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202201-202403

main23801-25031i202111-202403

main23801-25040i202403

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-25010i202111-202308

main23807-25011i202309-202403

main23814-24020i202403

main23814-25023i202111-202403

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2i202111-202403

23814BPIPE, FUEL DELIVERY

main23814-24010i202201-202210

main23814-24011i202211-202403

main23814-25010i202111-202210

main23814-25011i202403-202506

main23814-25040i202403

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-25040i202111-202403

main23841-31070i202403

23841KCLAMP, FUEL PIPE

main23841-25030i202403

main23841-25040i202403-202506

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-24010i202111-202405

main23851-25020i202111-202405

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202403

23901TUBE SUB-ASSY, FUEL

main23901-25101i202403

main23901-25121i202111-202405

main23901-25160i202111-202405

23910ATUBE SUB-ASSY, FUEL

main23901-24081i202403

main23901-25061i202403

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840
