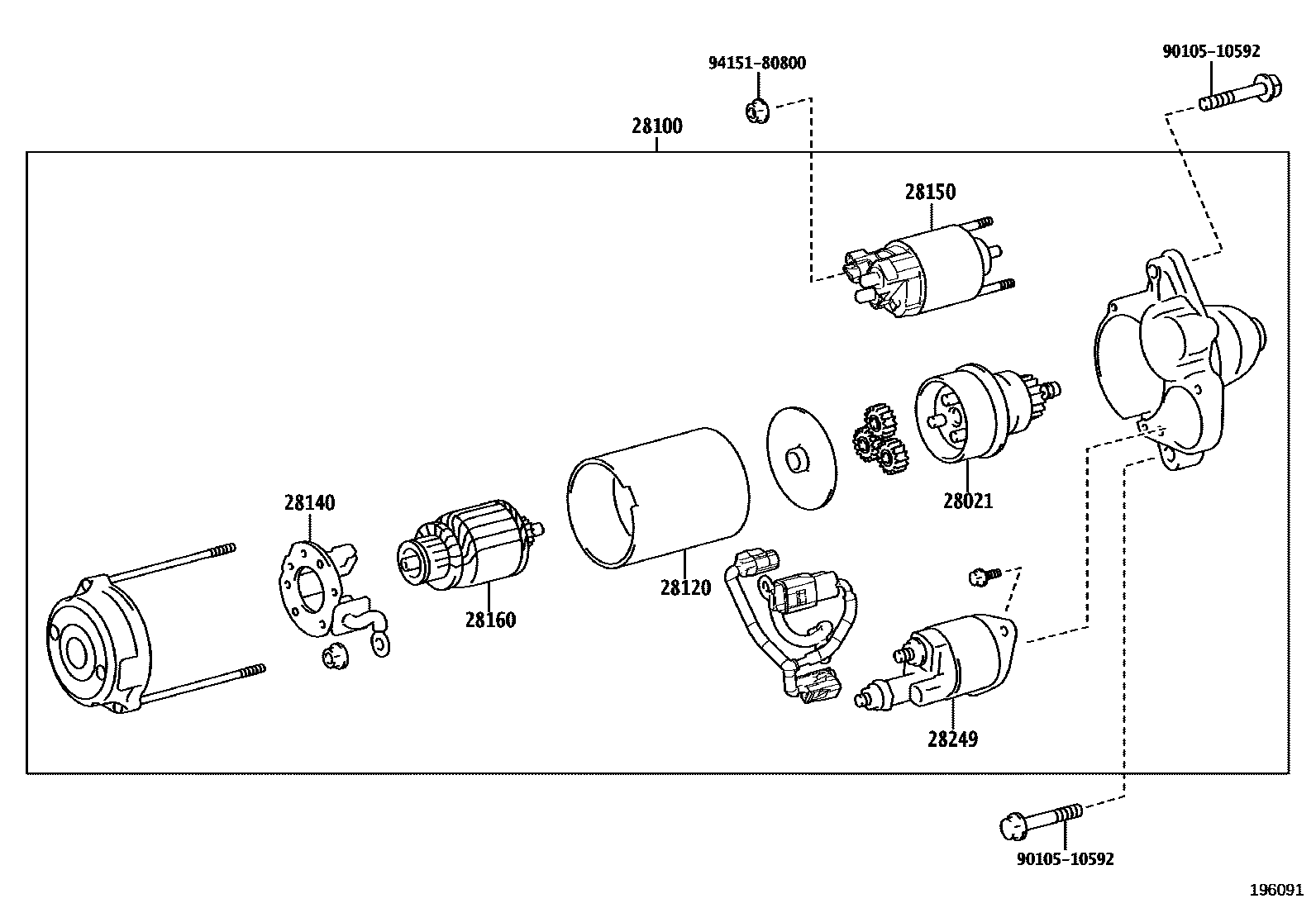

STARTER

0001 112V 1.7KW 0002 112V 1.2KW 0003 112V 1.5KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MAZA20202403

main28021-25070iA25AFKS..AAZA2#202403-202506

28100STARTER ASSY

main28100-24120iM20AFKS..MAZA20202201-202403

12V 1.2KW

main28100-24140iA25AFKS..AAZA2#202403-202506

12V 1.7KW

main28100-25120iT24AFTS..TAZA25202403

12V 1.5KW

28120YOKE ASSY, STARTER

main28120-25070iA25AFKS..AAZA2#202403-202506

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MAZA20202403

main28140-21100iA25AFKS,T24AFTS..AAZA2#,TAZA25..CHI,EUR,GEN202111-202403

main28140-25120iT24AFTS..TAZA25202403

28150SWITCH ASSY, MAGNET STARTER

main28150-47250iT24AFTS..TAZA25202403

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MAZA20202403

main28160-25120iT24AFTS..TAZA25202403

main28160-36110iA25AFKS,T24AFTS..AAZA2#,TAZA25..CHI,EUR,GEN202111-202403

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iA25AFKS..AAZA2#202403-202506

9010510592

main90105-10592

9415180800

main94151-80800

9 parts on this diagram · 3 diagrams in section
