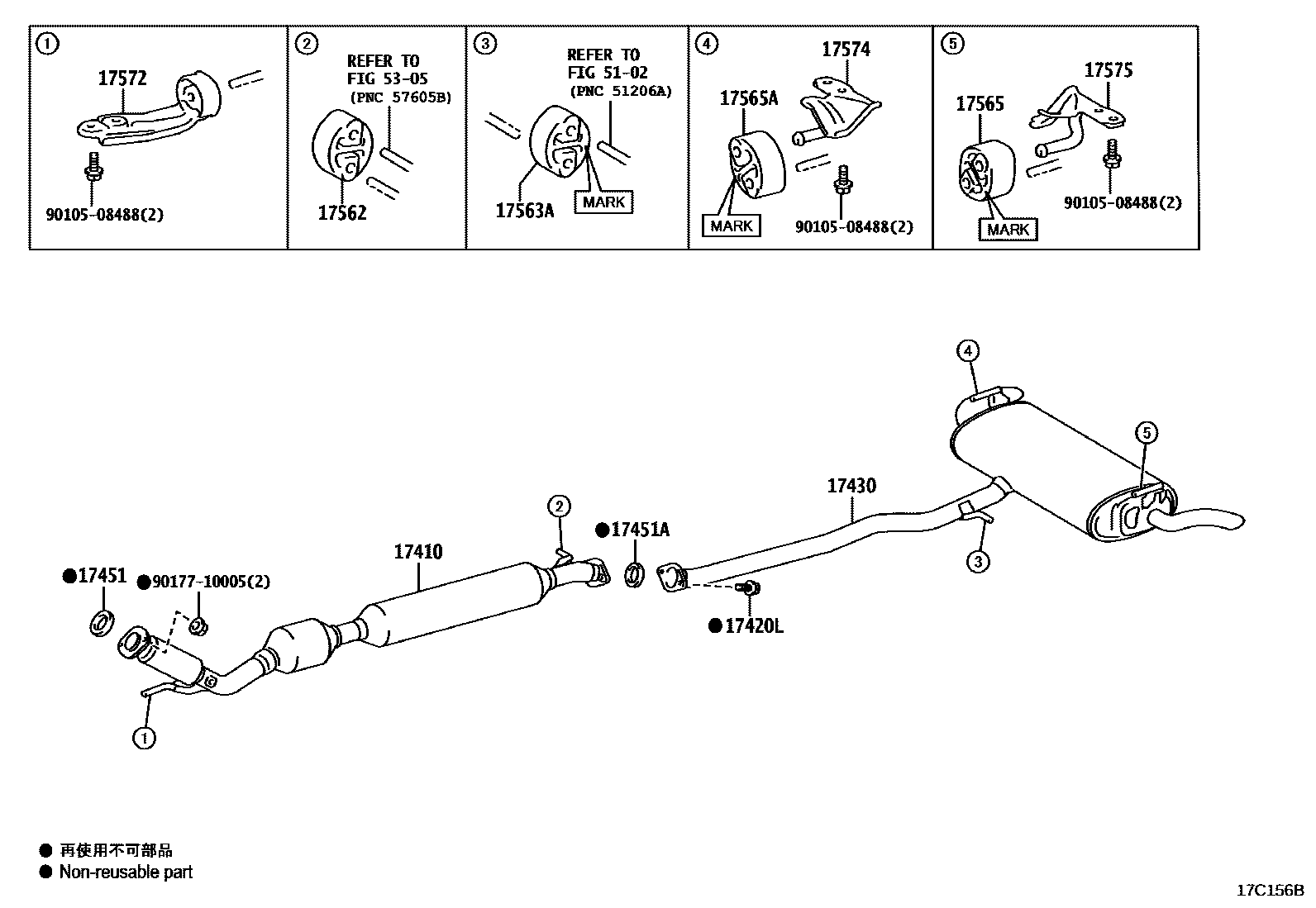

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
main17410-25280iA25AFXS..AAZH20,25..GCC,GEN; A25AFXS..AAZH20,25..LHD..EUR; A25AFXS..AAZH20..LHD..EUR; A25AFXS..AAZH25..LHD..EUR202111-202303
*114=TOYOTA/PB3/Y; *114=TOYOTA/PB3/Y,AZB,GRZ SPEC; *114=TOYOTA/PB3/Y,CHILE SPEC; *114=TOYOTA/PB3/Y,MOLDOVA SPEC; *114=TOYOTA/PB3/Y,MOROCCO SPEC; *114=TOYOTA/PB3/Y,TAIWAN SPEC; *114=TOYOTA/PB3/Y,UKRAINE SPEC; *114=TOYOTA/PB3/Y,VIETNAM SPEC
main17410-25370supersedes 17410-25390iA25AFKS..AAZA20..GEN; A25AFKS..AAZA25;A25AFKS..AAZA20..EUR202111-202403
*114=TOYOTA/AD1/Y; *114=TOYOTA/AD1/Y,HONG KONG SPEC; *114=TOYOTA/AD1/Y,INDONESIA SPEC; *114=TOYOTA/AD1/Y,MACAU SPEC; *114=TOYOTA/AD1/Y,SINGAPOLE SPEC
*114=TOYOTA/PC3/Y
*114=TOYOTA/PC3/Y
main17410-25670iA25AFXS..AAZH20,25..GCC,GEN; A25AFXS..AAZH20,25..LHD..EUR; A25AFXS..AAZH20..LHD..EUR; A25AFXS..AAZH25..LHD..EUR202303-202401
AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); VIETNAM SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
main17410-25810iA25AFXS..AAZH20,25..GEN; A25AFXS..AAZH20,25..LHD..EUR; A25AFXS..AAZH20..LHD..EUR; A25AFXS..AAZH25..LHD..EUR202401-202403
AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS); VIETNAM SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
main17410-25B80iA25AFXS..AAZH20,25..GCC,GEN; A25AFXS..AAZH20,25..LHD..EUR; A25AFXS..AAZH20..LHD..EUR; A25AFXS..AAZH25..LHD..EUR202403
AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS); MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS); VIETNAM SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)
AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS); TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRASIL L7,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRASIL L7,WITH(ON BOARD DIAGNOSIS)
TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS)
AUSTRALIA SPEC
AUSTRALIA SPEC
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
main17565-22040×2iA25#,M20AFKS..AAZA2#,AAZH2#,MAZA20..CHI,EUR,GEN; T24AFTS..TAZA25..EUR,GEN202111-202403
17563ASUPPORT, EXHAUST PIPE, NO.3
W/O MARK
MARK PURPLE
17565SUPPORT, EXHAUST PIPE, NO.5
W/O MARK
MARK PURPLE
17565ASUPPORT, EXHAUST PIPE, NO.4
W/O MARK
MARK PURPLE
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102SUSPENSION CROSSMEMBER & UNDER COVER
5305FLOOR SIDE MEMBER
9010508488
main90105-08488
9017710005
main90177-10005
16 parts on this diagram · 4 diagrams in section
