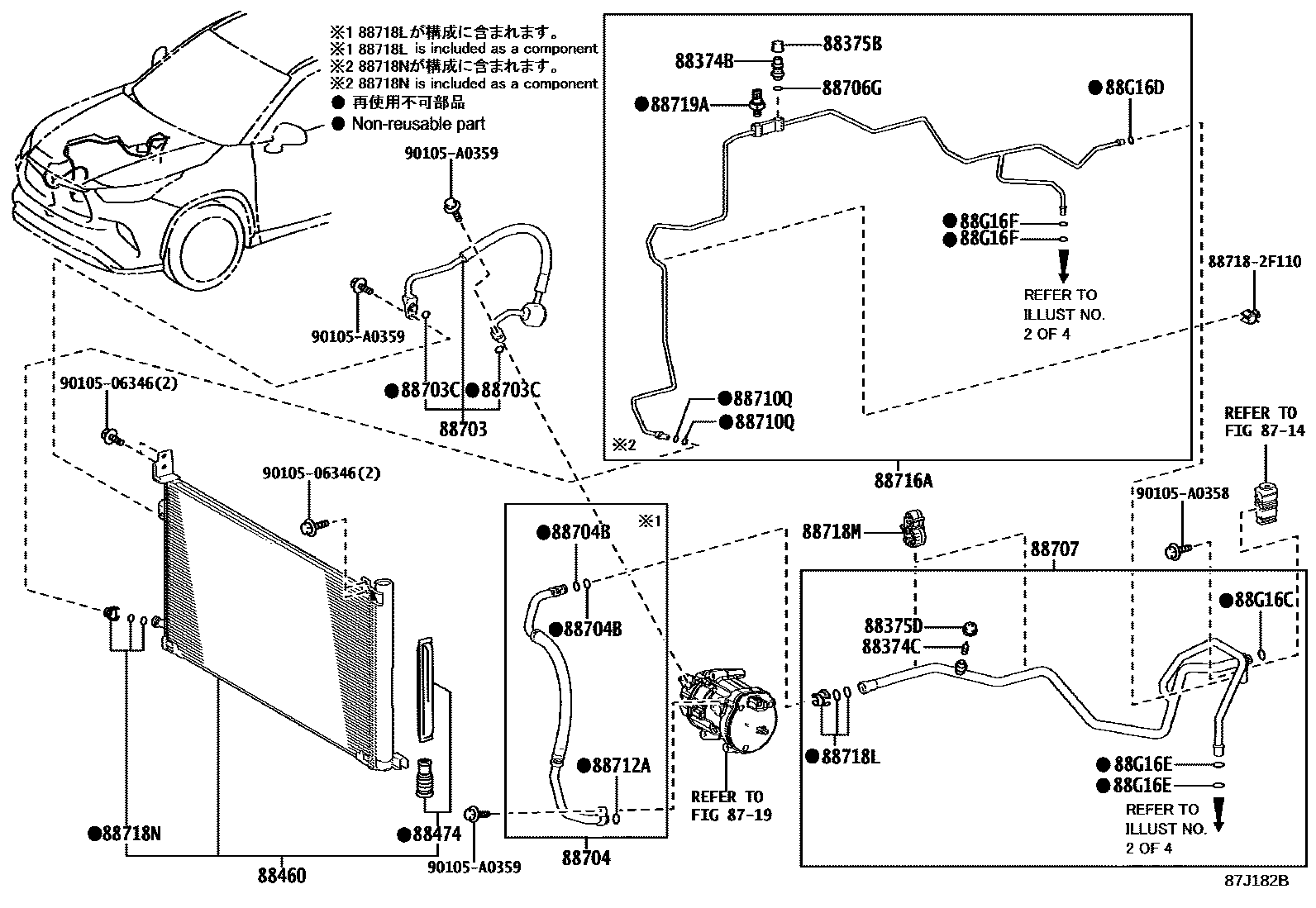

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
ID=10.6,OD=14.16
88707PIPE SUB-ASSY, SUCTION
88710TUBE ASSY, AIR CONDITIONER
88710QRING, O(FOR TUBE ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88G16CRING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88G16DRING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88G16ERING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
ID=6.7,OD=10.3
88G16FRING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F110
9010506346
main90105-06346
90105A0358
main90105-A0358
90105A0359
main90105-A0359
30 parts on this diagram · 23 diagrams in section
