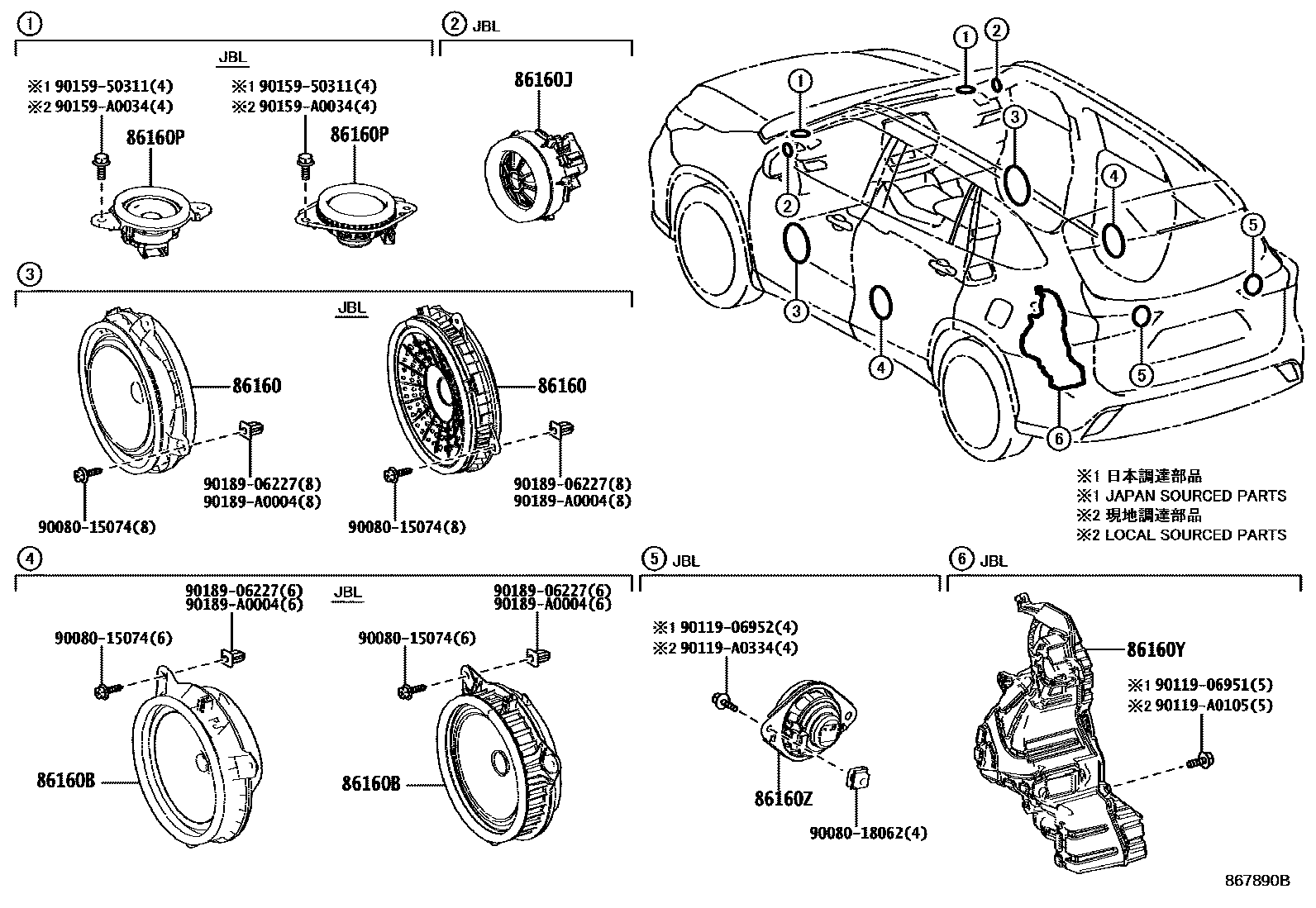

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06850×2supersedes 86160-0E340iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

(L)

main86160-0E340×2iAXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)202002-202210

main86160-33A10×2iAXUH78,TXUA7#..LIMD..ARL; AXUH78..RHD..EUR202210-202312

(J); AUDIO-12.3INCH T2 JBL11SPEAKER,(J)

86160BSPEAKER ASSY, REAR

main86160-02B40×2iAXUH7#..EUR,GCC;AXUH78,GSU7#..LE..(ARL,RUS)202002-202210

main86160-0WY50×2supersedes 86160-02B40iAXUH78,TXUA7#..LIMD..(ARL,RUS); AXUH78..LIMD..(EUR,GCC)202311

AUDIO-12.3INCH JBL11SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86150-07100×2iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

86160PSPEAKER ASSY, FRONT NO.2

main86160-06380×2iAXUH78..EUR,GCC;AXUH78..LE..ARL;AXUH70,TXUA7#..LE,XLE202311

main86160-06A40×2supersedes 86160-06380iAXUH7#..LHD..LIMD; TXUA75..LIMD..RUS202210-202311

AUDIO-12.3INCH T2 JBL11SPEAKER

86160YSPEAKER ASSY, REAR NO.2

main86150-0E060iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

86160ZSPEAKER ASSY, REAR NO.3

main86160-06A40×2iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

9008015074

main90080-15074

9008018062

main90080-18062

9011906951

main90119-06951

9011906952

main90119-06952

90119A0105

main90119-A0105

90119A0334

main90119-A0334

9015950311

main90159-50311

90159A0034

main90159-A0034

9018906227

main90189-06227

90189A0004

main90189-A0004

16 parts on this diagram · 1 diagram in section
