8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

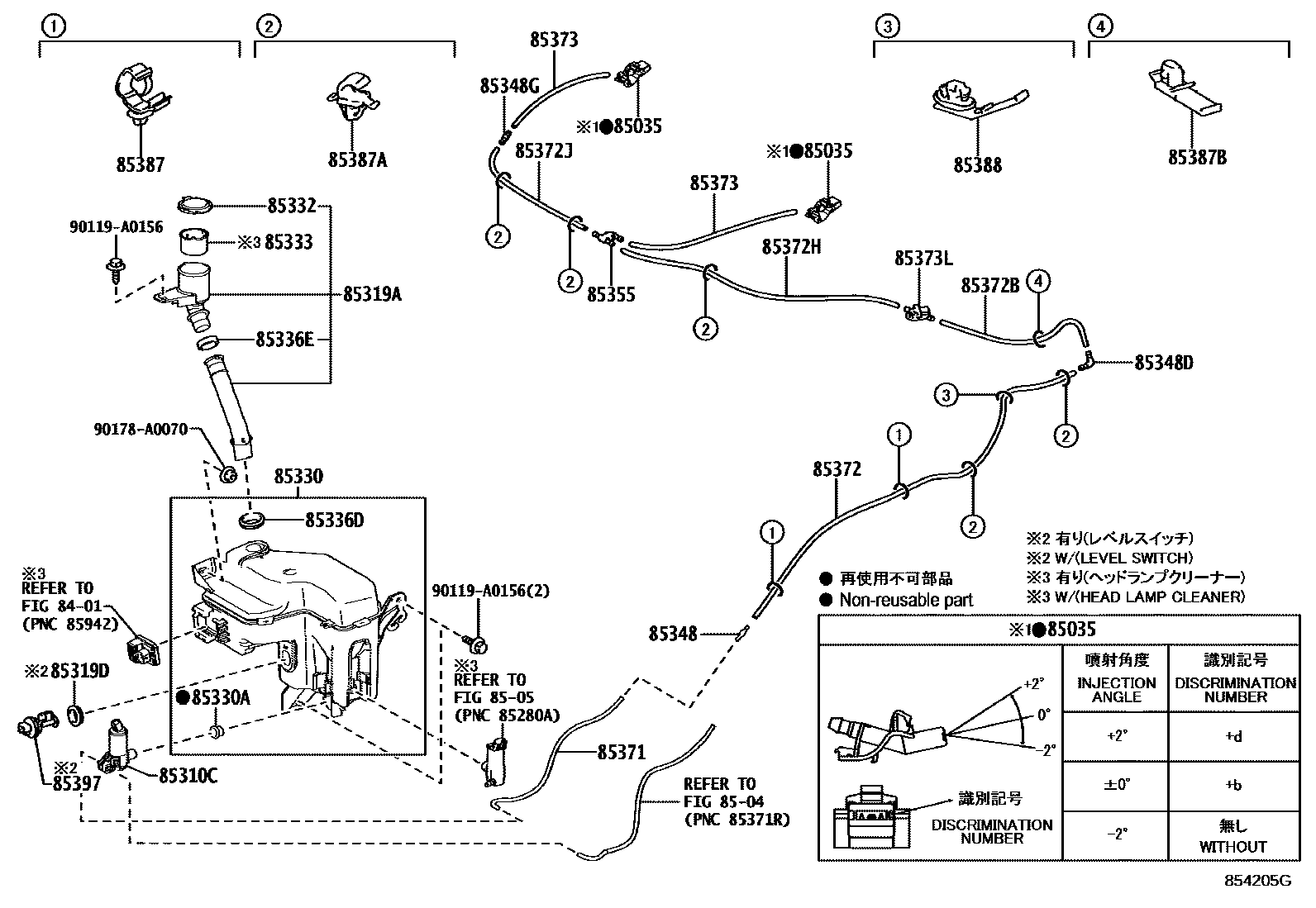

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202210-202312

ANGLE 0

main85381-30230×2i202311

ANGLE -2

main85381-30240×2i202210-202311

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310CMOTOR & PUMP ASSY, WASHER

main85330-0E031i202210-202311

85319AHOSE, INLET

main85301-0E030i202311-202410

85319DPACKING, FRONT WASHER

main85319-AA020i202311

85330JAR ASSY, WINDSHIELD WASHER

main85315-0E150i202210-202311

main85315-0E160i202002-202210

main85355-0E080i202210-202312

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202311-202410

85332CAP, WINDSHIELD WASHER JAR

main85316-0E030i202311-202410

85333FILTER, WINDSHIELD WASHER JAR

main85312-60050i202003-202210

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202002-202210

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202210-202311

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i202002-202210

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i202003-202210

main85375-02260i202210-202312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0E010i202210-202312

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202210-202312

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33360i202210-202311

L=375

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33365i202002-202210

L=900

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33011i202002-202210

L=1250(*H,L=340)

main90068-33017i202210-202312

L=1250(*H,L=340)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33333i202210-202312

L=590

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-33011i202002-202210

L=1250(*H,L=320)

main90068-33017i202311

L=1250(*H,L=320)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33011×2i202002-202210

L=1250(*H,L=320)

main90068-33017×2i202311

L=1250(*H,L=320)

85373LGROMMET, WASHER

main85373-12050i202210-202311

main85379-0E410i202311

PLATINUM PACKAGE; WINTER PACKAGE

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×2i202311

85387ACLAMP, WASHER, NO.2

main82711-48070i202210-202311

PLATINUM PACKAGE; WINTER PACKAGE

main85371-12040×5i202311-202410

85387BCLAMP, WASHER, NO.3

main82711-3A640i202311

main85371-12040i202003-202210

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-48070i202210-202312

main82711-52090i202210-202311

PLATINUM PACKAGE; WINTER PACKAGE

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202003-202210

90119A0156

main90119-A0156

90178A0070

main90178-A0070
