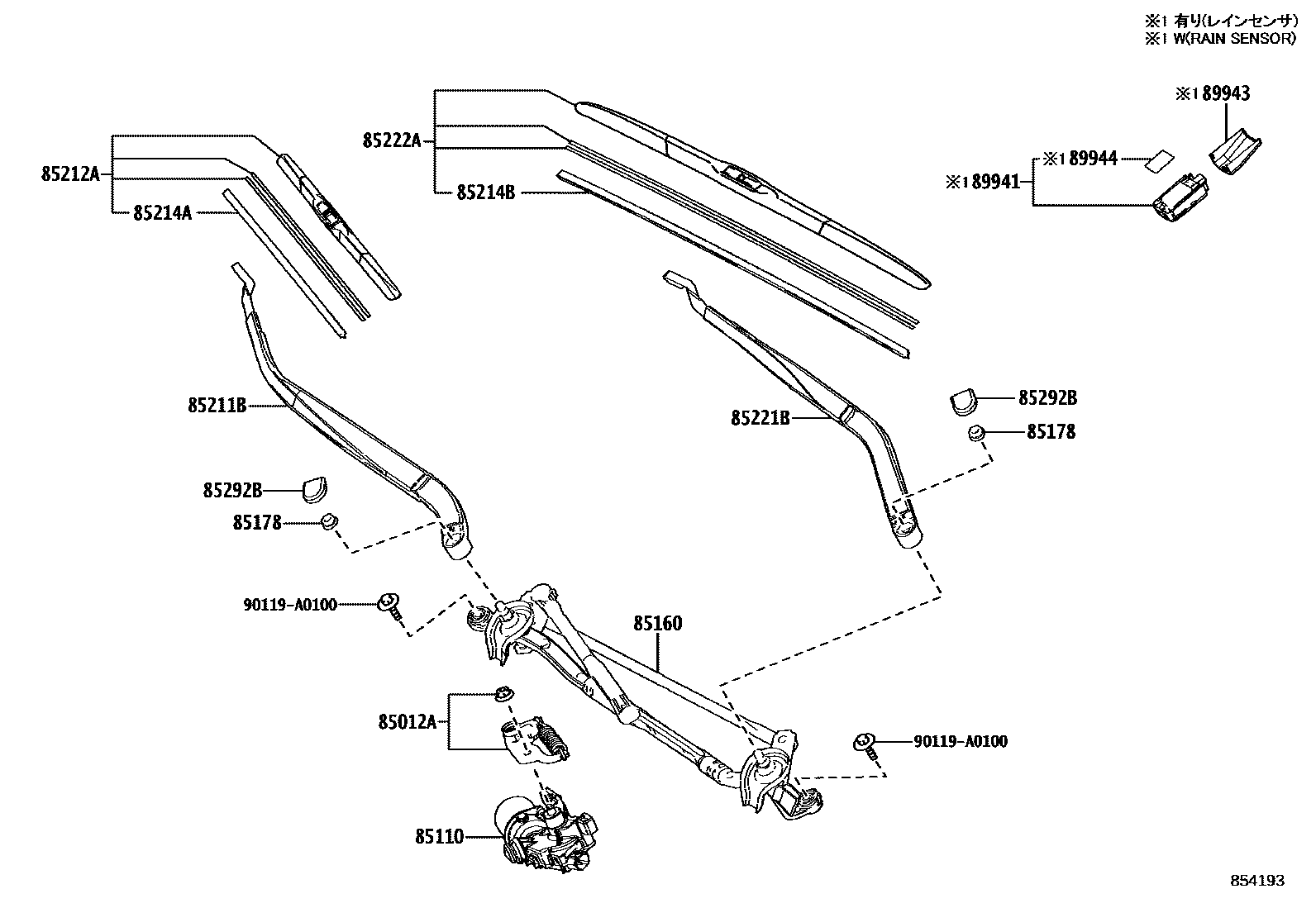

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAXUH70..LIMD202311-202410

main85012-58030iAXUH78,TXUA7#..RHD202210-202312

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0E110iAXUH78..RHD..EUR202011-202210

main85110-0E120iAXUH70..LIMD202311-202410

main85110-0E130iAXUH78,TXUA7#..ARL202401

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E110iAXUH70..LIMD202311-202410

main85150-0E120iAXUH78,TXUA7#..ARL202210-202312

main85150-0E130iAXUH78..RHD..EUR202011-202210

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2iAXUH7#,TXUA75..LHD202210-202311

85211BARM, FRONT WIPER, RH

main85211-0E090iAXUH70..LIMD202311-202410

main85211-0E110iAXUH78,GSU7#..ARL202012-202210

main85211-0E120iAXUH78..RHD..EUR202210-202312

85212ABLADE, FR WIPER, RH

main85212-0E090iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85212-0E100iAXUH78,TXUA7#..RHD202401

85214ARUBBER, WIPER, RH

main85214-0E130iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85214-0E151iAXUH78,TXUA7#..RHD202210-202312

85214BRUBBER, WIPER, LH

main85214-0E130iAXUH78,TXUA7#..RHD202401

main85214-0E151iAXUH7#,GSU75..LHD202002-202210

85221BARM, FRONT WIPER, LH

main85221-0E110iAXUH7#,TXUA75..LHD202210-202311

main85221-0E120iAXUH78,TXUA7#..RHD202210-202312

85222ABLADE, FR WIPER, LH

main85222-0E090iAXUH7#,TXUA75..LHD202210-202311

main85222-0E100iAXUH78,TXUA7#..RHD202401

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iAXUH70..LIMD202311-202410

89941SENSOR, RAIN

main89941-11010iAXUH78..ARL,EUR;AXUH7#..LIMD..GCC202002-202110

main89941-33060iGSU7#202003-202210

89943COVER, RAIN SENSOR

main89943-48030iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202210

89944TAPE, RAIN SENSOR

main89944-42020iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202210

90119A0100

main90119-A0100

15 parts on this diagram · 2 diagrams in section
