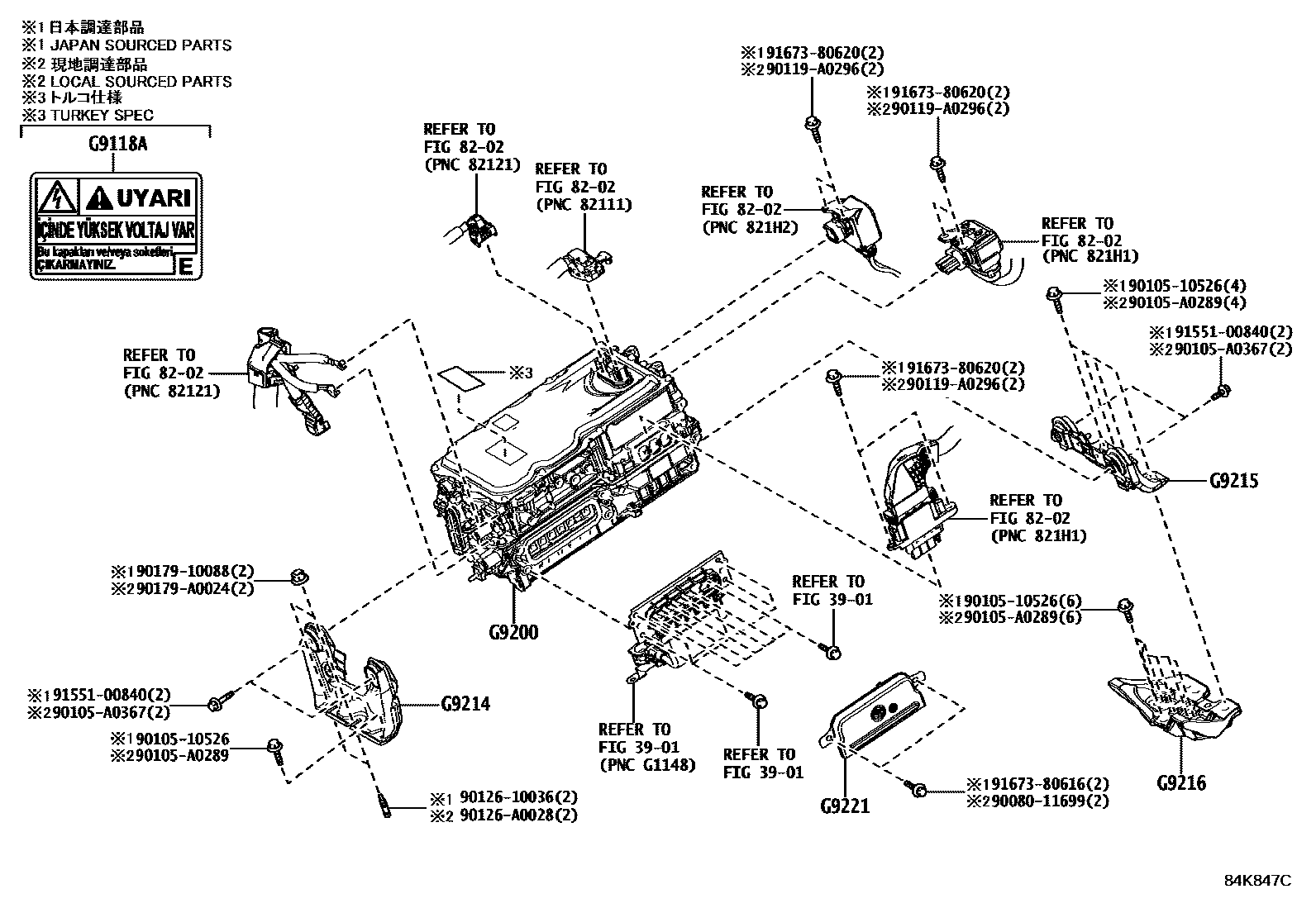

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911852010iAXUH78..LHD..EUR202011-202210

TURKEY SPEC

G9200INVERTER ASSY, W/CONVERTER

mainG92A048210iAXUH78202210-202303

mainG92A048211iAXUH78..RHD202303-202312

mainG92A048220iAXUH70202002-202210

mainG92A048221iAXUH70202303-202311

mainG92A048450iAXUH78202311-202404

mainG92A048451iAXUH78202405

mainG92A048460iAXUH70202311-202404

mainG92A048461iAXUH70..LIMD202405-202410

G9214BRACKET, INVERTER, NO.1

mainG921448070iAXUH70..LIMD202311-202410

G9215BRACKET, INVERTER, NO.2

mainG921542010iAXUH7#202002-202210

G9216BRACKET, INVERTER, NO.3

mainG92160E020iAXUH7#202002-202210

G9221COVER, INVERTER

mainG902247050iAXUH7#202002-202210

9008011699

main90080-11699

9010510526

main90105-10526

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0296

main90119-A0296

9012610036

main90126-10036

90126A0028

main90126-A0028

9017910088

main90179-10088

90179A0024

main90179-A0024

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

20 parts on this diagram · 1 diagram in section
