SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1CONSOLE BOX 0018 1CONSOLE BOX 0019 1CONSOLE BOX 0021 1CONSOLE BOX 0022 1STEERING 0023 1STEERING 0024 1SEAT 0025 1SEAT 0026 1DOOR & ROOF 0027 1FLOOR & BACK DOOR 0028 1FLOOR & BACK DOOR 0029 1FLOOR RELAY BLOCK

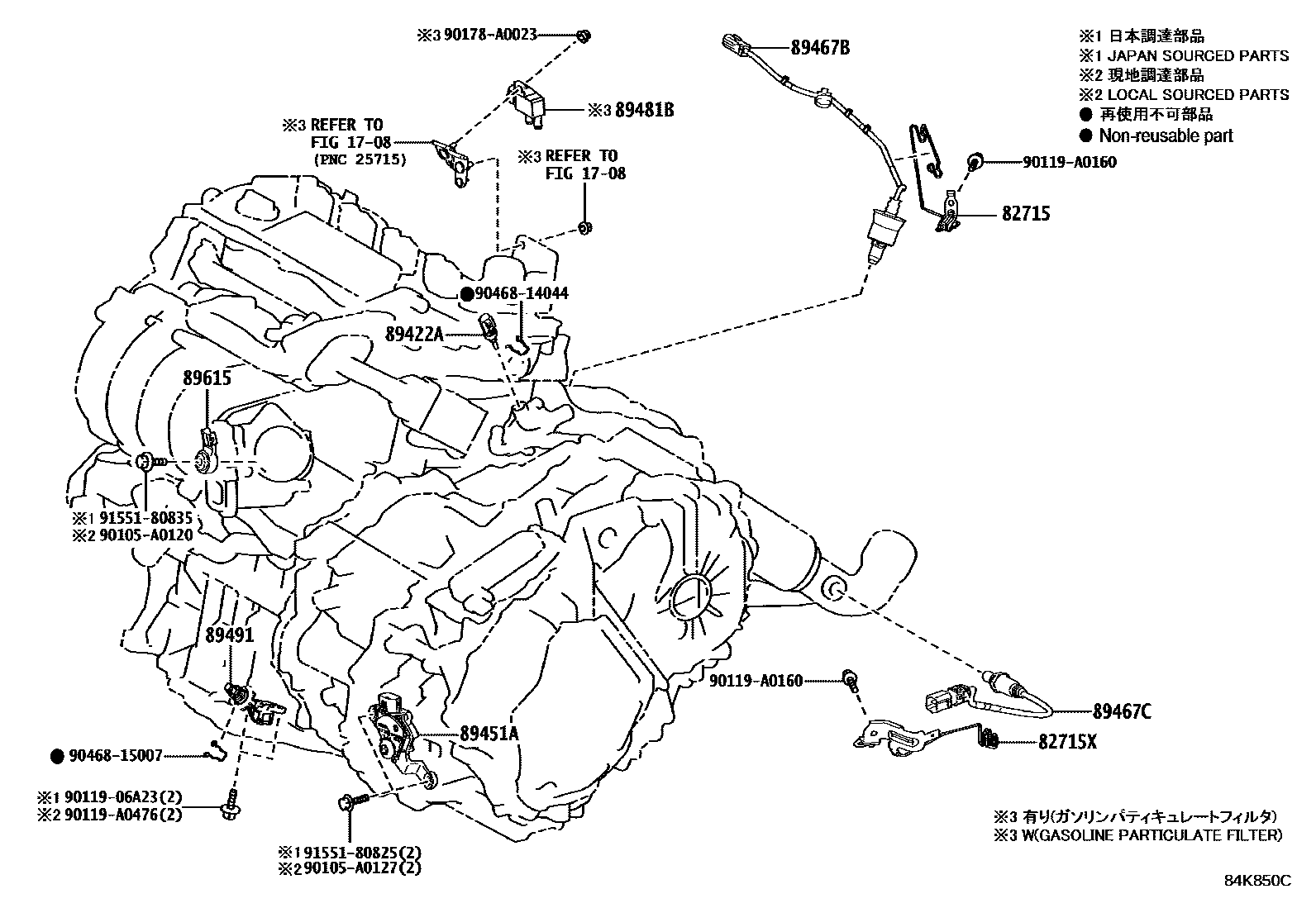

1708

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAXUH7#202002-202410

main82715-48Q00iGSU7#202003-202210

main8946A-48110iTXUA7#202210-202312

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-42K60iAXUH7#..LHD202002-202410

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH70..LIMD202002-202410

main89422-47010iGSU7#202003-202210

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXUH7#202002-202410

89467BSENSOR, AIR FUEL RATIO

main89467-0E280iAXUH78..RHD202002-202410

main89467-0E290iGSU7#202003-202210

main89467-0E450iTXUA7#202210-202312

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E270iGSU7#202003-202210

main89467-0R100iAXUH70..LIMD202002-202410

main89467-F6020iTXUA7#202210-202312

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iAXUH78..RHD..EUR202011-202312

main89481-K0010iAXUH78..EUR202311

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXUH7#202002-202204

sub89491-33052

main89491-33052iAXUH70..LIMD202205-202410

main89491-48040iGSU7#202003-202204

sub89491-48041

main89491-48041iGSU7#202205-202210

89615SENSOR, KNOCK CONTROL

main89615-06010iAXUH7#202002-202210

MARK 89615-06010

main89615-06010iGSU7#202003-202210

(L)

main89615-20090iGSU7#202003-202210

(J)

main89615-20090iAXUH7#202002-202210

MARK 89615-20090

main89615-78010iAXUH7#202207-202210

MARK 89615-78010

main89615-78010iAXUH7#,TXUA75..LHD202210-202410

(J)

main89615-F6010iAXUH78,TXUA7#..RHD202210-202410

(L)

main89615-F6010iAXUH7#202207-202210

MARK 89615-F6010

90105A0120

main90105-A0120

90105A0127

main90105-A0127

9011906A23

main90119-06A23

90119A0160

main90119-A0160

90119A0476

main90119-A0476

90178A0023

main90178-A0023

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

20 parts on this diagram · 25 diagrams in section
