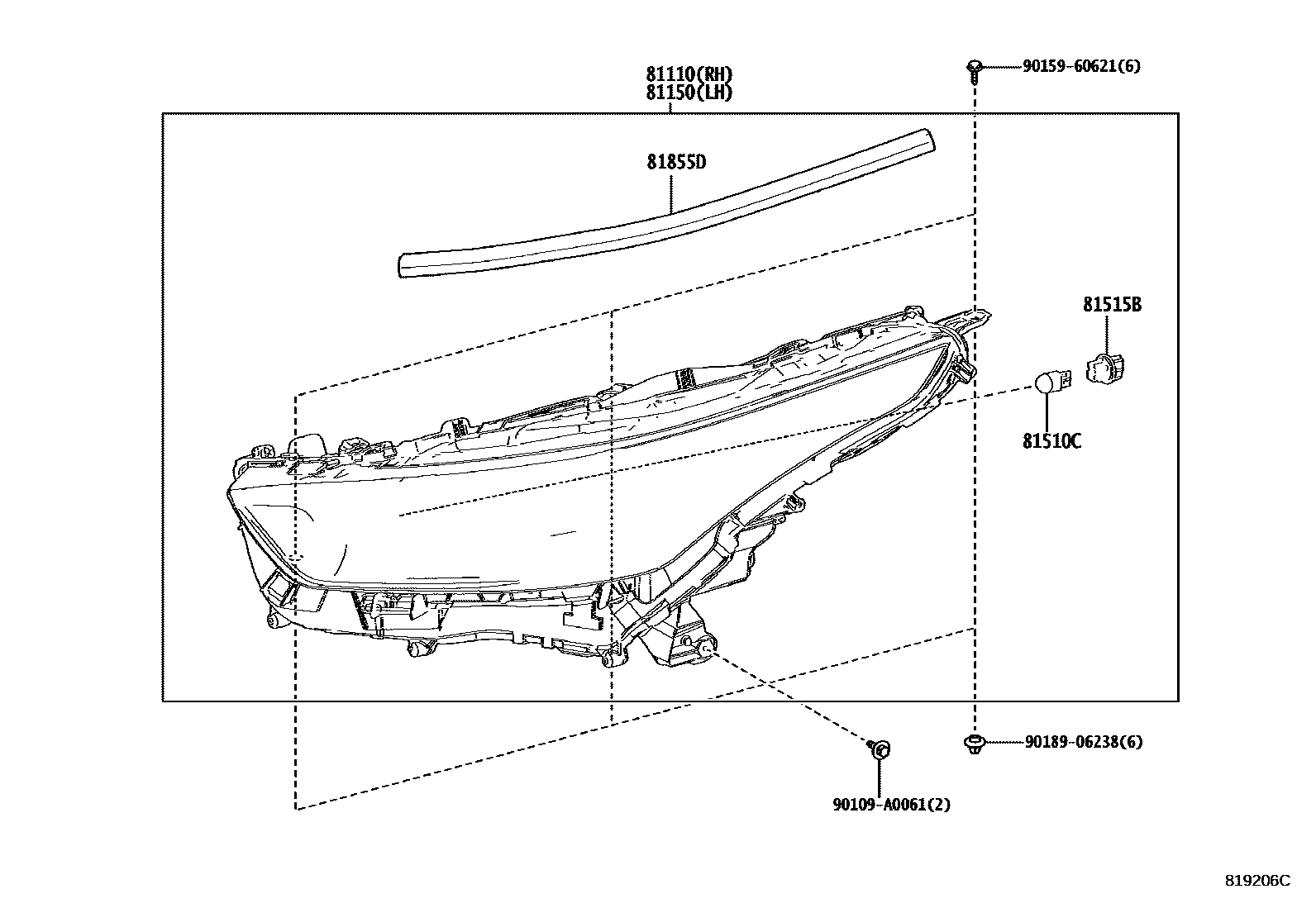

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0E490iAXUH78,GSU7#..RHD..(LE,XLE)202011-202210

main81110-0E510iAXUH7#,GSU75..LHD..(LE,XLE)202002-202210

main81110-0E511iAXUH7#,TXUA75..LHD..(LE,XLE)202312

main81110-0E520iAXUH7#,TXUA75..LHD..LIMD202311-202312

main81110-0E521iAXUH78,TXUA75..LHD..LIMD202312

main81110-0E550iAXUH78,GSU7#..RHD..LIMD202011-202210

main81110-0E551iAXUH78,TXUA7#..RHD..LIMD202401

81150HEADLAMP ASSY, LH

main81150-0E490iAXUH78,TXUA7#..LE..ARL202401

main81150-0E510iAXUH7#,GSU75..LHD..(LE,XLE)202002-202210

main81150-0E511iAXUH7#,TXUA75..LHD..(LE,XLE)202312

main81150-0E520iAXUH7#,GSU75..LHD..LIMD202002-202210

main81150-0E521iAXUH78,TXUA75..LHD..LIMD202312

main81150-0E550iAXUH78,TXUA7#..RHD..LIMD202210-202312

main81150-0E551iAXUH78,TXUA7#..RHD..LIMD202401

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iAXUH78,TXUA7#;AXUH70..LE,XLE202311

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iAXUH7#,GSU7#202002-202210

81855DPROTECTOR, HEADLAMP

main81117-0E420×2iAXUH7#,GSU7#202002-202210

90109A0061

main90109-A0061

9015960621

main90159-60621

9018906238

main90189-06238

8 parts on this diagram · 1 diagram in section
