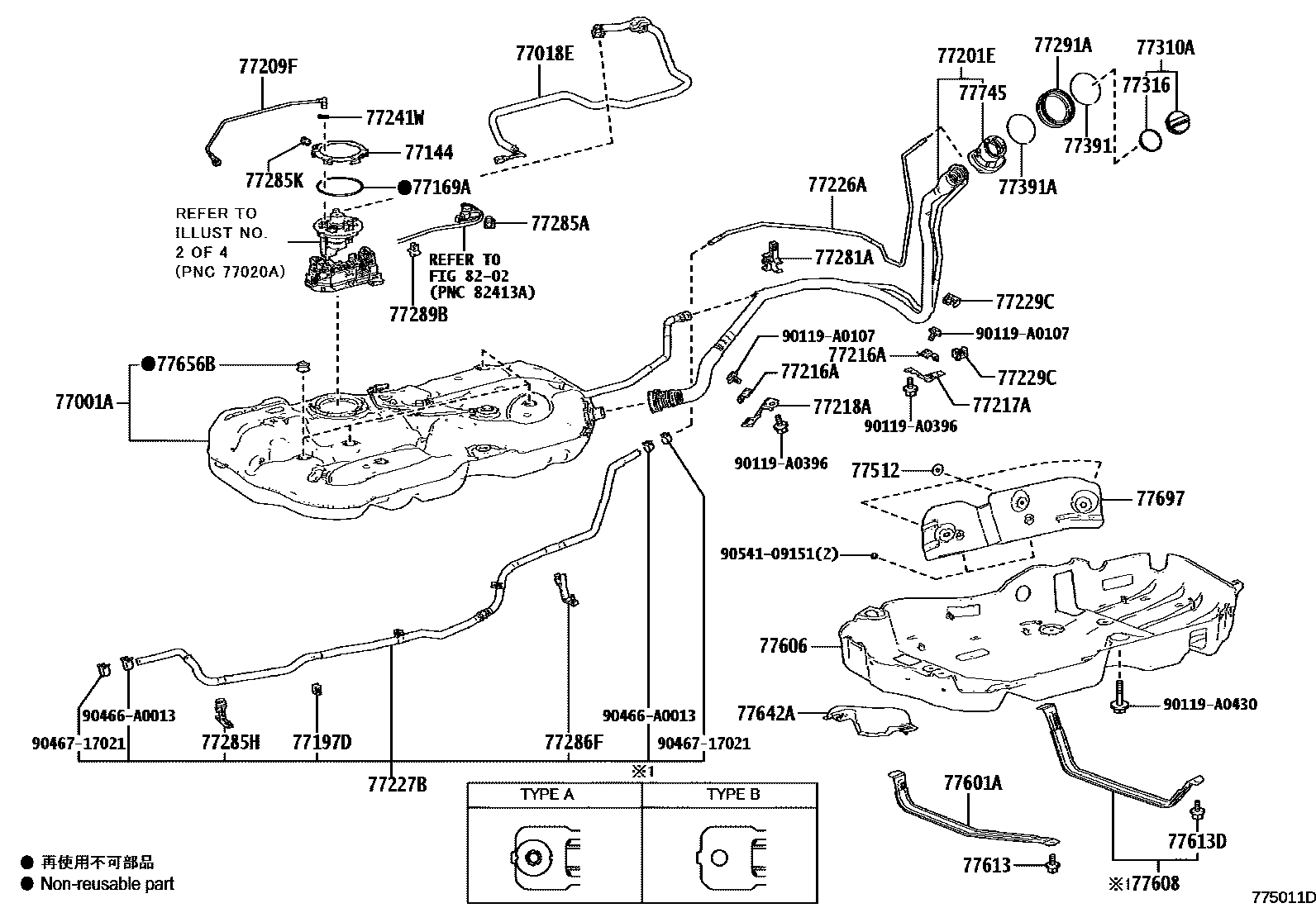

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL SUCTION TUBE(PUMP & GAGE0005 1FUEL SUCTION TUBE(PUMP & GAGE0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0E150iTXUA7#..ARL202210-202312

main77001-0E170iAXUH7#202002-202104

main77001-0E171iAXUH78..RHD202210-202312

main77001-0E172iAXUH7#202104-202110

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0E070iTXUA75..RUS202210-202311

main77018-0E090iAXUH78..RHD202210-202312

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iAXUH7#,TXUA75..LHD202210-202311

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R030iAXUH7#,GSU7#202002-202210

main77169-F4050iAXUH7#,TXUA7#202308-202312

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iAXUH7#..LHD202210-202311

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0E160iTXUA7#..ARL202210-202312

main77201-0E180iAXUH70..LIMD202311-202410

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E120iGSU7#202003-202210

main77209-0E140iAXUH7#..LHD202210-202311

main77209-0E210iTXUA75..RUS202210-202311

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0E070×2iAXUH7#,GSU7#202002-202210

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0E070iAXUH78,TXUA7#..RHD202210-202312

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0E110iTXUA75..RUS202210-202311

main77218-0E120iAXUH7#202002-202210

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0E120iAXUH7#,TXUA75..LHD202210-202311

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-0E080iTXUA75..RUS202210-202311

main77227-0E100iAXUH78;AXUH70..LE,XLE202311

77229CCLAMP, BREATHER TUBE

main77229-0E060×2iAXUH70..LIMD202311-202410

77241WCLIP, TUBE JOINT

main77241-06020iAXUH7#,GSU7#202002-202210

77281ACLAMP, FUEL FILLER PIPE

main77281-0E180iAXUH7#,GSU7#202002-202210

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-0E100iAXUH70..LIMD202311-202410

77285HCLAMP, FUEL TUBE, NO.1

main77285-0R080iAXUH7#202002-202210

77285KCLAMP, FUEL TUBE, NO.1

main77285-06240iAXUH70..LIMD202311-202410

77286FCLAMP, FUEL TUBE, NO.2

main77286-0E110iAXUH78,TXUA7#..RHD202210-202312

77289BCLAMP, FUEL TUBE, NO.3

main77289-33080iAXUH7#202002-202210

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0E090iAXUH7#,GSU7#202002-202210

77310ACAP ASSY, FUEL TANK

main77300-12020iAXUH78,TXUA7#;AXUH70..LE,XLE202311

77316GASKET, FUEL TANK CAP

main77316-52040iAXUH7#,GSU7#202002-202210

77391RING, FUEL INLET BOX

main77391-02041iAXUH7#,TXUA75..LHD202210-202311

77391ARING, FUEL INLET BOX

main77391-0E020iAXUH78,TXUA7#;AXUH70..LE,XLE202311

77512BRACKET, FUEL TANK, REAR

main77512-35140×3iAXUH7#202002-202210

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0E060iTXUA7#..ARL202210-202312

main77601-0E080iAXUH7#202002-202210

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E070iAXUH7#202002-202210

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77602-0E050iTXUA7#..ARL202210-202312

main77602-0E051iTXUA7#202410

TYPE B:REFER ILLUST.

main77602-0E090iAXUH78..RHD202210-202312

main77602-0E091iAXUH78;AXUH70..LE,XLE202410

TYPE B:REFER ILLUST.

77613BOLT, FUEL TANK BAND SET

main90119-A0430iAXUH7#,GSU7#202002-202210

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-A0509×2iAXUH78,TXUA7#;AXUH70..LE,XLE202311

77642APROTECTOR, FUEL TANK, NO.2

main77642-0E020iAXUH7#202002-202210

main77642-0E030iTXUA7#202311

77656BCUSHION, FUEL TANK, NO.6

main77656-06030×5iTXUA7#202311

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0E010iAXUH7#..LHD202210-202311

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-42040iAXUH78,TXUA7#..RHD202210-202312

8202

90119A0107

main90119-A0107

90119A0396

main90119-A0396

90119A0430

main90119-A0430

90466A0013

main90466-A0013

9046717021

main90467-17021

9054109151

main90541-09151

42 parts on this diagram · 9 diagrams in section
