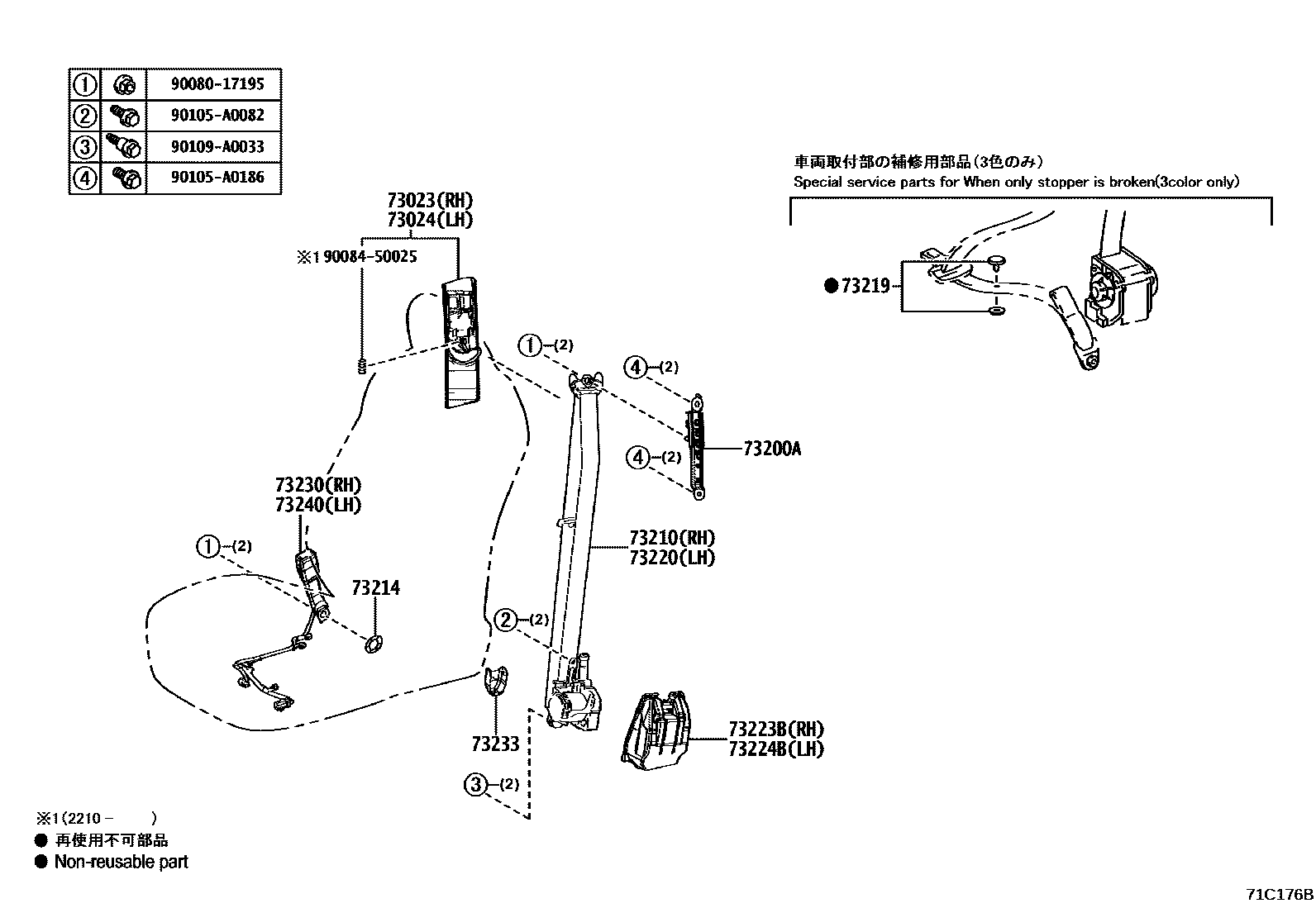

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0E020-B0iAXUH7#..(LE,XLE)..GCC; AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)202002-202210

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#

main73023-0E020-C0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202210

BLACK,TRIM41

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0E020-B0iAXUH7#..(LE,XLE)..GCC; AXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS); AXUH78,TXUA75..LHD..LIMD..(EUR,RUS)202210-202311

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,2#,40

main73024-0E020-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS); AXUH78..LIMD..EUR; AXUH78..LIMD..GCC202311

BLACK,TRIM41; BLACK,TRIM41,42; BLACK,TRIM42

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020×2iAXUH7#,GSU75202002-202011

main73200-0R010×2iAXUH70..LIMD202311-202410

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E160-A2iAXUH7#..LIMD..GCC;AXUH78,GSU75..(LE,XLE)..(EUR,RUS)202002-202208

IVORY,TRIM4#

main73210-0E160-B2iAXUH7#,GSU7#202002-202208

GRAY,TRIM1#

main73210-0E160-C1iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202208

BLACK,BLACK,BLACK,TRIM2#,41

main73210-0E161-A2iAXUH7#..LIMD..GCC;AXUH78,GSU75..(LE,XLE)..(EUR,RUS); AXUH78,GSU7#..LE..ARL; AXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202209-202210

IVORY,TRIM4#; IVORY,TRIM40; LEATHER PACKAGE,IVORY,TRIM4#

main73210-0E161-B2iAXUH78,TXUA7#..RHD202210-202312

GRAY,TRIM1#

main73210-0E161-C1iAXUH7#,TXUA7#..LE,XLE; AXUH78,TXUA7#..LIMD..(ARL,RUS); AXUH78..LIMD..EUR; AXUH78..LIMD..GCC202311

BLACK,TRIM2#; BLACK,TRIM2#,41; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010×2iAXUH7#,TXUA75..LHD202210-202311

(L)

main73214-75010×2iAXUH78,TXUA7#;AXUH70..LE,XLE202311

(J)

73219STOPPER, TONGUE PLATE

main73219-33010iAXUH70..LIMD202311-202410

BLACK

main73219-33020iAXUH78,TXUA7#;AXUH70..LE,XLE202311

GRAY

main73219-33030iAXUH78,TXUA7#;AXUH70..LE,XLE202311

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0E140-A0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202208

IVORY,TRIM40

main73220-0E140-B0iAXUH7#,GSU7#202002-202208

GRAY,TRIM1#

main73220-0E140-C0iAXUH70;AXUH78..LIMD..GCC;AXUH78,GSU7#..LE,XLE202002-202208

BLACK,TRIM2#

main73220-0E141-A0iAXUH7#..LIMD..GCC;AXUH78,GSU75..(LE,XLE)..(EUR,RUS); AXUH78,GSU7#..LE..ARL; AXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202209-202210

IVORY,TRIM4#; IVORY,TRIM40; LEATHER PACKAGE,IVORY,TRIM4#

main73220-0E141-B0iAXUH78,TXUA7#;AXUH70..LE,XLE202311

GRAY,TRIM1#

main73220-0E141-C0iAXUH7#,TXUA7#..LE,XLE; AXUH78,TXUA7#..LIMD..(ARL,RUS); AXUH78..LIMD..EUR; AXUH78..LIMD..GCC202311

BLACK,TRIM2#; BLACK,TRIM2#,41; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E050iAXUH7#,TXUA75..LHD202210-202311

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E040iAXUH7#,TXUA75..LHD202210-202311

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E260-B0iAXUH70..LE,XLE;AXUH78..LE..GCC; AXUH78..XLE..GCC202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main73230-0E260-C0iAXUH70..LE,XLE;AXUH78..LE..GCC; AXUH78..XLE..GCC202210-202311

BLACK,TRIM13,2#; BLACK,TRIM2#

main73230-0E260-E0iAXUH78,GSU75..LHD..LIMD..(EUR,RUS)202003-202110

NEUTRAL BEIGE,TRIM40

main73230-0E300-B0supersedes 73230-0E280-B0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..RHD..LIMD202210-202312

GRAY,TRIM1#; LEATHER PACKAGE,GRAY,TRIM1#

main73230-0E300-C0supersedes 73230-0E280-C0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..LIMD..ARL; AXUH78..RHD..EUR202401

BLACK,TRIM2#,41; BLACK,TRIM2#,41,42; LEATHER PACKAGE,BLACK,TRIM2#

main73230-0E300-E0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..RHD..LIMD202401

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73230-0E450-B0iAXUH70..LIMD202311-202410

GRAY,TRIM1#

main73230-0E450-C0iAXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS); AXUH78,TXUA75..LHD..LIMD..(EUR,RUS); AXUH78..XLE..GCC202210-202311

BLACK,TRIM2#; BLACK,TRIM2#,41; HYBRID SPECIAL EDITION,BLACK,TRIM1#

main73230-0E450-E0iAXUH70..LIMD202311-202410

NEUTRAL BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1×2iAXUH7#..(LE,XLE)..GCC; AXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E270-B0iAXUH78,GSU7#..LE..ARL202011-202210

GRAY,TRIM1#

main73230-0E270-C0iAXUH78,GSU7#..LE..ARL202011-202210

BLACK,TRIM2#

main73230-0E270-E0iAXUH78,GSU7#..RHD..LIMD; AXUH78..RHD..XLE202011-202110

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73230-0E290-B0iAXUH70..LIMD202311-202410

GRAY,TRIM1#

main73230-0E290-C0iAXUH7#,TXUA75..LHD..(LE,XLE); AXUH78..LHD..LIMD..EUR; AXUH78..LIMD..GCC; TXUA75..LIMD..RUS202311

BLACK,TRIM2#; BLACK,TRIM2#,41; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

main73230-0E290-E0iAXUH78,TXUA75..(LE,XLE)..(EUR,RUS); AXUH78,TXUA75..LHD..LIMD202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73230-0E460-B0supersedes 73230-0E270-B0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..RHD..LIMD202401

GRAY,TRIM1#; LEATHER PACKAGE,GRAY,TRIM1#

main73230-0E460-C0supersedes 73230-0E270-C0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..RHD..LIMD202210-202312

BLACK,TRIM2#,41; LEATHER PACKAGE,BLACK,TRIM2#

main73230-0E460-E0iAXUH78,TXUA7#..LE..ARL; AXUH78,TXUA7#..RHD..LIMD202401

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

9008017195

main90080-17195

9008450025

main90084-50025

90105A0082

main90105-A0082

90105A0186

main90105-A0186

90109A0033

main90109-A0033

17 parts on this diagram · 3 diagrams in section
