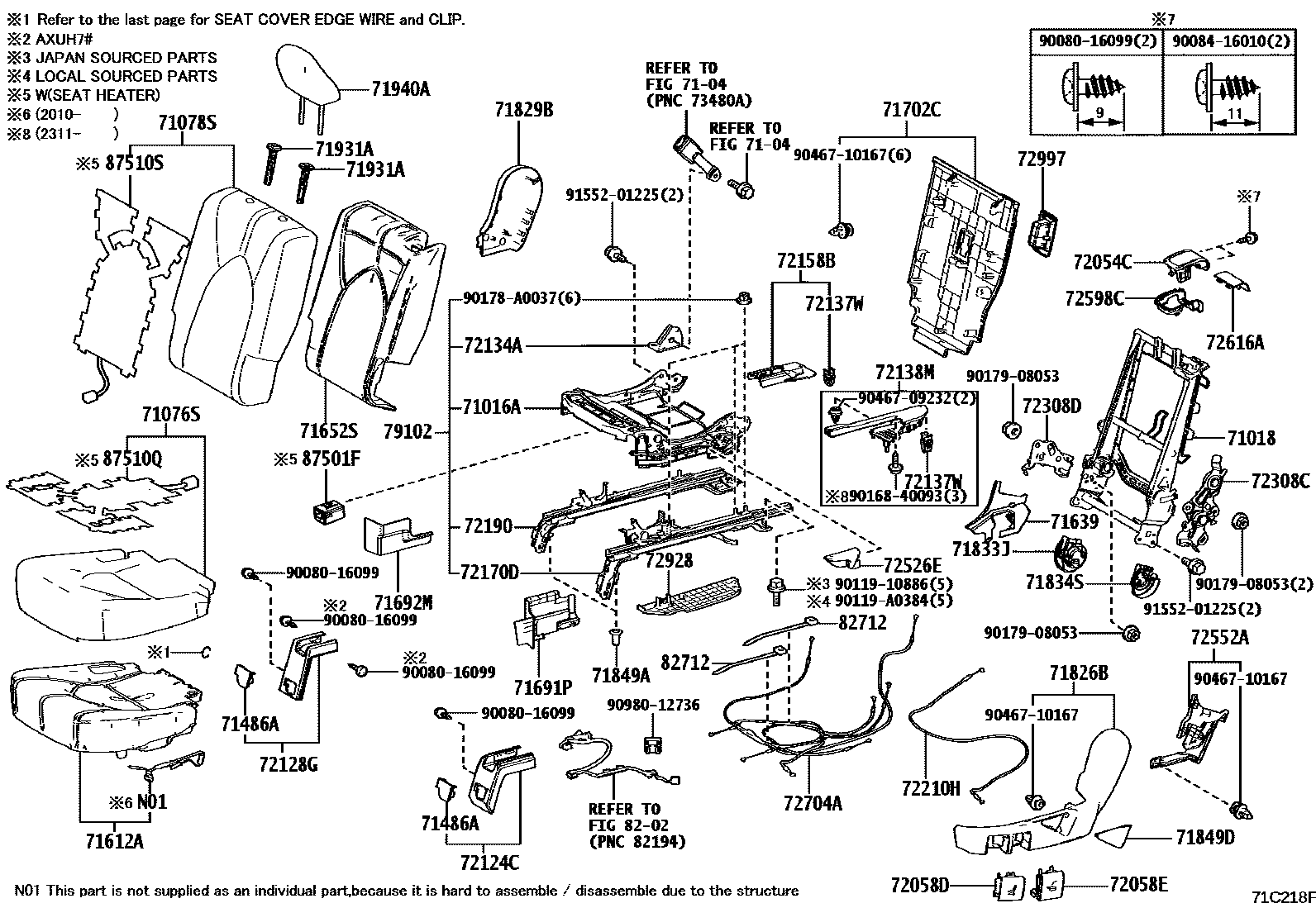

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-0E110i202002-202210

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0E140i202311-202410

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-0E410-B3i202002-202110

GRAY,TRIM1#

main71076-0E410-C3i202002-202110

BLACK,TRIM2#

main71076-0E411-B4i202110-202210

GRAY,TRIM1#

main71076-0E411-C4i202110-202210

BLACK,TRIM2#

main71076-0E412-B4i202311

GRAY,TRIM1#

main71076-0E412-C4i202311

BLACK,TRIM2#

main71076-0E420-B4i202003-202110

GRAY,TRIM1#

main71076-0E420-B7i202110-202210

GRAY,TRIM1#; LEATHER PACKAGE,GRAY,TRIM1#

main71076-0E420-C4i202003-202110

BLACK,TRIM2#

main71076-0E420-C6i202110-202210

BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#

main71076-0E420-E4i202003-202110

NEUTRAL BEIGE,TRIM4#

main71076-0E420-E7i202110-202210

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#

main71076-0E421-B7supersedes 71076-0E411-B4i202210-202311

GRAY,TRIM1#

main71076-0E421-C6supersedes 71076-0E411-C4i202210-202311

BLACK,TRIM2#

main71076-0E421-E7i202210-202311

NEUTRAL BEIGE,TRIM4#

main71076-0E422-B7i202311

GRAY,TRIM1#

main71076-0E422-C6i202311

BLACK,TRIM2#

main71076-0E422-E7i202311

NEUTRAL BEIGE,TRIM4#

main71076-0E480-B5i202002-202110

GRAY,TRIM1#

main71076-0E480-B7i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; GRAY,TRIM1#; ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#; PLATINUM PACKAGE,GRAY,TRIM1#; TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#

main71076-0E480-C5i202002-202110

BLACK,TRIM2#

main71076-0E480-C7i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; BLACK,TRIM2#; CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#; PLATINUM PACKAGE,BLACK,TRIM2#; TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#

main71076-0E480-E9i202003-202110

OCHER,TRIM41

main71076-0E480-L0i202003-202110

NEUTRAL BEIGE,TRIM40

main71076-0E480-L3i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41; OCHER,TRIM41; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41; PLATINUM PACKAGE,OCHER,TRIM41; TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41; UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41

main71076-0E480-L4i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71076-0E500-B5i202011-202110

GRAY,TRIM1#

main71076-0E500-B7i202110-202210

GRAY,TRIM1#

main71076-0E500-C5i202011-202110

BLACK,TRIM2#

main71076-0E500-C7i202110-202210

BLACK,TRIM2#

main71076-0E500-E9i202012-202110

OCHER,TRIM41

main71076-0E500-L0i202012-202110

NEUTRAL BEIGE,TRIM40

main71076-0E500-L3i202110-202210

OCHER,TRIM41

main71076-0E500-L4i202110-202210

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main71076-0EA40-B0supersedes 71076-0EA50-B0i202210-202311

GRAY,TRIM1#; PLATINUM PACKAGE,GRAY,TRIM1#

main71076-0EA40-C0supersedes 71076-0EA50-C0i202210-202311

BLACK,TRIM2#; PLATINUM PACKAGE,BLACK,TRIM2#

main71076-0EA40-E0i202210-202311

OCHER,TRIM41; PLATINUM PACKAGE,OCHER,TRIM41

main71076-0EA40-E1i202210-202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71076-0EA41-B0i202311

GRAY,TRIM1#; PLATINUM PACKAGE,GRAY,TRIM1#

main71076-0EA41-C0i202311

BLACK,TRIM2#; PLATINUM PACKAGE,BLACK,TRIM2#

main71076-0EA41-E0supersedes 71076-0EA51-E0i202411

OCHER,TRIM4#; PLATINUM PACKAGE,OCHER,TRIM4#

main71076-0EA41-E1i202311-202411

NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71076-0EA50-B0i202210-202312

GRAY,TRIM1#

main71076-0EA50-C0i202210-202312

BLACK,TRIM2#

main71076-0EA50-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main71076-0EA50-E1i202210-202312

OCHER,TRIM41

main71076-0EA51-B0i202311

GRAY,TRIM1#

main71076-0EA51-C0i202311

BLACK,TRIM2#

main71076-0EA51-E0i202401-202411

NEUTRAL BEIGE,TRIM40

main71076-0EA51-E1i202401-202411

OCHER,TRIM41

main71076-0EA60-E0i202210-202311

HYBRID SPECIAL EDITION,GRAY/OCHER,TRIM1#

main71076-0EA61-B1i202311

HYBRID SPECIAL EDITION,BLACK/MD.GRAY,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0E300-B3i202002-202007

GRAY,TRIM1#

main71078-0E300-B4i202007-202210

GRAY,TRIM1#

main71078-0E300-C3i202002-202007

BLACK,TRIM2#

main71078-0E300-C4i202210-202311

BLACK,TRIM2#

main71078-0E301-B4i202311

GRAY,TRIM1#

main71078-0E301-C4i202311

BLACK,TRIM2#

main71078-0E430-B4i202003-202007

GRAY,TRIM1#

main71078-0E430-B5i202007-202110

GRAY,TRIM1#

main71078-0E430-B6i202110-202210

GRAY,TRIM1#

main71078-0E430-C4i202003-202007

BLACK,TRIM2#

main71078-0E430-C5i202007-202110

BLACK,TRIM2#

main71078-0E430-C6i202210-202311

BLACK,TRIM2#

main71078-0E430-E4i202003-202007

NEUTRAL BEIGE,TRIM4#

main71078-0E430-E5i202007-202110

NEUTRAL BEIGE,TRIM4#

main71078-0E430-E6i202110-202210

NEUTRAL BEIGE,TRIM4#

main71078-0E431-B6i202311

GRAY,TRIM1#

main71078-0E431-C6i202311

BLACK,TRIM2#

main71078-0E431-E6i202311

NEUTRAL BEIGE,TRIM4#

main71078-0E470-B6i202002-202110

GRAY,TRIM1#

main71078-0E470-B7i202210-202311

GRAY,TRIM1#

main71078-0E470-C6i202002-202110

BLACK,TRIM2#

main71078-0E470-C7i202210-202311

BLACK,TRIM2#

main71078-0E470-E7i202002-202110

NEUTRAL BEIGE,TRIM4#

main71078-0E470-E8i202110-202210

NEUTRAL BEIGE,TRIM4#

main71078-0E471-B7i202311-202410

GRAY,TRIM1#

main71078-0E471-C7i202311

BLACK,TRIM2#

main71078-0E471-E8i202311

NEUTRAL BEIGE,TRIM4#

main71078-0E490-B4i202003-202110

GRAY,TRIM1#

main71078-0E490-B5i202210-202311

GRAY,TRIM1#

main71078-0E490-C4i202003-202110

BLACK,TRIM2#

main71078-0E490-C5i202110-202210

BLACK,TRIM2#

main71078-0E490-E7i202003-202110

OCHER,TRIM41

main71078-0E490-E8i202003-202110

NEUTRAL BEIGE,TRIM40

main71078-0E490-E9i202110-202210

OCHER,TRIM41

main71078-0E490-L0i202210-202311

NEUTRAL BEIGE,TRIM40

main71078-0E491-B5i202311

GRAY,TRIM1#

main71078-0E491-C5i202311

BLACK,TRIM2#

main71078-0E491-E9i202411

OCHER,TRIM4#

main71078-0E491-L0i202311-202411

NEUTRAL BEIGE,TRIM40

main71078-0E700-B1i202012-202210

GRAY,TRIM1#

main71078-0E700-C1i202012-202210

BLACK,TRIM2#

main71078-0E710-B2supersedes 71078-0E701-B1i202210-202311

GRAY,TRIM1#

main71078-0E710-C1i202011-202110

BLACK,TRIM2#

main71078-0E710-C2supersedes 71078-0E701-C1i202110-202210

BLACK,TRIM2#; LEATHER PACKAGE,BLACK,TRIM2#

main71078-0E710-E2i202110-202210

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#

main71078-0E711-B2i202311

GRAY,TRIM1#

main71078-0E711-C2i202311

BLACK,TRIM2#

main71078-0E711-E2i202311

NEUTRAL BEIGE,TRIM4#

main71078-0E750-B0i202011-202110

GRAY,TRIM1#

main71078-0E750-B1i202110-202210

GRAY,TRIM1#

main71078-0E750-C0i202011-202110

BLACK,TRIM2#

main71078-0E750-C1i202110-202210

BLACK,TRIM2#

main71078-0E750-E0i202011-202110

NEUTRAL BEIGE,TRIM4#

main71078-0E750-E1i202210-202311

NEUTRAL BEIGE,TRIM4#

main71078-0E780-B0i202012-202110

GRAY,TRIM1#

main71078-0E780-B1i202110-202210

GRAY,TRIM1#

main71078-0E780-C0i202012-202110

BLACK,TRIM2#

main71078-0E780-C1i202110-202210

BLACK,TRIM2#

main71078-0E780-E0i202012-202110

OCHER,TRIM41

main71078-0E780-E1i202012-202110

NEUTRAL BEIGE,TRIM40

main71078-0E780-E2i202110-202210

OCHER,TRIM41

main71078-0E780-E3i202210-202312

NEUTRAL BEIGE,TRIM40

main71078-0E781-B1i202401

GRAY,TRIM1#

main71078-0E781-C1i202401

BLACK,TRIM2#

main71078-0E781-E2i202411

OCHER,TRIM4#

main71078-0E781-E3i202401-202411

NEUTRAL BEIGE,TRIM40

main71078-0E710-B1i202012-202110

LEATHER PACKAGE,GRAY,TRIM1#

main71078-0E710-E1i202012-202110

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main71078-0E720-B0i202011-202110

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#; PLATINUM PACKAGE,GRAY,TRIM1#; TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#

main71078-0E720-B1i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#; ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#; PLATINUM PACKAGE,GRAY,TRIM1#; TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#; UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#

main71078-0E720-C0i202011-202110

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#; PLATINUM PACKAGE,BLACK,TRIM2#; TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#

main71078-0E720-C1i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#; ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#; PLATINUM PACKAGE,BLACK,TRIM2#; TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#; UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#

main71078-0E720-E0i202011-202110

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41; PLATINUM PACKAGE,OCHER,TRIM41; TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41; UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41

main71078-0E720-E1i202011-202110

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71078-0E720-E2i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41; ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41; PLATINUM PACKAGE,OCHER,TRIM41; TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41; UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41

main71078-0E720-E3i202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40; PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40; UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71078-0E721-B1supersedes 71078-0E751-B1i202311

PLATINUM PACKAGE,GRAY,TRIM1#

main71078-0E721-C1supersedes 71078-0E751-C1i202311

PLATINUM PACKAGE,BLACK,TRIM2#

main71078-0E721-E2supersedes 71078-0E751-E1i202411

PLATINUM PACKAGE,OCHER,TRIM4#

main71078-0E721-E3i202311-202411

PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40

main71078-0ED20-E0i202210-202311

HYBRID SPECIAL EDITION,GRAY/OCHER,TRIM1#

main71078-0ED21-B1i202311

HYBRID SPECIAL EDITION,BLACK/MD.GRAY,TRIM2#

71486ACOVER, REAR SEAT HINGE, NO.2 LH

main71486-0E070×2i202002-202210

71612APAD, REAR SEAT CUSHION, LH

main71504-0E010i202210-202312

main71504-0E011i202311

main71612-0E100i202210-202311

main71612-0E101i202311-202410

71639COVER, REAR SEAT CUSHION HINGE, LH

main71639-0E050-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71639-0E050-C0i202210-202311

BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,41

main71639-0E050-E0i202210-202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0E140i202210-202312

71691PCOVER, REAR SEAT CUSHION HINGE, UPPER RH NO.2

main71691-0E040-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71691-0E040-C0i202311

BLACK,TRIM2#; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

main71691-0E040-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

71692MCOVER, REAR SEAT CUSHION HINGE, UPPER LH NO.2

main71692-0E060-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71692-0E060-C0i202210-202311

BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,41

main71692-0E060-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0E010i202002-202210

71826BMOULDING, REAR SEAT CUSHION, LH

main71826-0E090-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71826-0E090-C0i202210-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main71826-0E090-E0i202311-202410

NEUTRAL BEIGE,TRIM4#

71829BMOULDING, REAR SEAT CUSHION, REAR LH

main71829-0E100-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71829-0E100-C0i202411

BLACK,TRIM2#,4#

main71829-0E100-E0i202210-202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

71833JCOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0E060i202210-202311

71834SCOVER, REAR SEAT RECLINING, NO.1 LH

main71834-0E070i202210-202311

71849ACAP, SEAT ADJUSTER COVER, LH

main71848-0E070×2i202002-202107

71849DCAP, SEAT ADJUSTER COVER, LH

main71849-0E010-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main71849-0E010-C0i202311-202410

BLACK,TRIM2#

main71849-0E010-E0i202210-202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

71931ASUPPORT, REAR SEAT HEADREST

main71930-0R070-B1×3i202002-202210

W(LOCK),GRAY,TRIM1#

main71930-0R070-C0×3i202210-202311

W(LOCK),BLACK,TRIM13,2#; W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,41

main71930-0R070-E1×3i202210-202312

W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; W(LOCK),NEUTRAL BEIGE,TRIM40

main71931-0R050-B1×3i202210-202311

W/O(LOCK),GRAY,TRIM1#; W/O(LOCK),GRAY,TRIM10

main71931-0R050-C0×3i202210-202311

W/O(LOCK),BLACK,TRIM13,2#; W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,41

main71931-0R050-E1×3i202210-202312

W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#; W/O(LOCK),NEUTRAL BEIGE,TRIM40

71940AHEADREST ASSY, REAR SEAT

main71940-0E170-B0×2i202210-202311

GRAY,TRIM1#

main71940-0E170-C0×2i202210-202311

BLACK,TRIM2#

main71940-0E340-B5×2supersedes 71940-0E170-B0i202110-202210

GRAY,TRIM1#

main71940-0E340-C1×2supersedes 71940-0E170-C0i202210-202311

BLACK,TRIM2#

main71940-0E340-E6×2i202110-202210

NEUTRAL BEIGE,TRIM4#

main71940-0E400-A0×2i202311-202410

NEUTRAL BEIGE/IVORY,TRIM4#

main71940-0E400-B0×2i202311

BLACK/GRAY,TRIM2#

main71940-0E400-B1×2i202210-202311

GRAY/GRAY,TRIM1#

main71940-0E400-E1×2i202003-202210

OCHER/BROWN,TRIM41

main71940-0E400-B3×2i202311

HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#

main71940-0E400-E2×2i202210-202311

HYBRID SPECIAL EDITION,GRAY/OCHER,TRIM1#

72054CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

main72054-0E030-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main72054-0E030-C0i202210-202311

BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,41

main72054-0E030-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

72058DLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72058-0E070-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main72058-0E070-C0i202210-202311

BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,41

main72058-0E070-E0i202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

72058ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2

main72058-0E080-B0i202002-202009

GRAY,TRIM1#

main72058-0E080-C0i202003-202009

BLACK,TRIM2#,41

main72058-0E080-E0i202003-202009

NEUTRAL BEIGE,TRIM40

main72058-0E081-B0i202010-202110

GRAY,TRIM1#

main72058-0E081-C0i202010-202110

BLACK,TRIM2#; BLACK,TRIM2#,41

main72058-0E081-E0i202010-202110

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main72058-0E082-B0i202210-202312

GRAY,TRIM1#

main72058-0E082-C0i202110-202210

BLACK,TRIM2#; BLACK,TRIM2#,41

main72058-0E082-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-0E120i202311

72128GCOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-0E130i202311

main72128-0E140i202311

72134ABRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH

main72134-0E020i202311-202410

72137WCLIP (FOR SEAT TRACK COVER LH)

main67773-07020×6i202002-202210

72138MCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72138-0E150i202002-202210

72158BCOVER, SEAT TRACK BRACKET, INNER LH

main72158-0E140i202311-202410

72170DTRACK ASSY, REAR SEAT, OUTER LH

main72170-0E110i202002-202210

72190TRACK ASSY, REAR SEAT INNER, LH

main72190-0E100i202210-202311

main72190-0E110i202002-202210

72210HCABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH

main72210-0E080i202002-202210

72308LINK SUB-ASSY, RECLINING CONTROL, LH

main72308-0E090i202002-202210

72308CLINK SUB-ASSY, RECLINING CONTROL, LH NO.1

main72308-0E070i202002-202210

72308DLINK SUB-ASSY, RECLINING CONTROL, LH NO.2

main72308-0E080i202210-202311

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0E060-B0i202002-202110

GRAY,TRIM1#

main72526-0E060-C0i202002-202110

BLACK,TRIM2#

main72526-0E060-E0i202003-202110

NEUTRAL BEIGE,TRIM40

main72526-0E061-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main72526-0E061-C0i202311

BLACK,TRIM2#; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

main72526-0E061-E0i202210-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

72552ACOVER, RECLINING HINGE, LH

main72552-0E020-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main72552-0E020-C0i202311

BLACK,TRIM2#; BLACK,TRIM2#,41,42; BLACK,TRIM2#,42

main72552-0E020-E0i202210-202311

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

72598CBEZEL, RECLINING REMOTE CONTROL, LH

main72598-0E060i202002-202210

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-0E130-B0i202210-202311

GRAY,TRIM1#; GRAY,TRIM10

main72615-0E130-C0i202210-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main72615-0E130-E0i202311-202411

NEUTRAL BEIGE,TRIM40

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-0E220×2i202002-202210

72928COVER, REAR SEAT CUSHION UNDER, LH

main72928-0E010i202311

72997COVER, REAR SEATBACK, LH

main72996-0E150-C0i202002-202210

BLACK,TRIM2#

79102FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

main79102-0E100i202311

main79102-0E180i202311-202410

8202WIRING & CLAMP

→ Go to FIG 82-02

82712CLAMP, WIRING HARNESS

main82711-22270×4i202210-202311

87501FCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-0R030i202002-202210

87510QHEATER ASSY, SEAT

main87510-0E240i202002-202210

87510SHEATER ASSY, SEAT

main87530-0E200i202002-202210

9008016099

main90080-16099

9008416010

main90084-16010

9011910886

main90119-10886

90119A0384

main90119-A0384

9016840093

main90168-40093

90178A0037

main90178-A0037

9017908053

main90179-08053

9046709232

main90467-09232

9046710167

main90467-10167

9098012736

main90980-12736

9155201225

main91552-01225

REAR SEAT & SEAT TRACK
