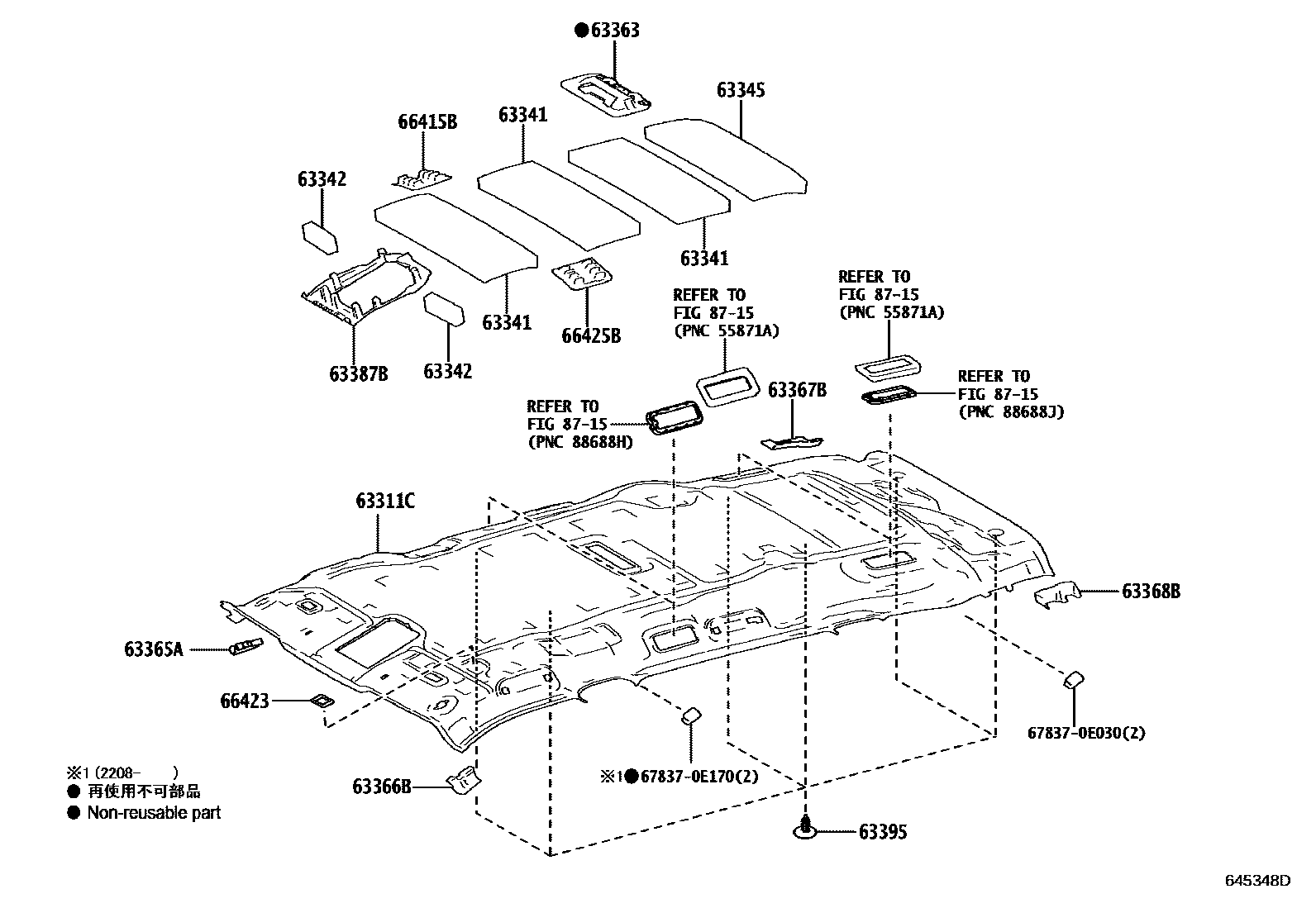

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF 0004 1PANORAMA ROOF 0005 1 0006 1MOON ROOF 0007 1PANORAMA ROOF

63311CHEADLINING, ROOF

main63310-0E460-B0iAXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)202003-202210

LT. GRAY,TRIM1#,2#,4#

main63310-0E460-B0iAXUH7#..LE..GCC202002-202210

LT. GRAY,TRIM1#,2#

main63310-0E460-B0iAXUH78..LIMD..EUR202011-202210

LT. GRAY,TRIM1#,2#,40

main63310-0E460-C0iAXUH78..LIMD..EUR202011-202210

BLACK,TRIM41

main63310-0E490-B0iAXUH7#..LIMD..GCC202002-202210

LT. GRAY,TRIM1#,2#,4#

main63310-0E490-B0iAXUH7#..XLE..GCC202002-202210

LT. GRAY,TRIM1#,2#

main63310-0E490-B0iAXUH78,GSU7#..LIMD..ARL202012-202210

LT. GRAY,TRIM1#,2#,40

main63310-0E490-C0iAXUH78,GSU7#..LIMD..ARL202012-202210

BLACK,TRIM41

main63310-0E520-B0iGSU75..LIMD..RUS202003-202210

LT. GRAY,TRIM1#,2#,40

main63310-0E520-C0iGSU75..LIMD..RUS202003-202210

BLACK,TRIM41

main63310-0EA60-B0iAXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202210-202309

LT. GRAY,TRIM1#,2#,40

main63310-0EA60-B0iAXUH7#..LE..GCC202210-202309

LT. GRAY,TRIM1#,2#

main63310-0EA60-B0iAXUH7#..LE..GCC202210-202309

LT. GRAY,TRIM1#,2#,4#

main63310-0EA60-C0iAXUH78..LIMD..EUR202210-202309

BLACK,TRIM41

main63310-0EA70-B0iAXUH7#..LIMD..GCC202210-202309

LT. GRAY,TRIM1#,2#

main63310-0EA70-B0iAXUH7#..LIMD..GCC202210-202309

LT. GRAY,TRIM1#,2#,40

main63310-0EA70-B0iAXUH7#..XLE..GCC202210-202309

LT. GRAY,TRIM1#,2#,4#

main63310-0EA70-C0iAXUH78,TXUA7#..LIMD..ARL202210-202309

BLACK,TRIM41

main63310-0EA80-B0iTXUA75..LIMD..RUS202210-202309

LT. GRAY,TRIM1#,2#,40

main63310-0EA80-B0iTXUA75..LIMD..RUS202210-202309

MOON ROOF-WITH(PANORAMA ROOF),LT. GRAY,TRIM1#,2#,4#

main63310-0EA80-B0iTXUA75..LIMD..RUS202210-202309

MOON ROOF-WITH(PANORAMA ROOF),LT. GRAY,TRIM1#,2#,40

main63310-0EA80-C0iTXUA75..LIMD..RUS202210-202309

BLACK,TRIM41

main63310-0EA80-C0iTXUA75..LIMD..RUS202210-202309

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41

main633C0-0EJ10-B0iAXUH78..LIMD..EUR202309-202311

LT GRAY,TRIM1#,2#

main633C0-0EJ10-B0iAXUH78..LIMD..EUR202309-202312

LT GRAY,TRIM1#,2#,40

main633C0-0EJ10-B0iAXUH78..LIMD..EUR202309-202312

LT GRAY,TRIM1#,2#,4#

main633C0-0EJ10-C0iAXUH78..LIMD..EUR202309-202312

BLACK,TRIM41

main633C0-0EJ10-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41,42

main633C0-0EJ30-B0iAXUH7#..XLE..GCC202309-202311

LT GRAY,TRIM1#,2#

main633C0-0EJ30-B0iAXUH7#..XLE..GCC202309-202410

LT GRAY,TRIM1#,2#,4#

main633C0-0EJ30-B0iAXUH78,TXUA7#..LIMD..ARL202309-202312

LT GRAY,TRIM1#,2#,40

main633C0-0EJ30-C0iAXUH78,TXUA7#..LIMD..ARL202401

BLACK,TRIM42

main633C0-0EJ30-C0iAXUH78,TXUA7#..LIMD..ARL202309-202312

BLACK,TRIM41

main633C0-0EJ50-B0iTXUA75..LIMD..RUS202309-202311

MOON ROOF-WITH(PANORAMA ROOF),LT GRAY,TRIM1#,2#,4#

main633C0-0EJ50-B0iTXUA75..LIMD..RUS202309-202311

LT GRAY,TRIM1#,2#,40

main633C0-0EJ50-B0iTXUA75..LIMD..RUS202311

MOON ROOF-WITH(PANORAMA ROOF),LT GRAY,TRIM1#,2#,40

main633C0-0EJ50-C0iAXUH78..LIMD..EUR202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41,42

main633C0-0EJ50-C0iAXUH78..LIMD..GCC202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM42

main633C0-0EJ50-C0iAXUH78..LIMD..GCC202309-202311

BLACK,TRIM41

63341PAD, ROOF SILENCER, NO.1

main63341-0E130iAXUH78..EUR;AXUH7#,GSU7#..LE202002-202309

63342PAD, ROOF SILENCER, NO.2

main63341-0E140iAXUH78..EUR;AXUH7#,TXUA7#..LE202002-202309

63345PAD, ROOF SILENCER, NO.5

main63341-0E130iAXUH7#..LIMD,XLE202002-202009

main63341-0E270iGSU75..LE..RUS;AXUH7#,GSU7#..ARL,EUR,GCC202009-202309

63363SUPPORT, ROOF HEADLINING, NO.3

main63369-0E060iAXUH78..EUR;AXUH7#,GSU7#..LE202002-202309

main63369-0E070iAXUH7#,GSU7#..(LIMD,XLE)..(ARL,GCC)202002-202309

63365APLATE, ROOF HEADLINING SET

main63365-0E030iAXUH7#,TXUA7#202002-202309

63366BPLATE, ROOF HEADLINING SET, LH

main63366-0E030iAXUH7#,GSU7#202002-202309

63367BPLATE, ROOF HEADLINING SET, NO.2 RH

main63367-0E080iAXUH7#,GSU7#202002-202309

63368BPLATE, ROOF HEADLINING SET, NO.2 LH

main63368-0E080iAXUH7#,TXUA7#202002-202309

63387BBRACKET, ROOF HEADLINING RETAINER

main63387-0E110iAXUH78..EUR;AXUH7#,GSU7#..LE202002-202309

main63387-0E130iAXUH78..LIMD..EUR202210-202309

MOON ROOF-WITH(PANORAMA ROOF)

main63387-0E130iAXUH7#,GSU7#..(LIMD,XLE)..(ARL,GCC,RUS)202002-202210

63395CLIP, ROOF HEADLINING TRIM

main63395-0E020-B1iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202002-202410

LT.GRAY,TRIM1#,2#,4#

main63395-0E020-B1iAXUH7#..LIMD..GCC202002-202410

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,4#

main63395-0E020-B1iAXUH7#..LIMD..GCC202002-202311

LT.GRAY,TRIM1#,2#

main63395-0E020-B1iGSU75..LIMD..RUS202003-202312

LT.GRAY,TRIM1#,2#,40

main63395-0E020-B1iAXUH78,GSU7#..LIMD..(ARL,EUR)202011-202312

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40

main63395-0E020-B1iAXUH78,GSU7#..LIMD..(ARL,EUR)202011-202210

MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,40

main63395-0E020-C1iAXUH78..LIMD..EUR202011-202312

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41

main63395-0E020-C1iAXUH78,GSU7#..LIMD..(ARL,EUR)202011-202210

MOON ROOF-WITH,BLACK,TRIM41

main63395-0E020-C1iAXUH78,GSU7#..LIMD..(ARL,EUR)202003-202312

BLACK,TRIM41

main63395-0E020-C1iAXUH78..LIMD..GCC202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM42

main63395-0E020-C1iAXUH78..LIMD..GCC202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41,42

main63395-0E020-C1iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

main63395-0E020-C1iAXUH78,TXUA7#..LIMD..ARL202401

BLACK,TRIM42

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-0E060iAXUH78..EUR;AXUH7#,TXUA7#..LE202002-202309

66423SPACER, SIDE RAIL, FRONT LH

main66423-0E050iAXUH7#,TXUA7#202210-202309

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-0E060iAXUH78..EUR;AXUH7#,TXUA7#..LE202002-202309

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

678370E030PROTECTOR, FRONT DOOR SERVICE HOLE COVER

main67837-0E030

678370E170PROTECTOR, FRONT DOOR SERVICE HOLE COVER

main67837-0E170

17 parts on this diagram · 6 diagrams in section
